WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

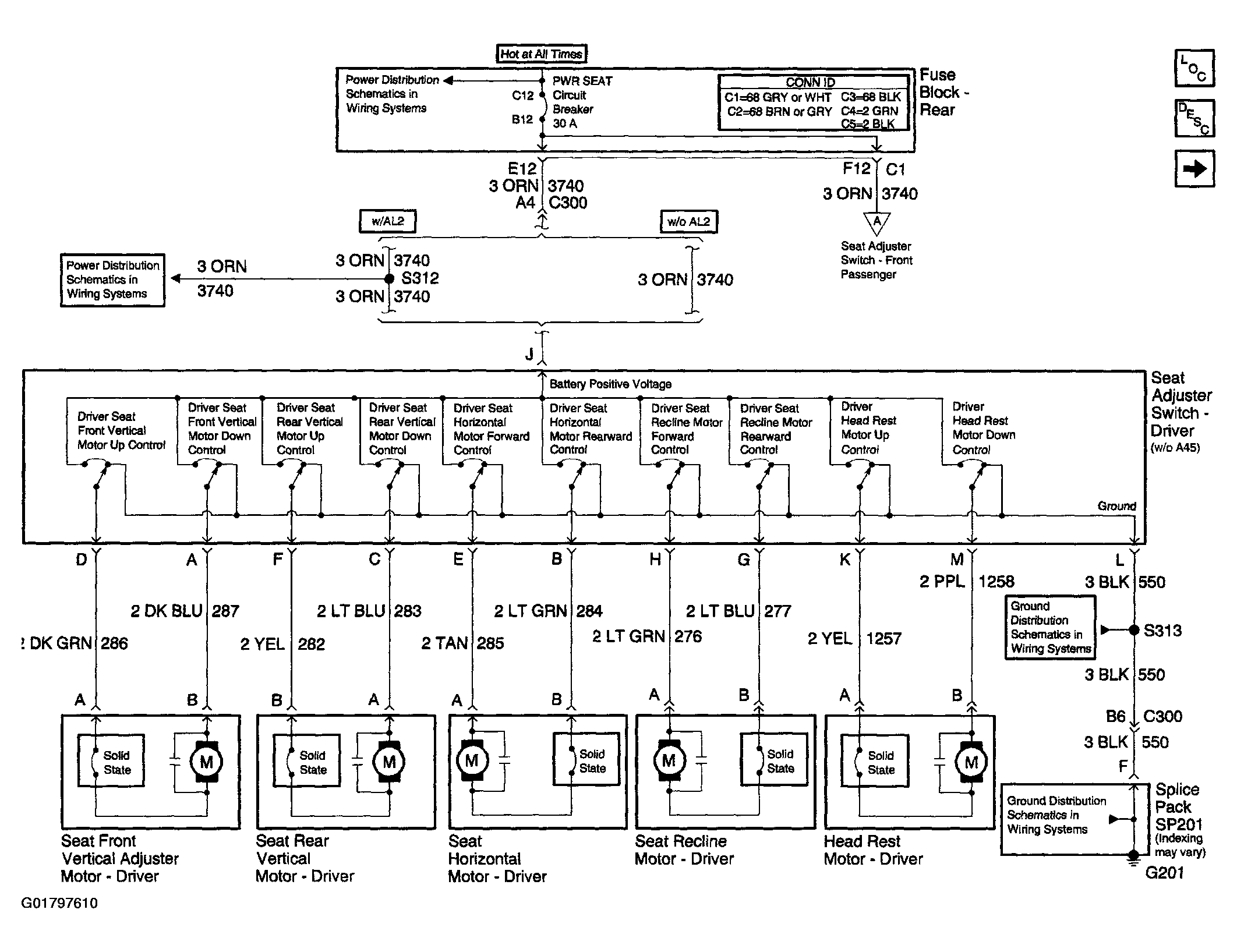

Fig 1: Power Seats Schematics (Seat Adjuster Switch - Driver)
Courtesy of GENERAL MOTORS CORP.

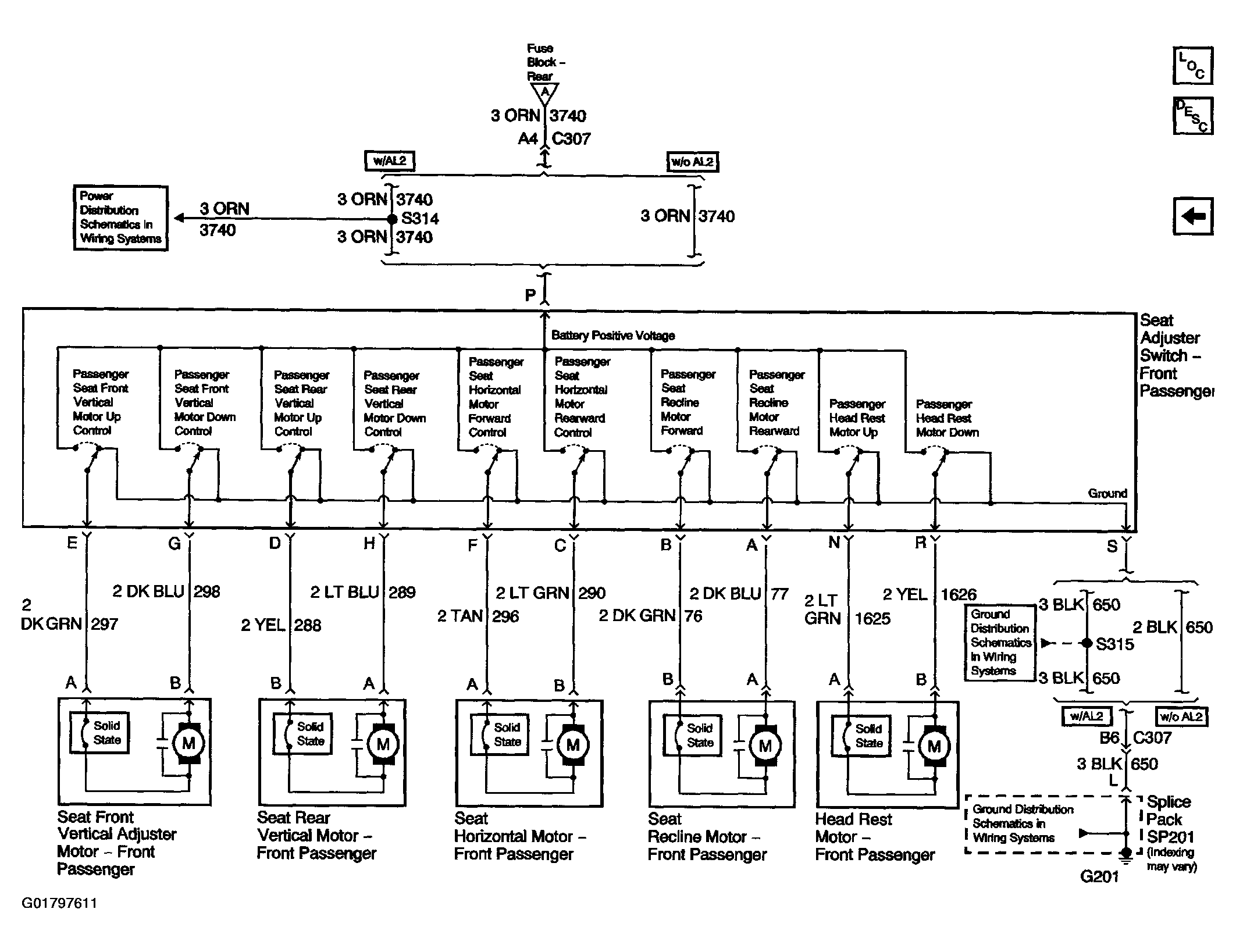

Fig 2: Power Seats Schematics (Seat Adjuster Switch - Front Passenger)
