Lumbar Support Schematics

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

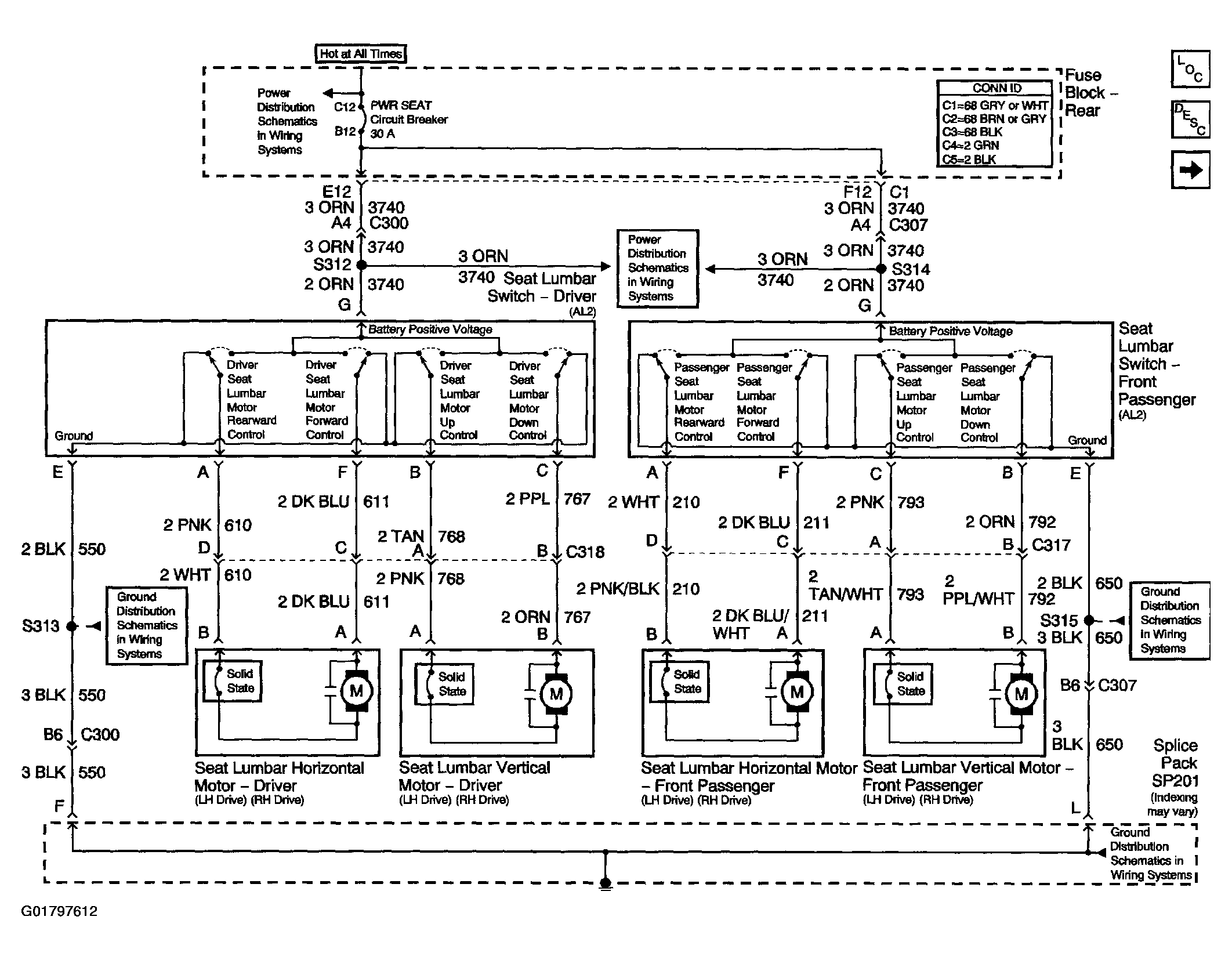

Fig 1: Lumbar Support Schematics (Seat Lumbar Switch - Driver & Front Passenger)

Courtesy of GENERAL MOTORS CORP.

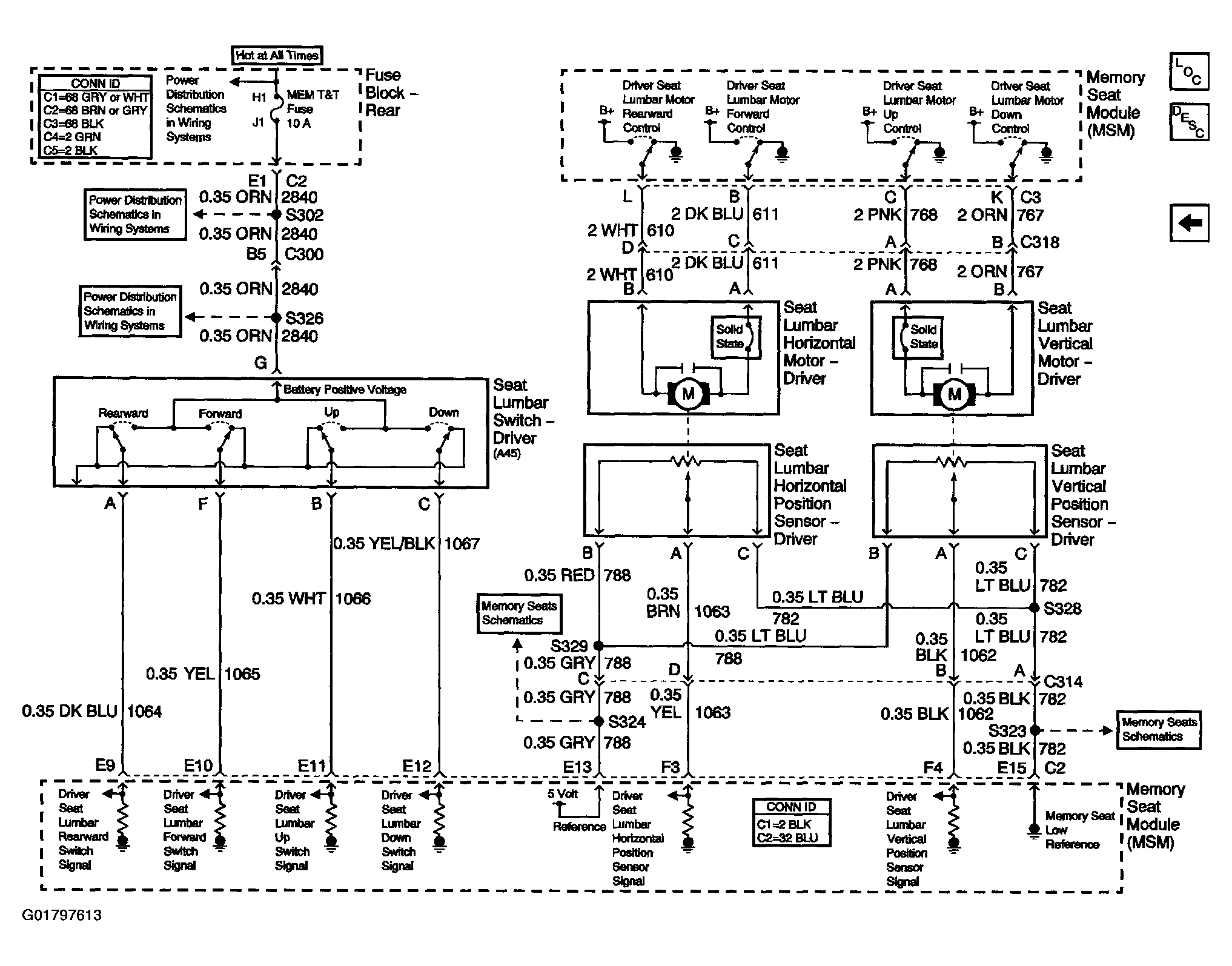

Fig 2: Lumbar Support Schematics (Seat Lumbar Switch - Driver & Memory Seat Module)

Courtesy of GENERAL MOTORS CORP.
