Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

With the aid from an assistant, install the seat into the vehicle
Engage the front seat tracks into the slots in the floor pan.

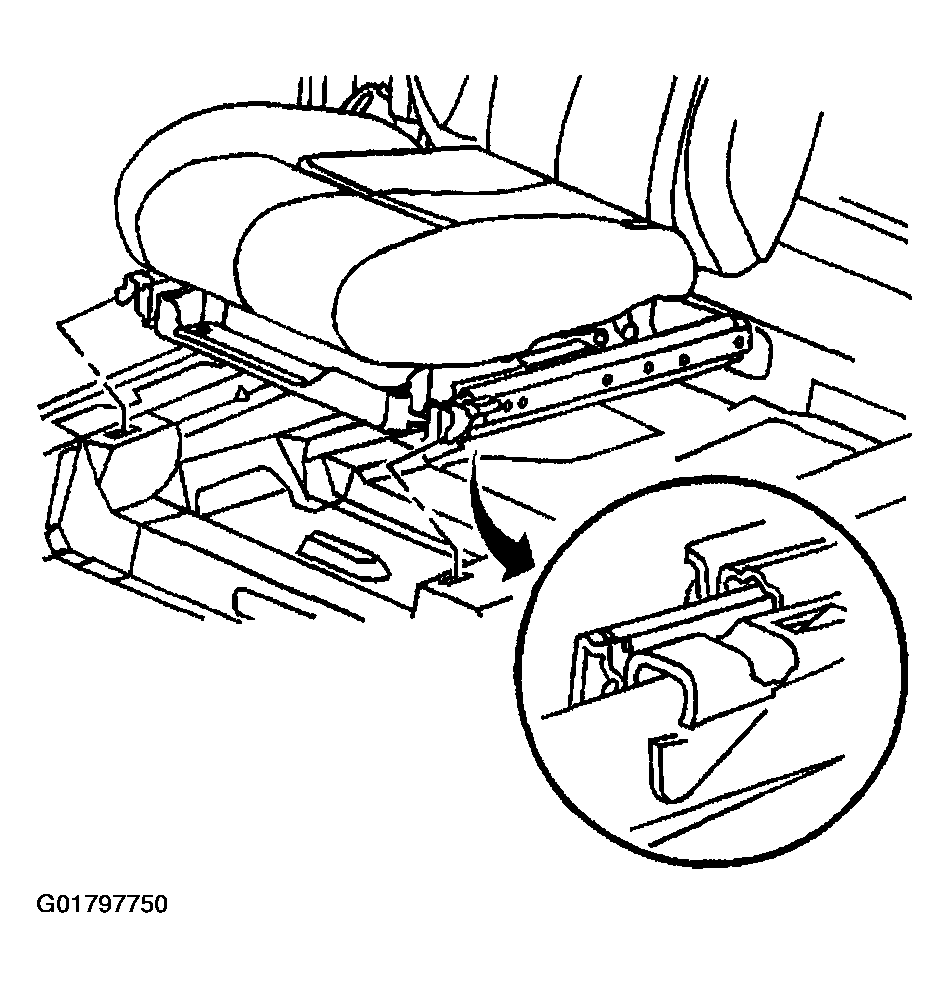

Fig 1: Engaging Front Seat Tracks
Courtesy of GENERAL MOTORS CORP.
With seat tilted forward, connect the electrical connectors.

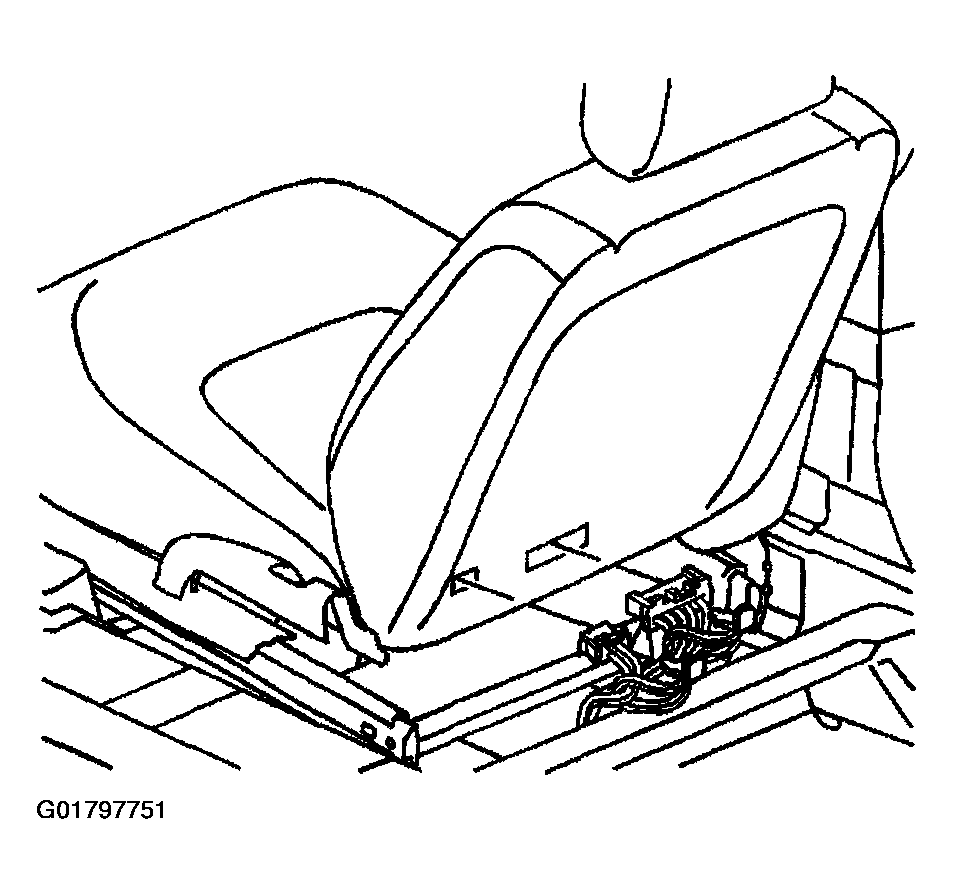

Fig 2: Locating Electrical Connectors
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .

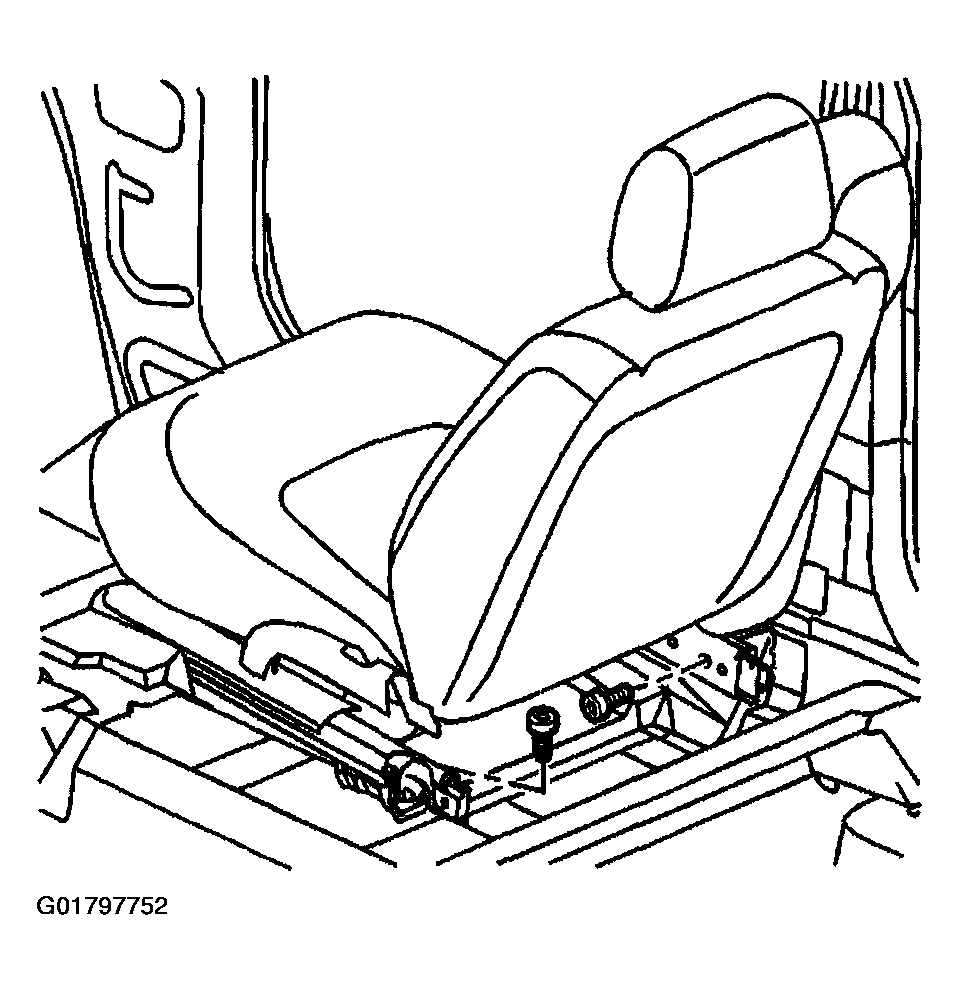

Fig 3: Seat Anchor Bolts

Courtesy of GENERAL MOTORS CORP.

Lower the rear of the seat and tighten the outer anchor bolt first, then the inner anchor bolt last.
Tighten

Tighten the seat anchor bolts to 41 N.m (30 lb ft).

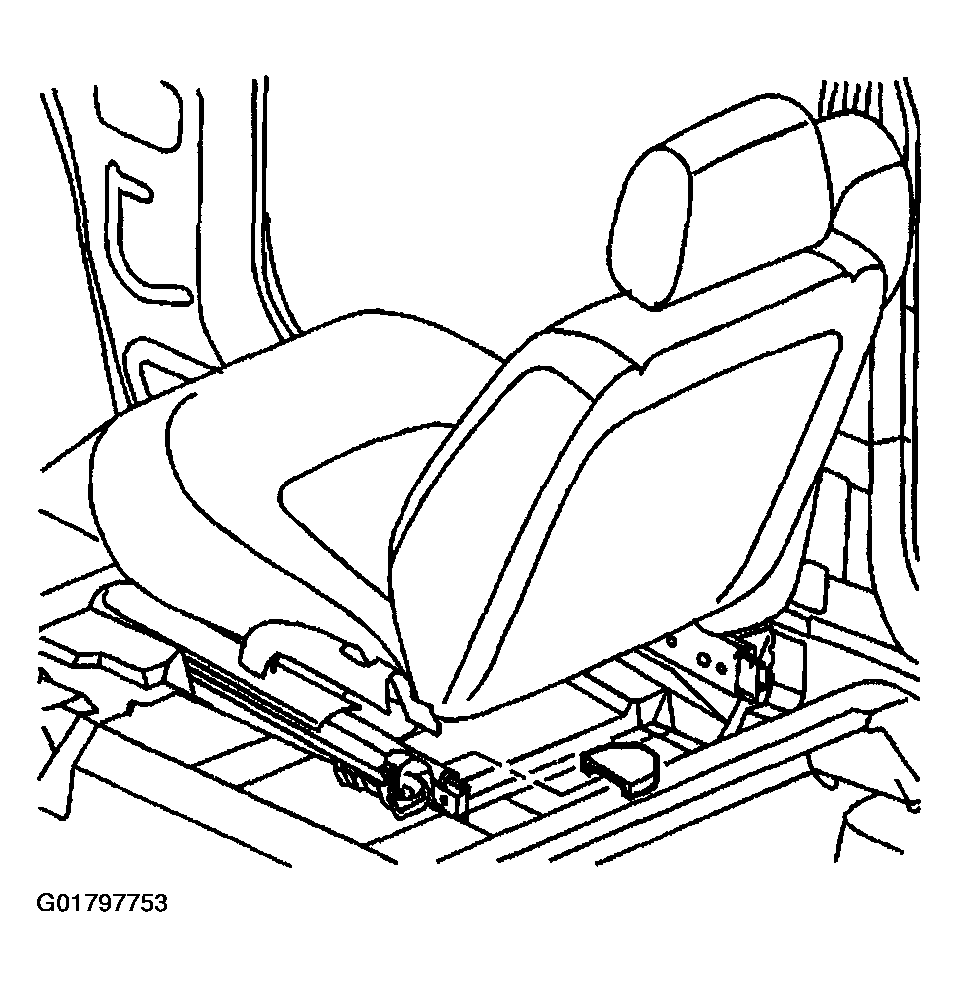

Fig 4: Seat Track Fastener Adjuster Covers

Courtesy of GENERAL MOTORS CORP.

Install the inner seat track adjuster trim cover.
Move the seat to the full rearward and upward position.
Install the front seat storage tray. Refer to Storage Tray Replacement - Front Seat .
Enable the SIR System. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
