Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

Important: The upper and center trim cover retainers break easily.

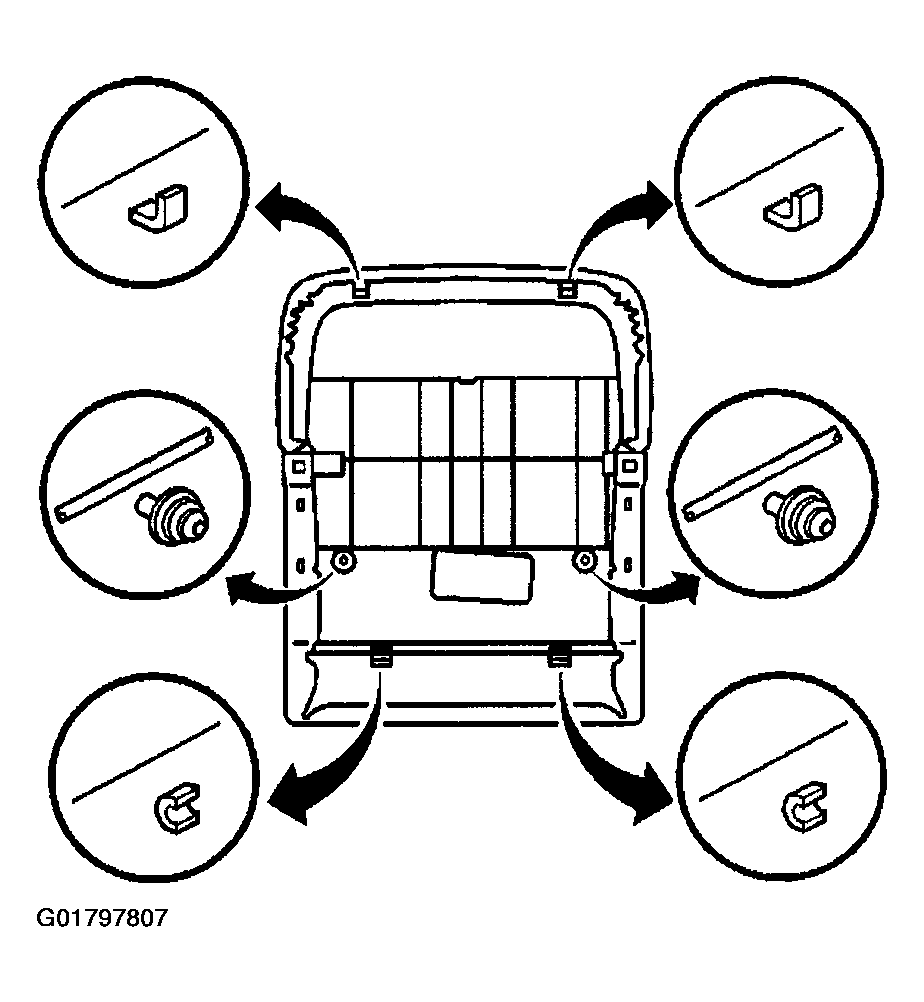

Fig 1: Seat Back Panel

Courtesy of GENERAL MOTORS CORP.

Pull outward on the bottom of the seat back trim cover in order to release the lower retainer clips.
Use the J 38778 in order to release the center trim cover retainers.
Push inward at the top of the seat back trim cover, then carefully pull seat back trim cover straight down in order to release upper trim cover retainer clips.
