Installation Procedure
WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

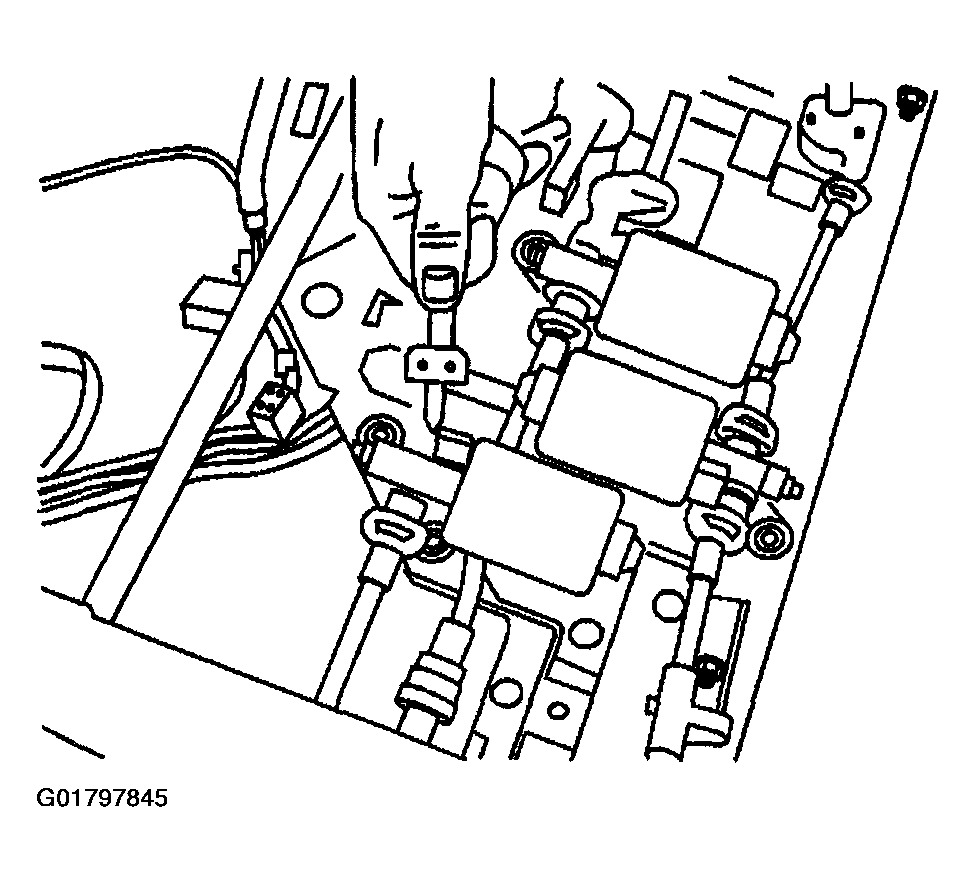

- Install the cable or cable/sensor assembly by pushing the ends into the fittings until the clip snaps into place.
- If the cable is equipped with a position sensor, install the sensor retention clip and connect the electrical connector.
- Install the seat bottom and frame assembly. Refer to Seat Cushion Replacement - Front .
- Enable the SIR. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
