Engine Lubrication System: Notes

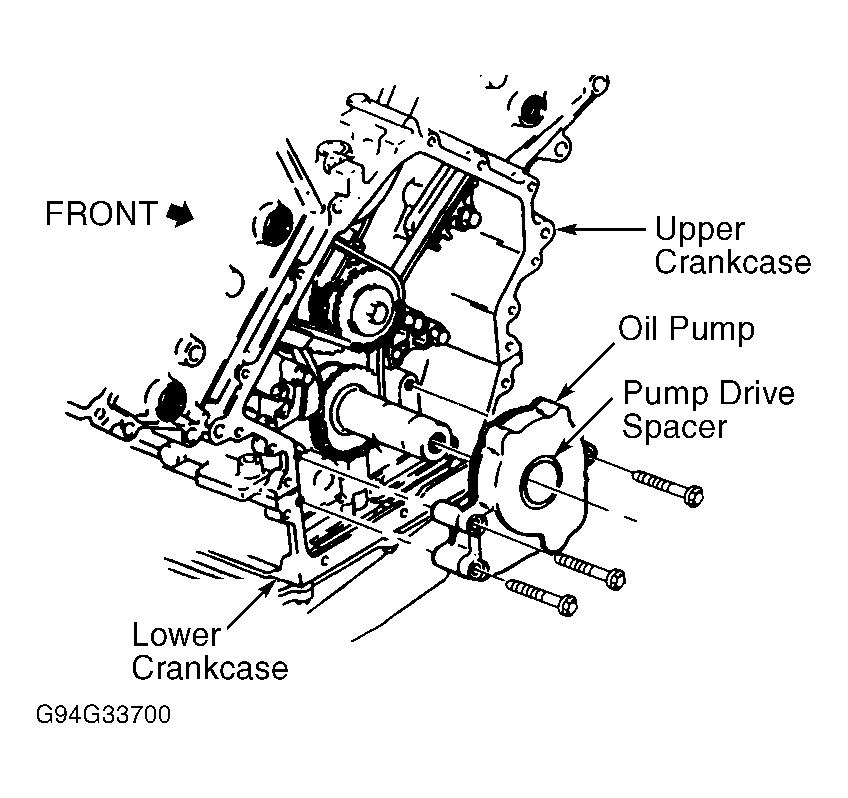

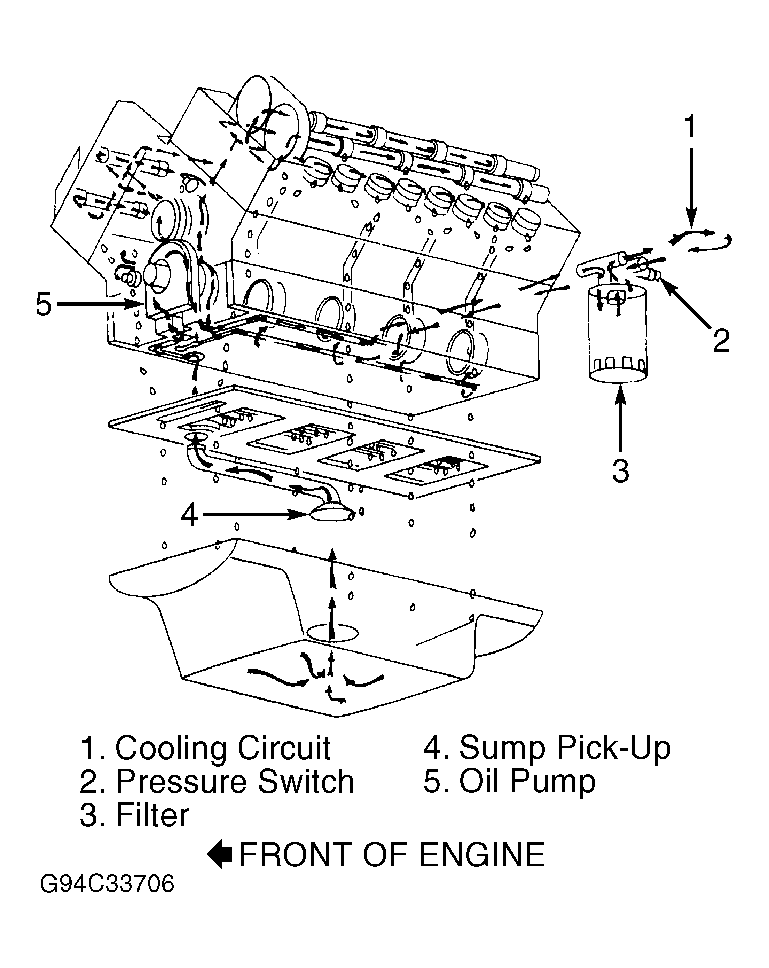

Gerotor oil pump, mounted to lower crankcase behind front cover, is driven by clamp loading of the harmonic balancer bolt. See Figure and Figure . Oil pump draws oil from sump through sump pick-up and cast channels. Pressurized oil enters lower crankcase distribution channel through pump outlet. Oil is routed through oil filter/cooler circuit to the engine.
