2-4 Servo Assembly: Disassembly

  1. Remove 4th apply piston and housing from 2nd apply piston assembly. Remove return spring from apply pin. Install Piston Compressor (J-22269-01) on 2nd apply piston. See Fig 2 .
  2. Compress 2nd servo apply piston assembly. Remove retainer ring. Separate 2nd apply piston, spring and retainer. Remove retainer ring, washer and spring from apply pin, and remove pin. Remove all oil seal rings. See Fig 1 .

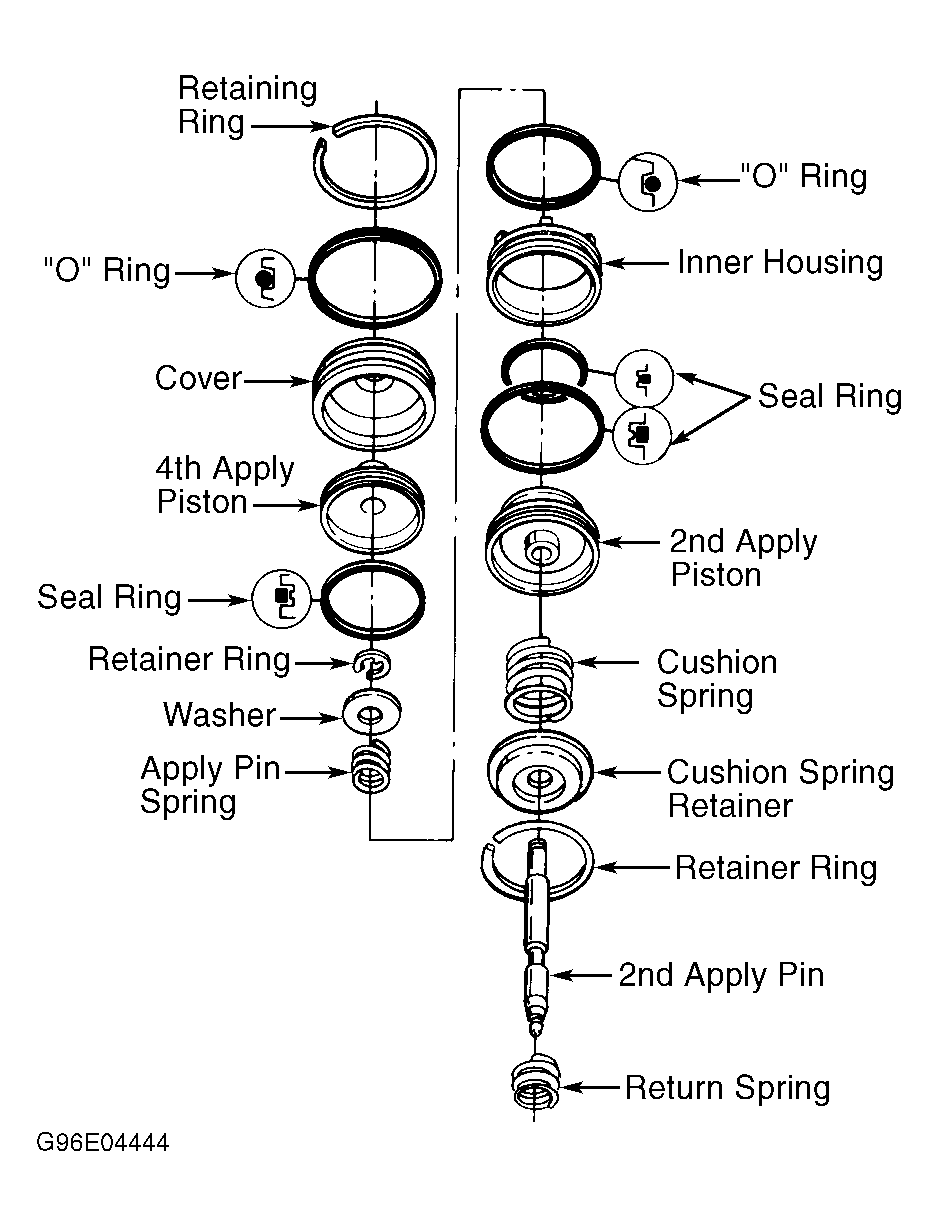

Fig 1: Exploded View Of 2-4 Servo Assembly
G96E04444Courtesy of GENERAL MOTORS CORP.
Fig 2: Compressing 2nd Apply Piston
G92B12576Courtesy of GENERAL MOTORS CORP.
