Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Unsnap the jounce bumper from the mounting cup. Use the 4WD 15-series and, the 2WD 25/35-series supplies.

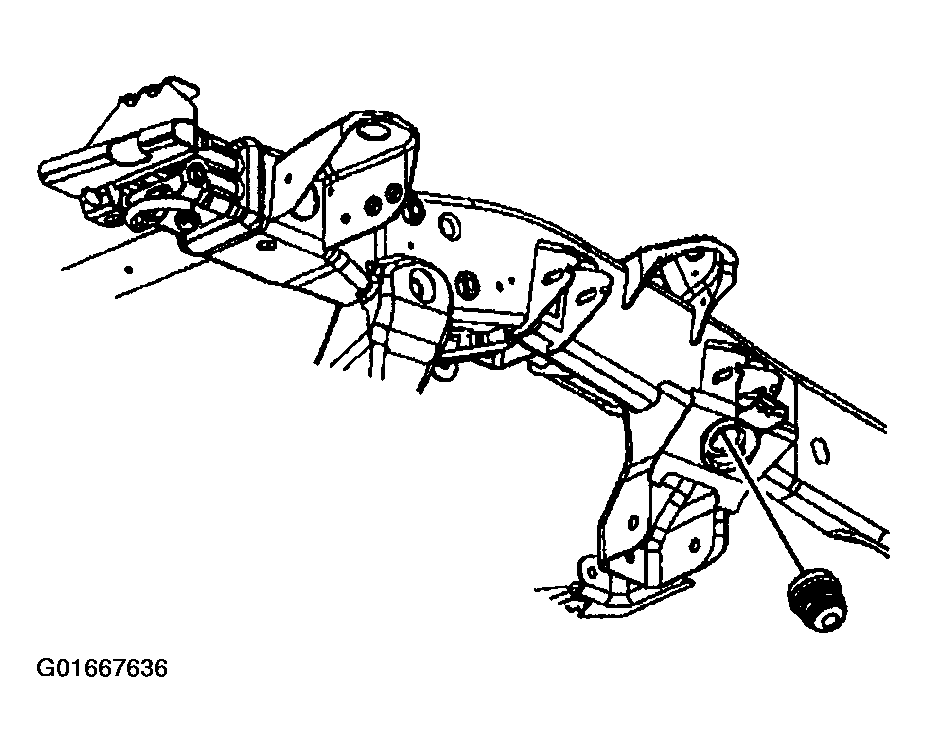

    Fig 1: Locating Jounce Bumper
    G01667636Courtesy of GENERAL MOTORS CORP.
  3. Remove the nut from the jounce bumper stud. Use the 4WD 15-series and, the 2WD 25/35-series supplies.
  4. Remove the jounce bumper.

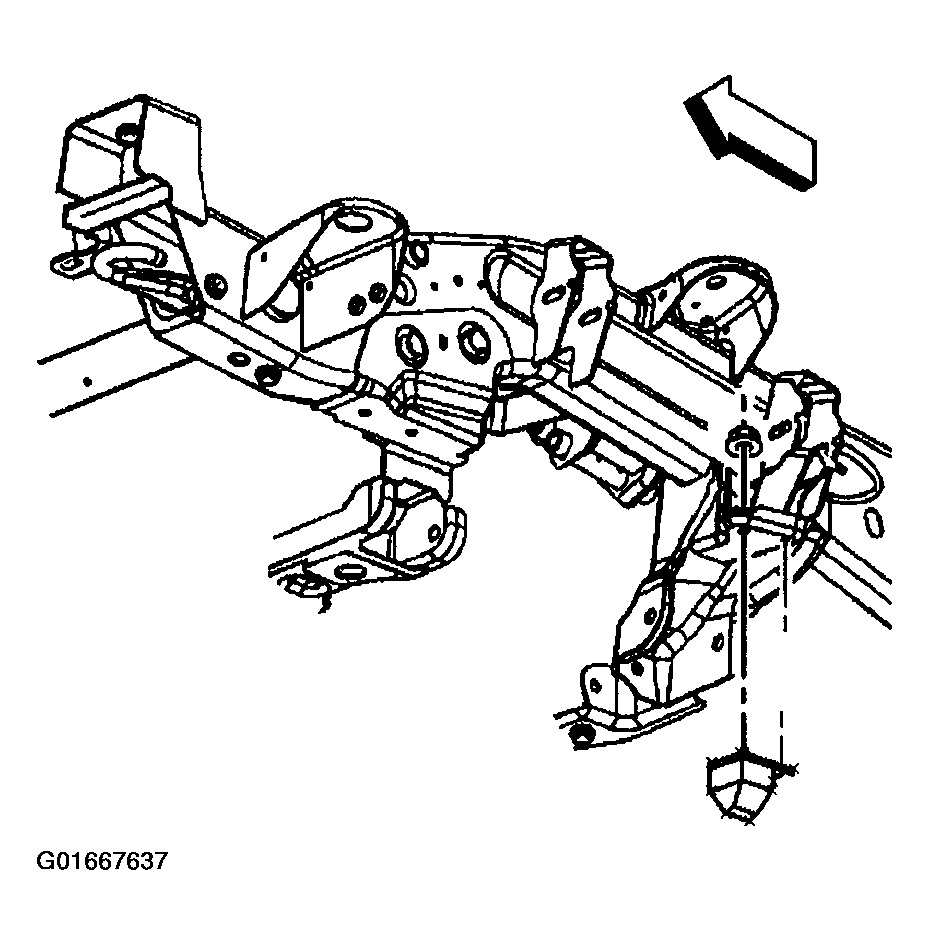

    Fig 2: Locating Jounce Bumper
    G01667637Courtesy of GENERAL MOTORS CORP.
