Removal & Installation
WARNING: This page is about a different car, the 1999 GMC Sierra and 1999 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

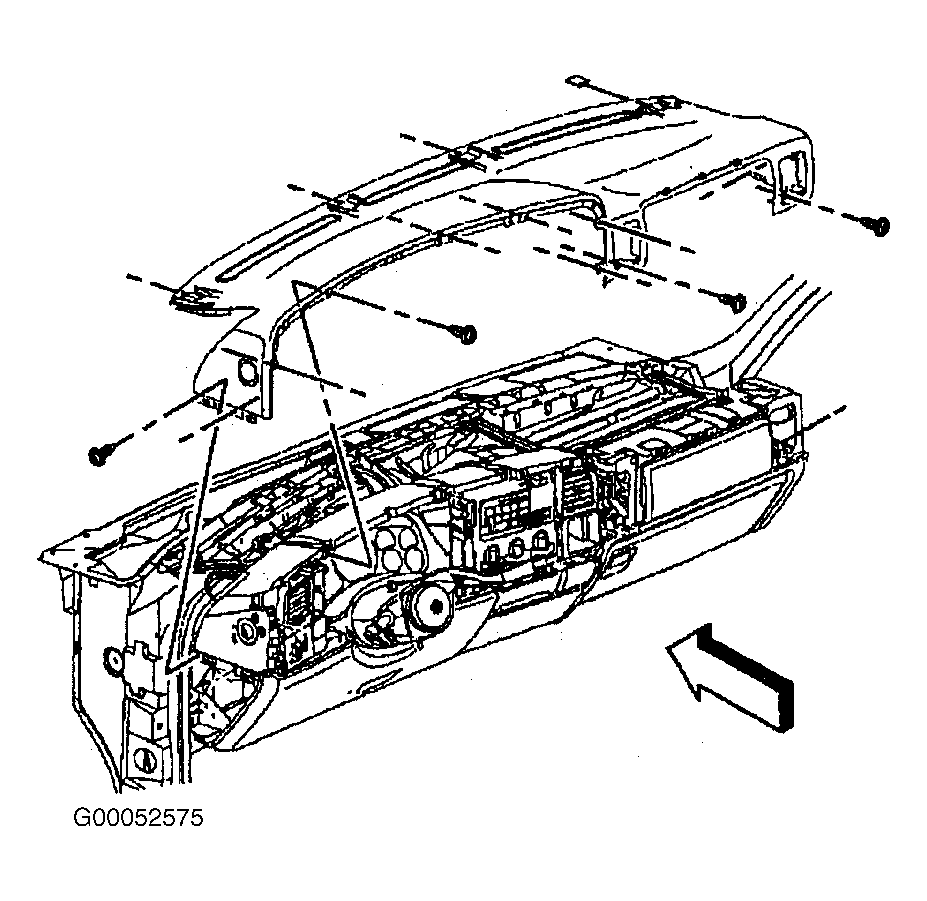

- Remove instrument panel (IP) top cover. See Fig 1

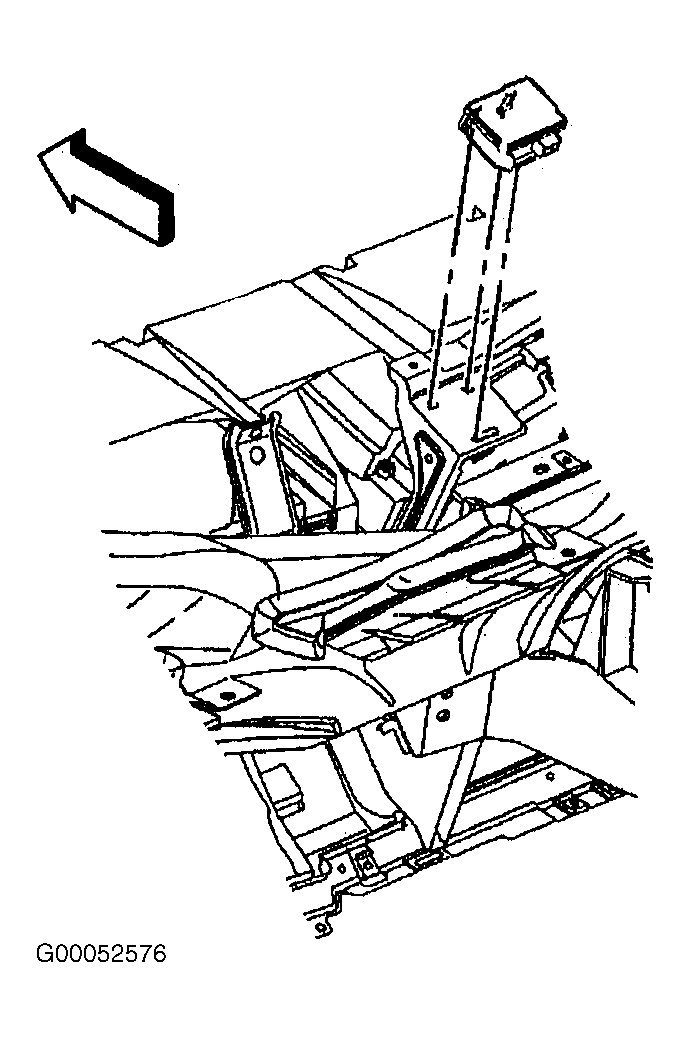

. Remove module. Unsnap 2 lock arms. See Fig 2
. Disconnect electrical connector.
- To install, connect electrical connector. Install module starting with large tang-tilt. Snap 2 lock arms into square holes. Install instrument panel (IP) top cover.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
