Instrument Panel Fuse Block

NOTE: Instrument panel fuse block is located on the right side of the instrument panel. See Fig 1.

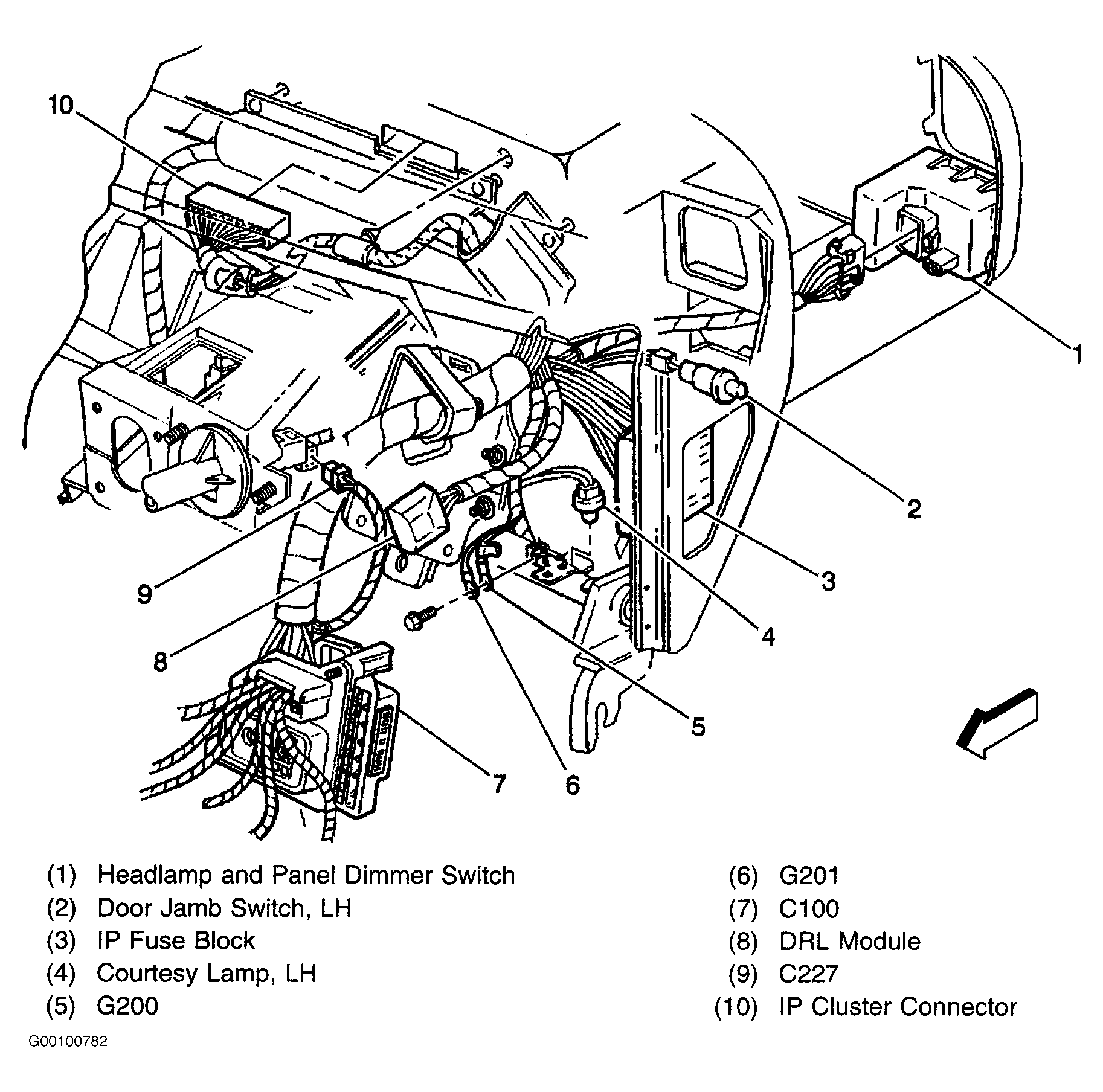

Fig 1: Locating Instrument Panel Fuse Block
G00100782Courtesy of GENERAL MOTORS CORP.

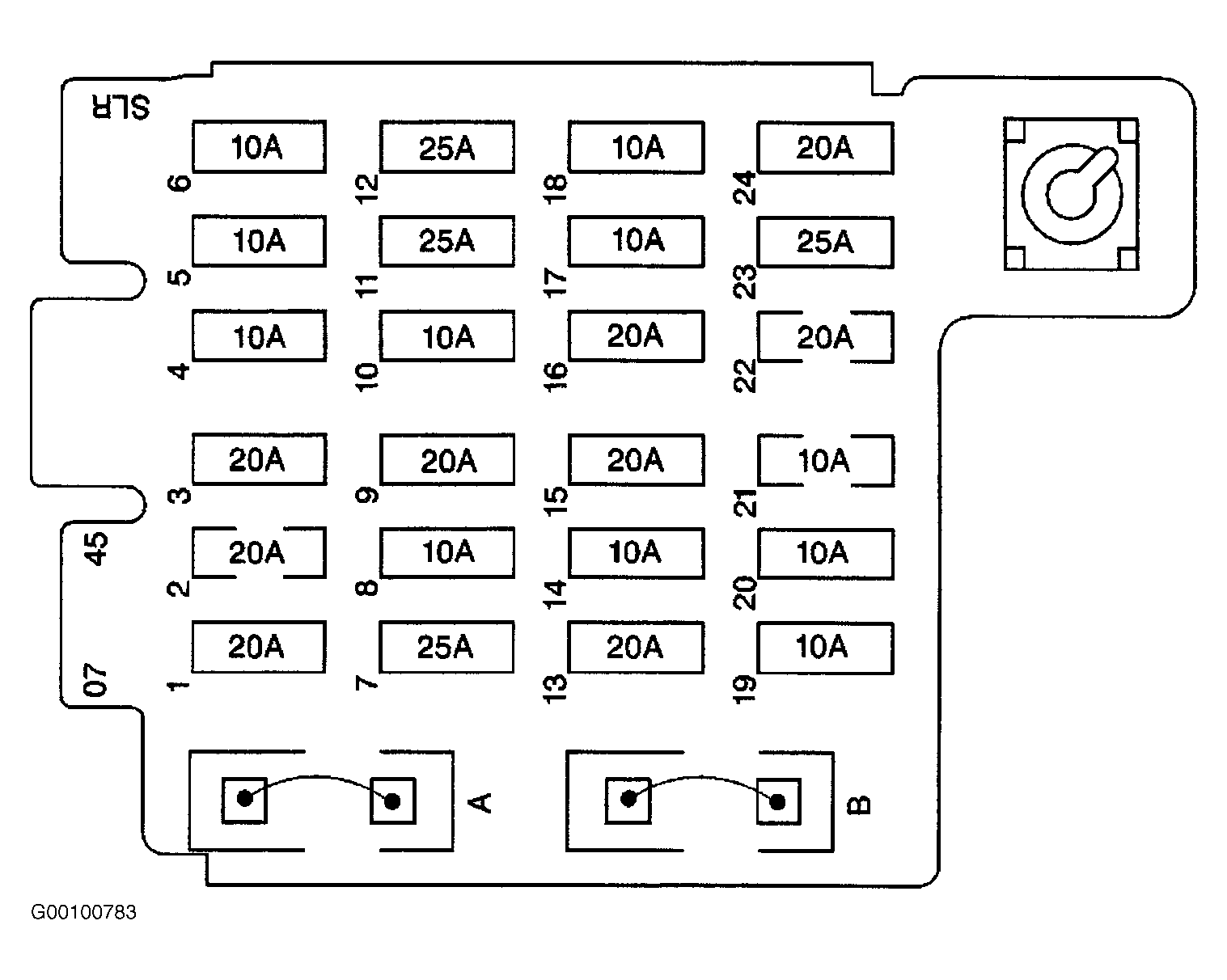

Fig 2: Identifying Instrument Panel Fuse Block Components
G00100783Courtesy of GENERAL MOTORS CORP.

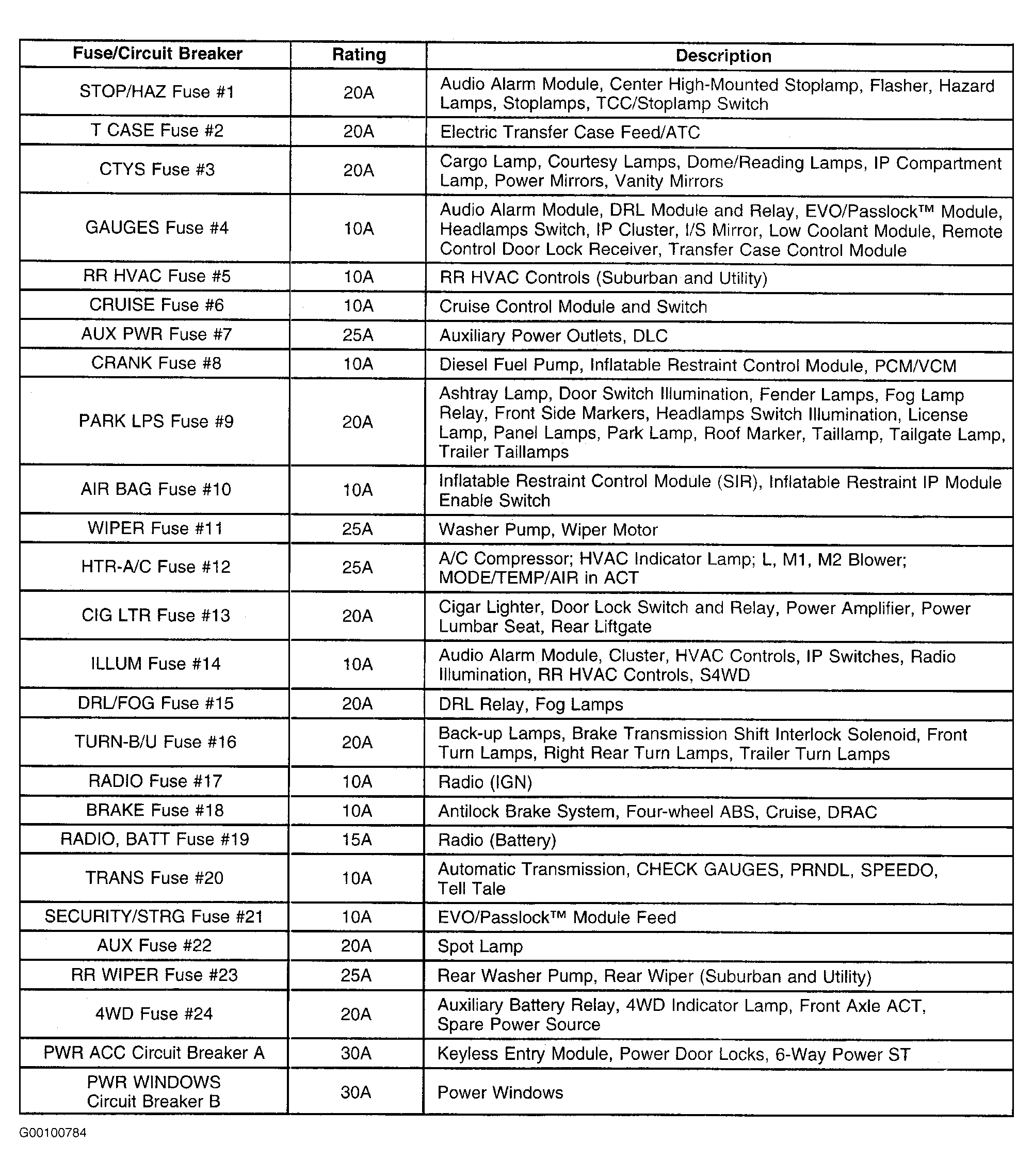

Fig 3: Instrument Panel Fuse Block Legend
G00100784Courtesy of GENERAL MOTORS CORP.
