Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fog lamp bulb by rotating the bulb (1) 45 degrees clockwise in order to secure.
  2. Connect the electrical connector (2).

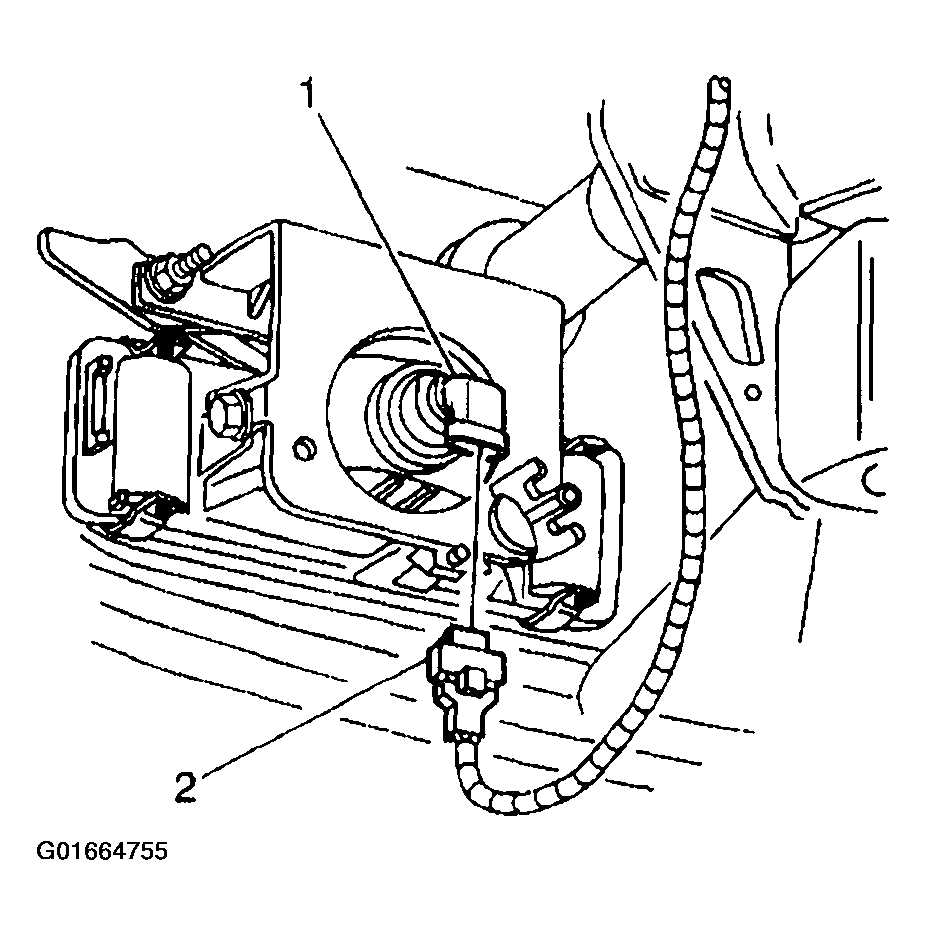

    Fig 1: Fog Lamp Socket Electrical Connector, Bulb & Components
    G01664755Courtesy of GENERAL MOTORS CORP.
