Removal Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the license plate pocket. Refer to LICENSE PLATE POCKET REPLACEMENT (VJ6) .
  2. Grasp the backup lamp bulb connector and depress the locking tabs inward.
  3. Turn the bulb connector counterclockwise 45 degrees while pulling outward.
  4. Remove the inoperative bulb from the socket.

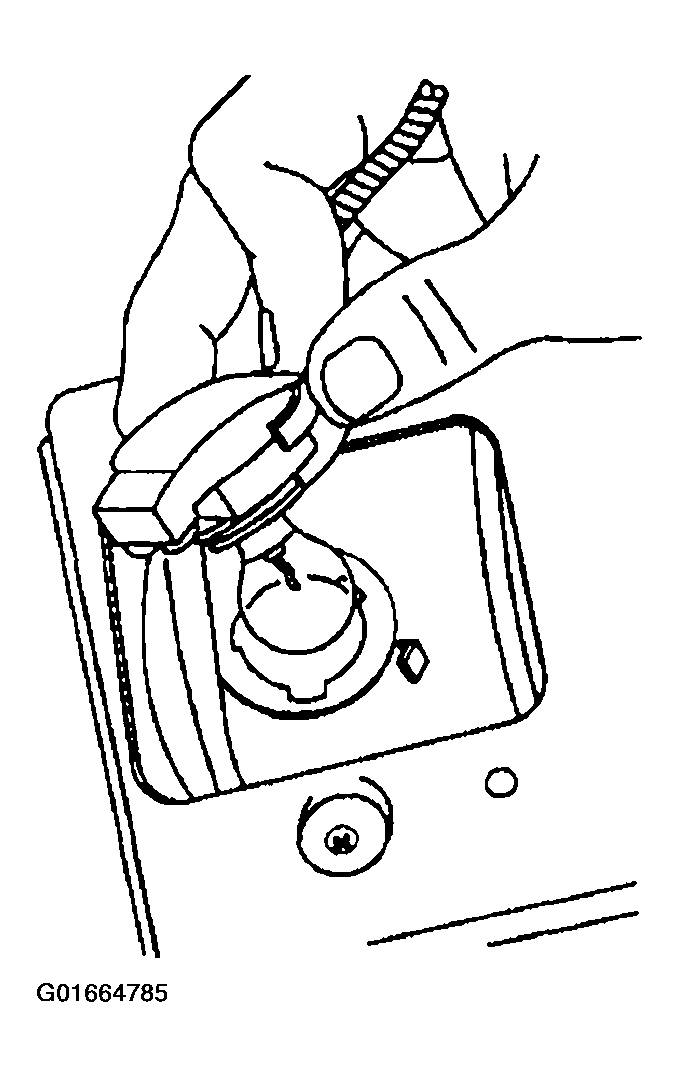

    Fig 1: Backup Lamp Bulb & Socket
    G01664785Courtesy of GENERAL MOTORS CORP.
