Vehicle Speed Sensor: Installation

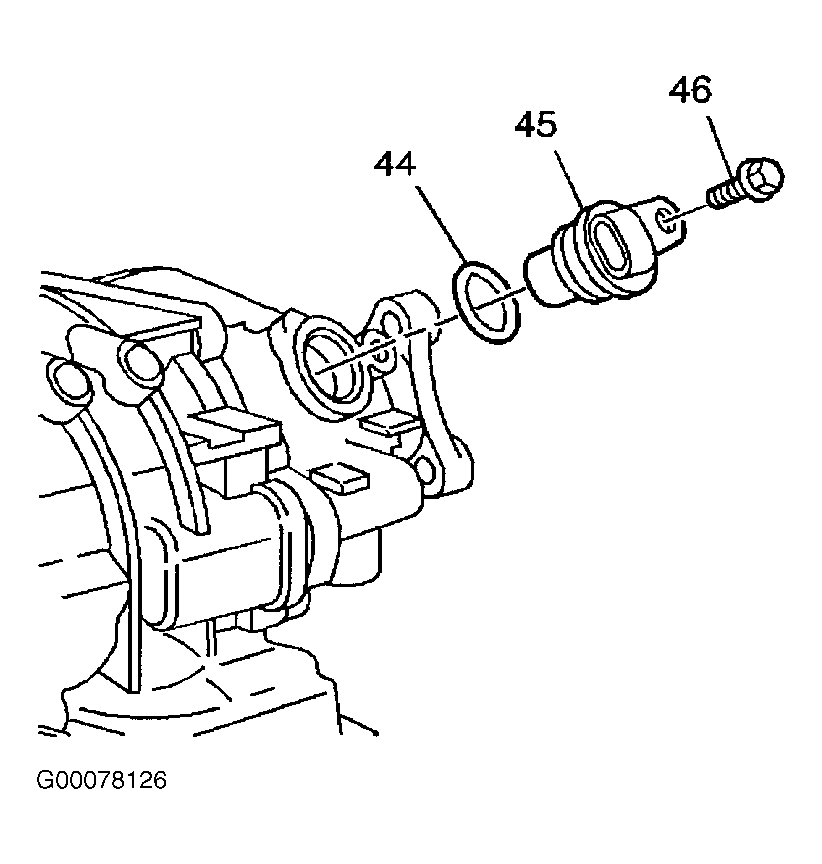

Install the seal (44) to the speed sensor (45). Install the vehicle speed sensor to the transmission. Install the speed sensor attaching bolt (46). See Figure . Tighten the vehicle speed sensor bolt to specification. See TORQUE SPECIFICATIONS  . Connect the vehicle speed sensor electrical harness connector. Lower the vehicle.
