Shift Control Solenoids: Installation

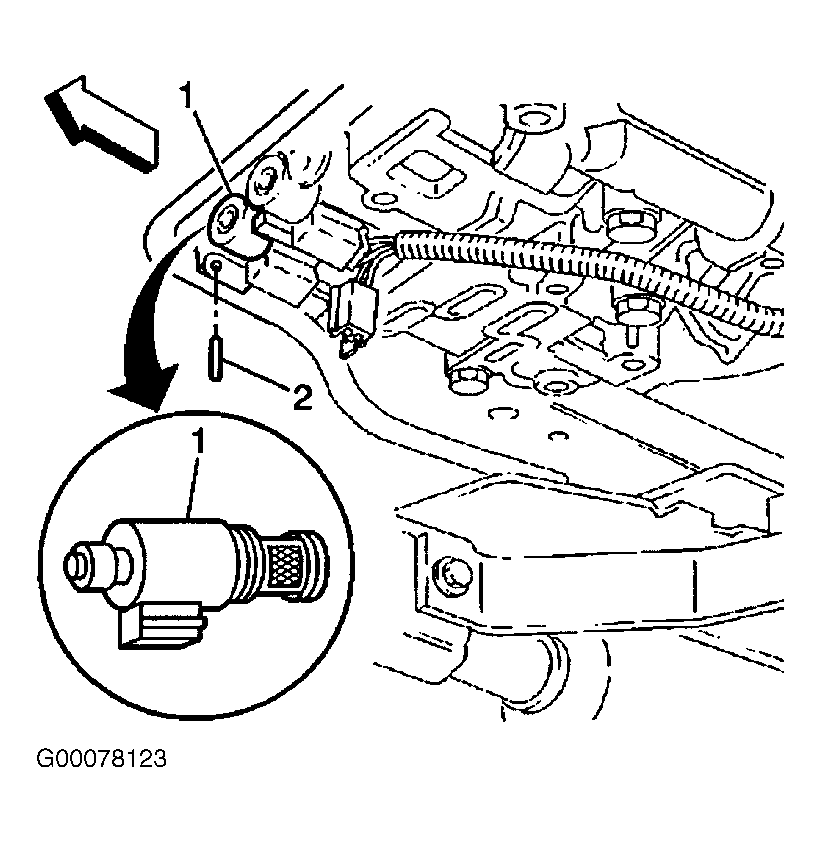

  1. Install the solenoid valve (1). See Figure . Install the retaining pin (2). Use a soft mallet to drive the retaining pin in.
  2. Connect the electrical harness connector to the solenoid valve.
  3. Install the transmission filter and the transmission oil pan. See DRAINING & REFILLING  under LUBRICATION.
