Adapter Case Control Valve Assembly: Installation

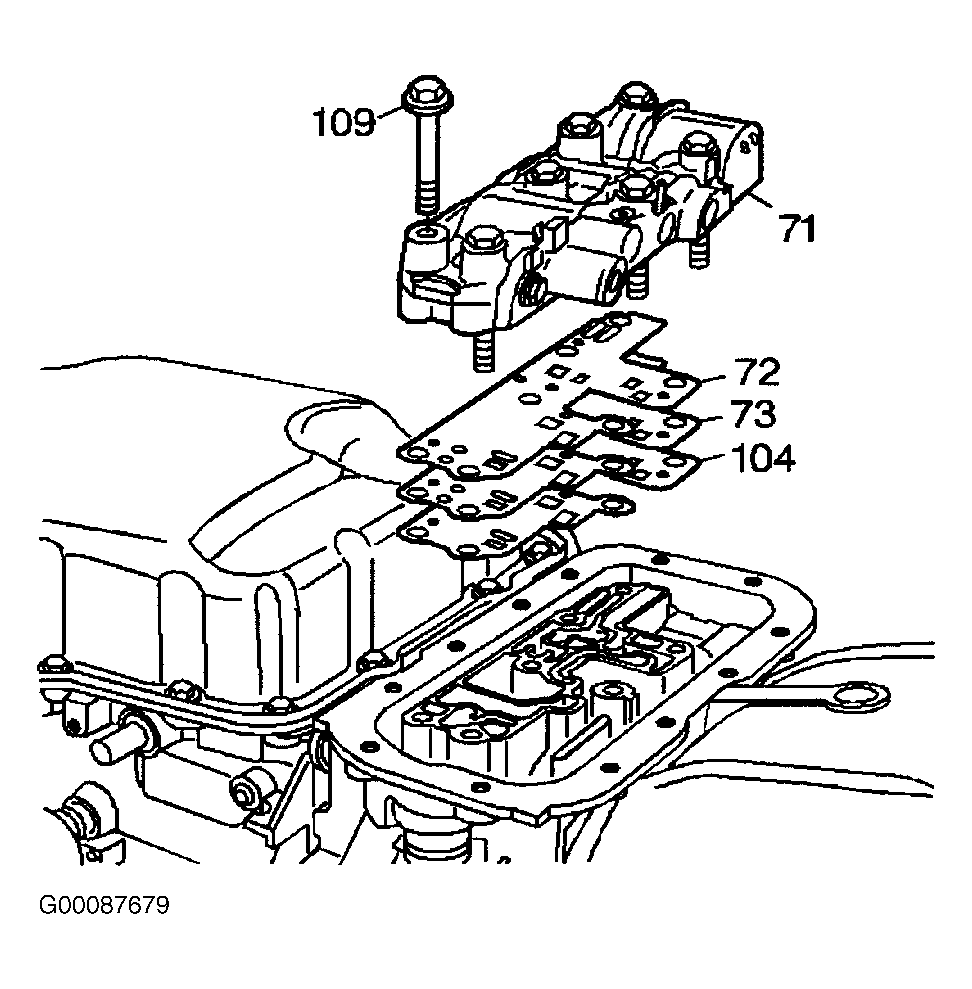

Install the adapter case check ball (85) into the case passage. See Figure . Install the spacer plate to case gasket (104). See Figure . Install the spacer plate (73). Install the spacer plate to control valve assembly gasket (72). Install the control valve assembly (71). Install the control valve assembly bolts (109). Tighten the control valve assembly bolts to specification. See TORQUE SPECIFICATIONS  . Install the transmission oil filter and the transmission oil pan. See DRAINING & REFILLING  under LUBRICATION.
