Power Recirculating Ball Steering: Overhaul

NOTE: Power steering gear is not serviceable. Power steering gear must be replaced as a complete assembly. Exploded view of power steering pump is furnished for informational purposes only. See Fig 1.

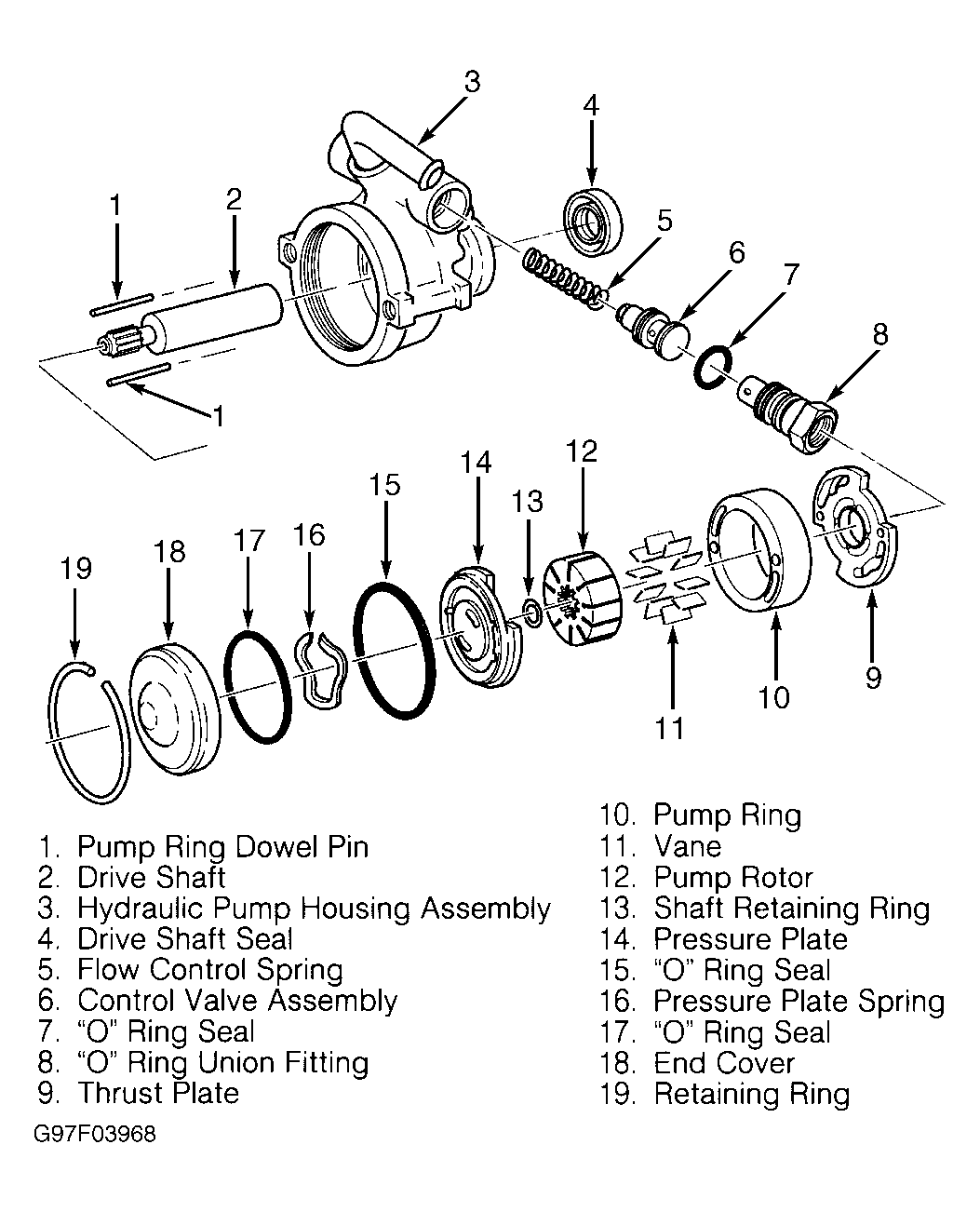

Fig 1: Exploded View Of Power Steering Pump

Courtesy of GENERAL MOTORS CORP.
