Instrument Panel Fuse Block

NOTE: Instrument panel fuse block is located on the lower left hand side of the steering column, mounted to the lower instrument panel. See Fig 1 .

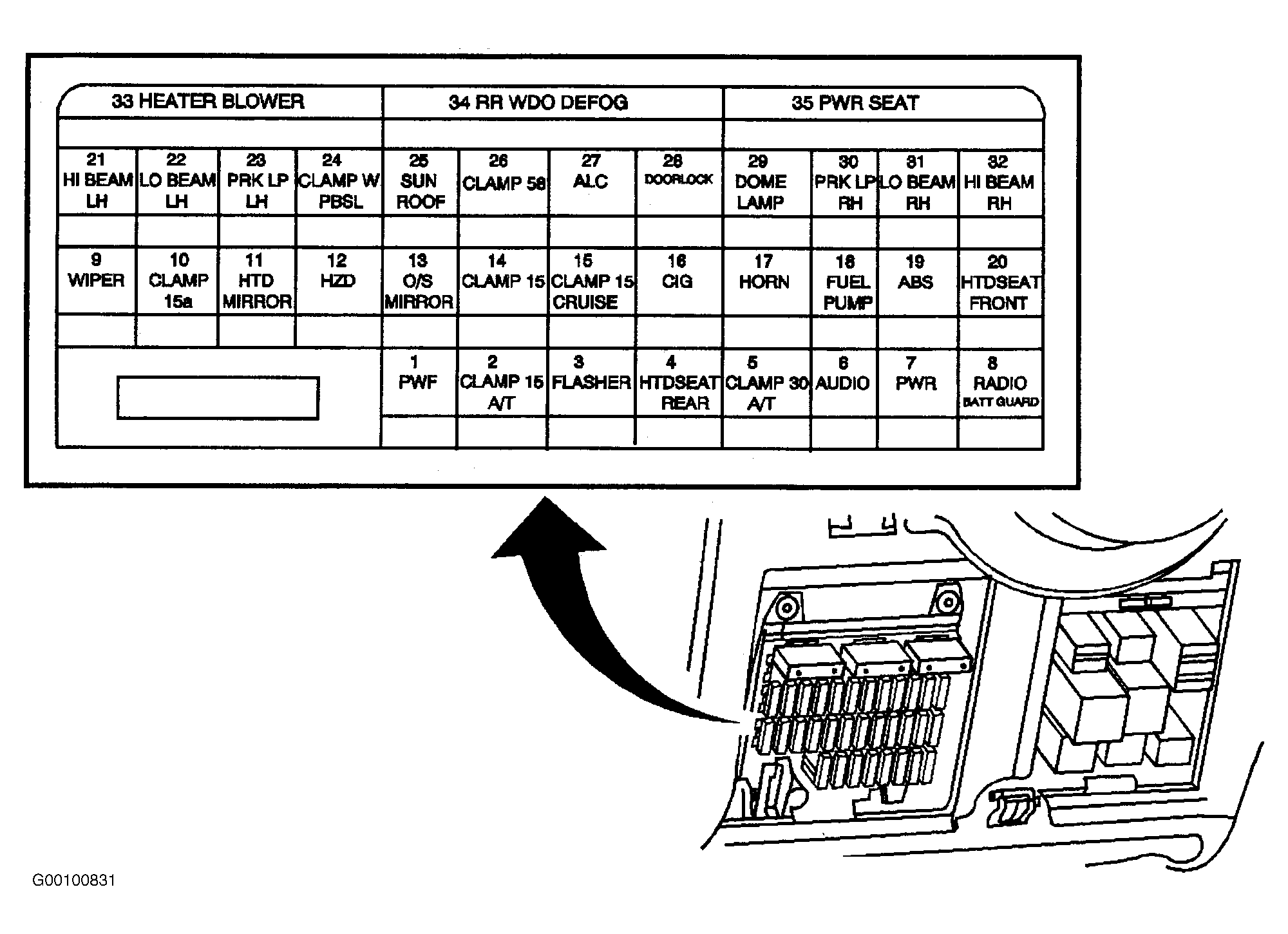

Fig 1: Locating & Identifying Instrument Panel Fuse Block

Courtesy of GENERAL MOTORS CORP.

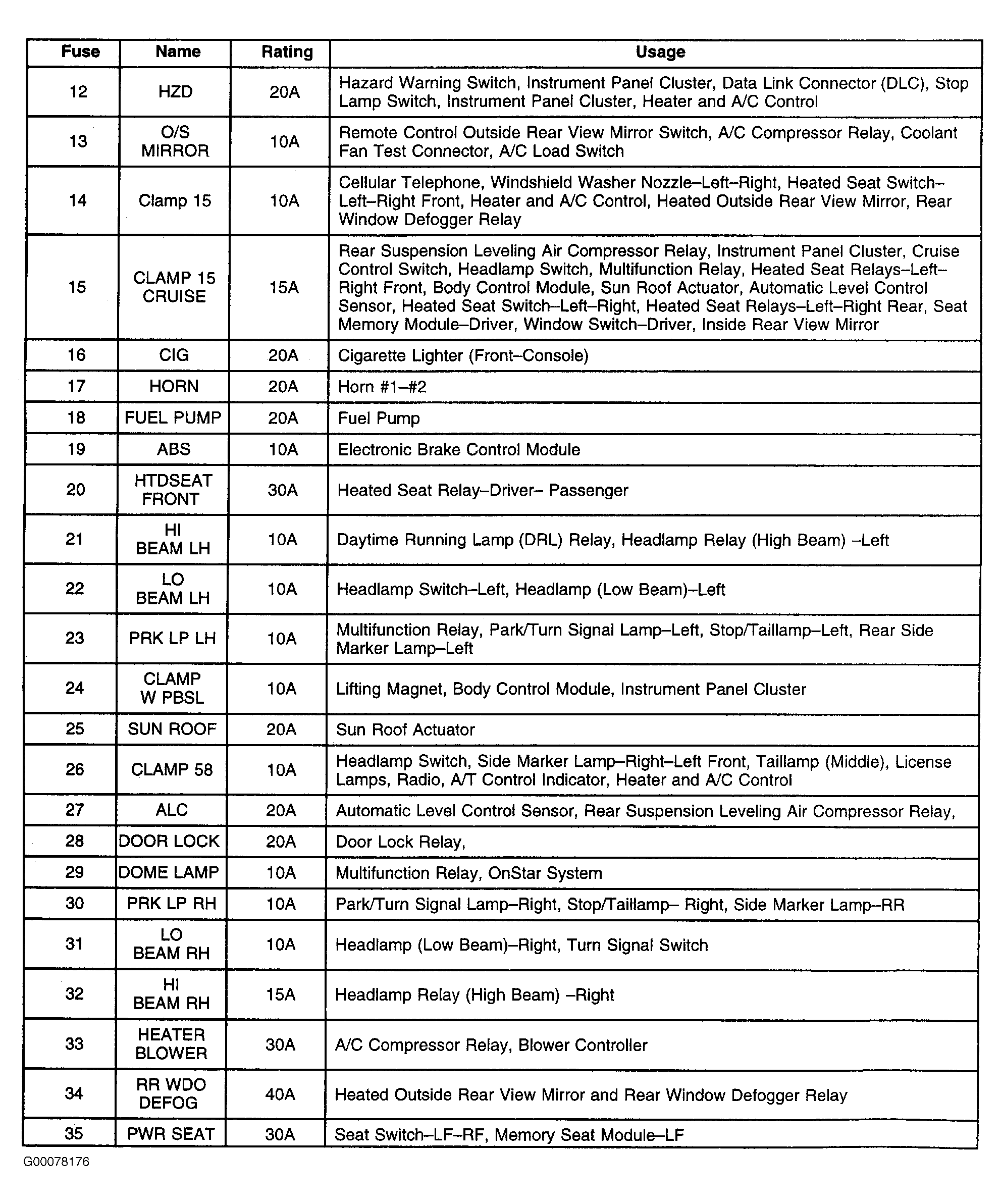

Fig 2: Instrument Panel Fuse Block Legend (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

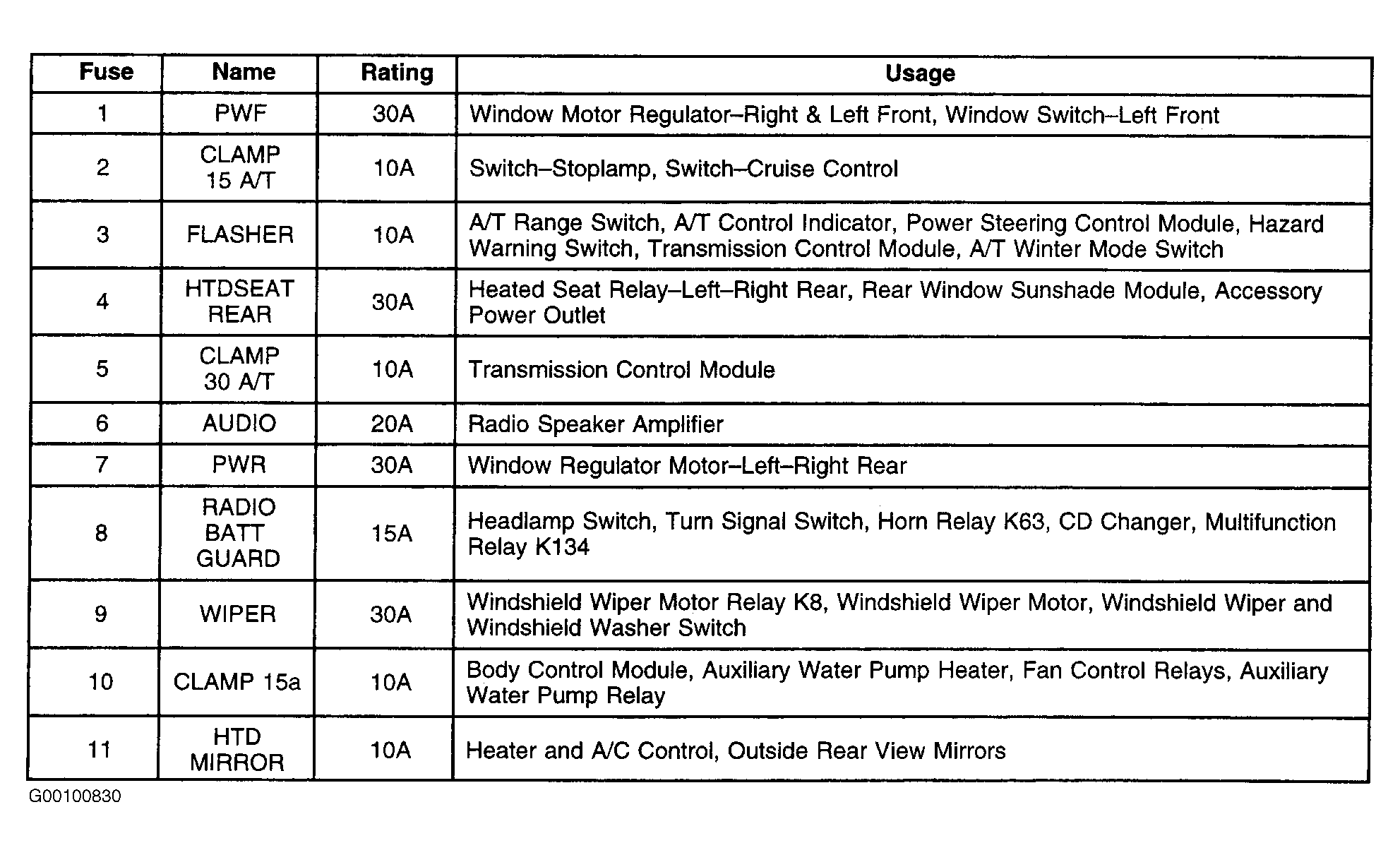

Fig 3: Instrument Panel Fuse Block Legend (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
