DTC U2106: Lost Comm with Trans Control System: Notes

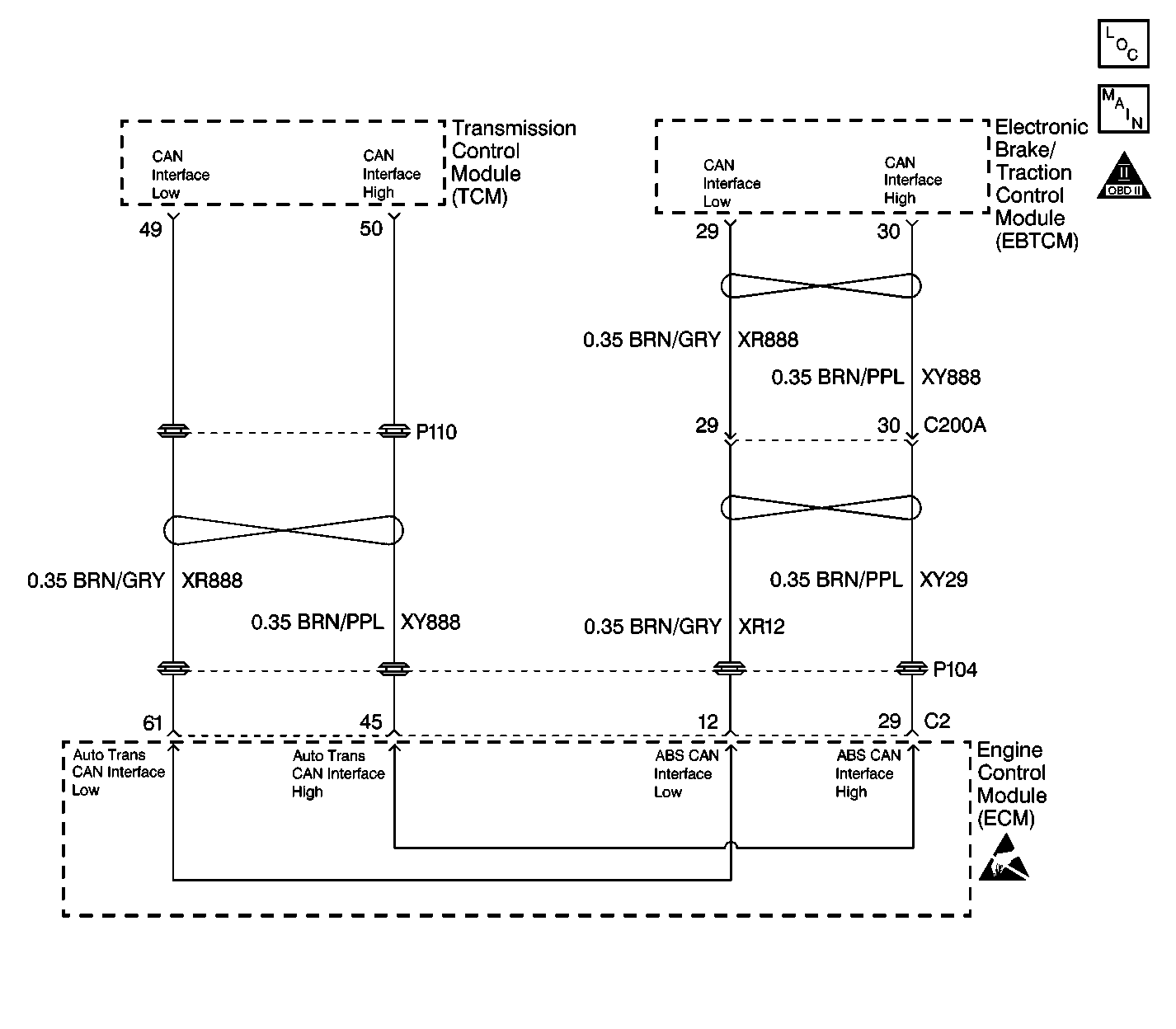

Fig 1: CAN Bus Communication Schematic

GM460755
