Cadillac
>>
1999
>>
Escalade
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Remote Keyless Entry Systems
>>
Wiring Diagrams
Wiring Diagrams

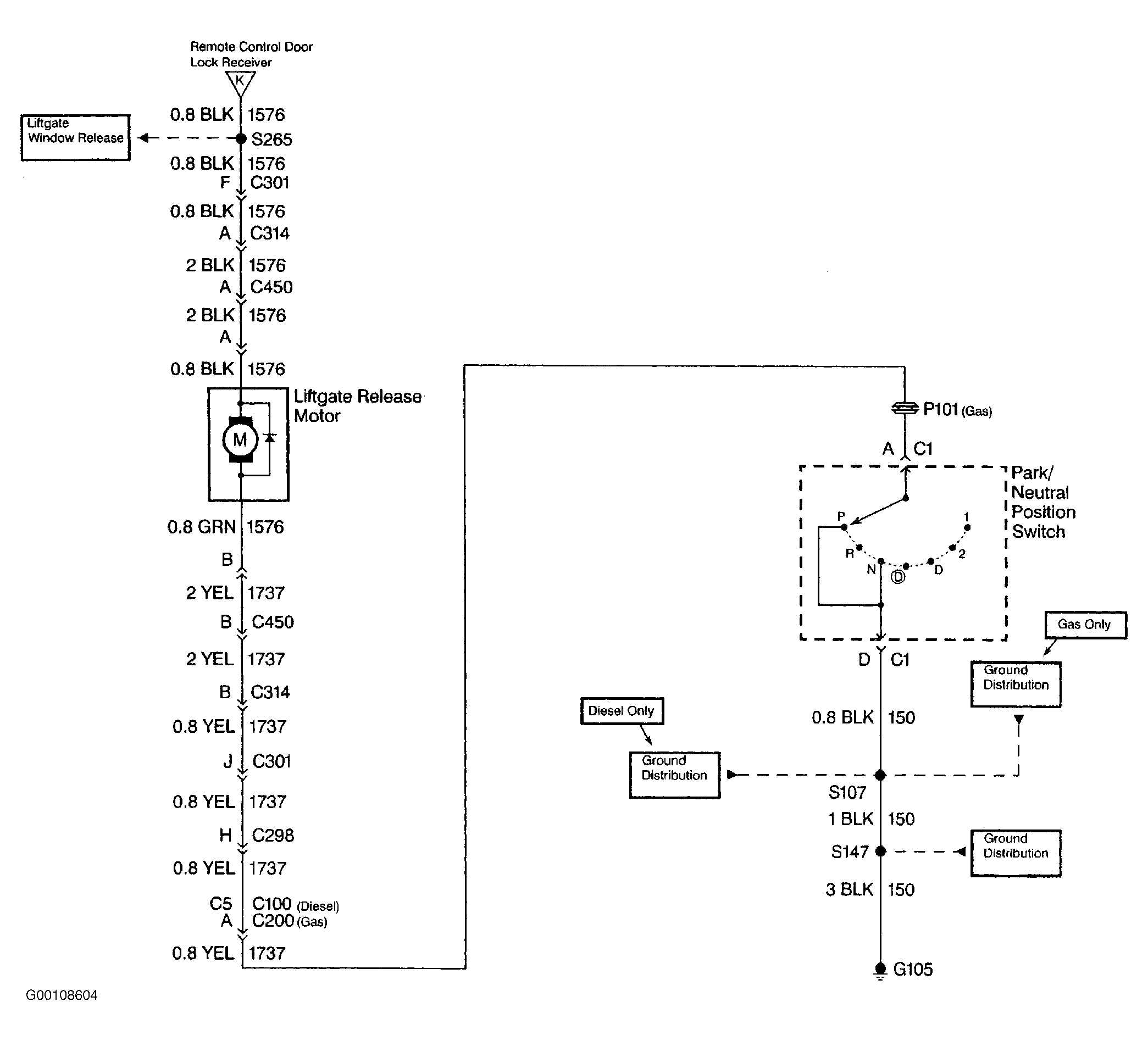

Fig 1: Remote Keyless Entry System (Except Luxury) Wiring Diagram (1 Of 5)
Courtesy of GENERAL MOTORS CORP.

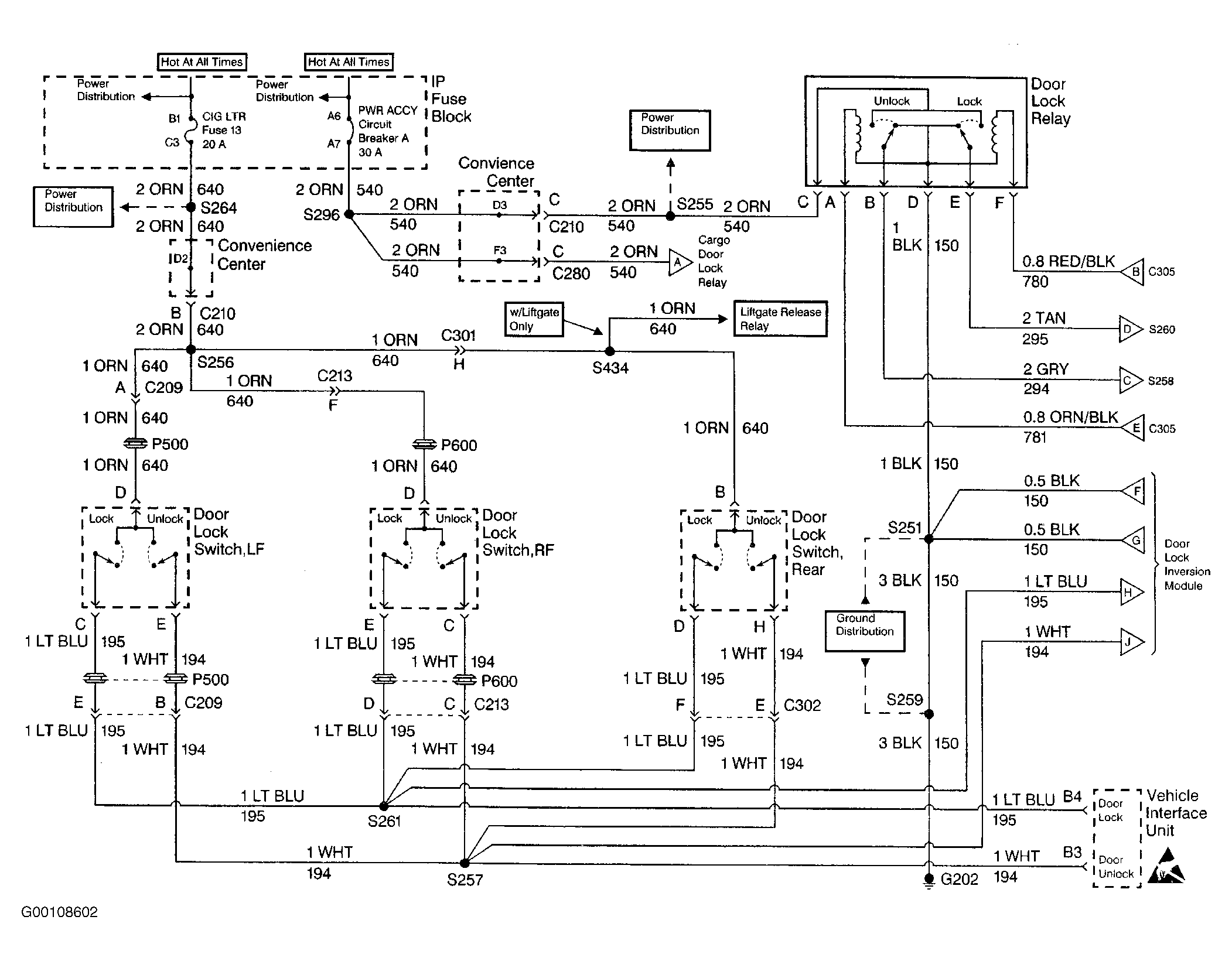

Fig 2: Remote Keyless Entry System (Except Luxury) Wiring Diagram (2 Of 5)
Courtesy of GENERAL MOTORS CORP.

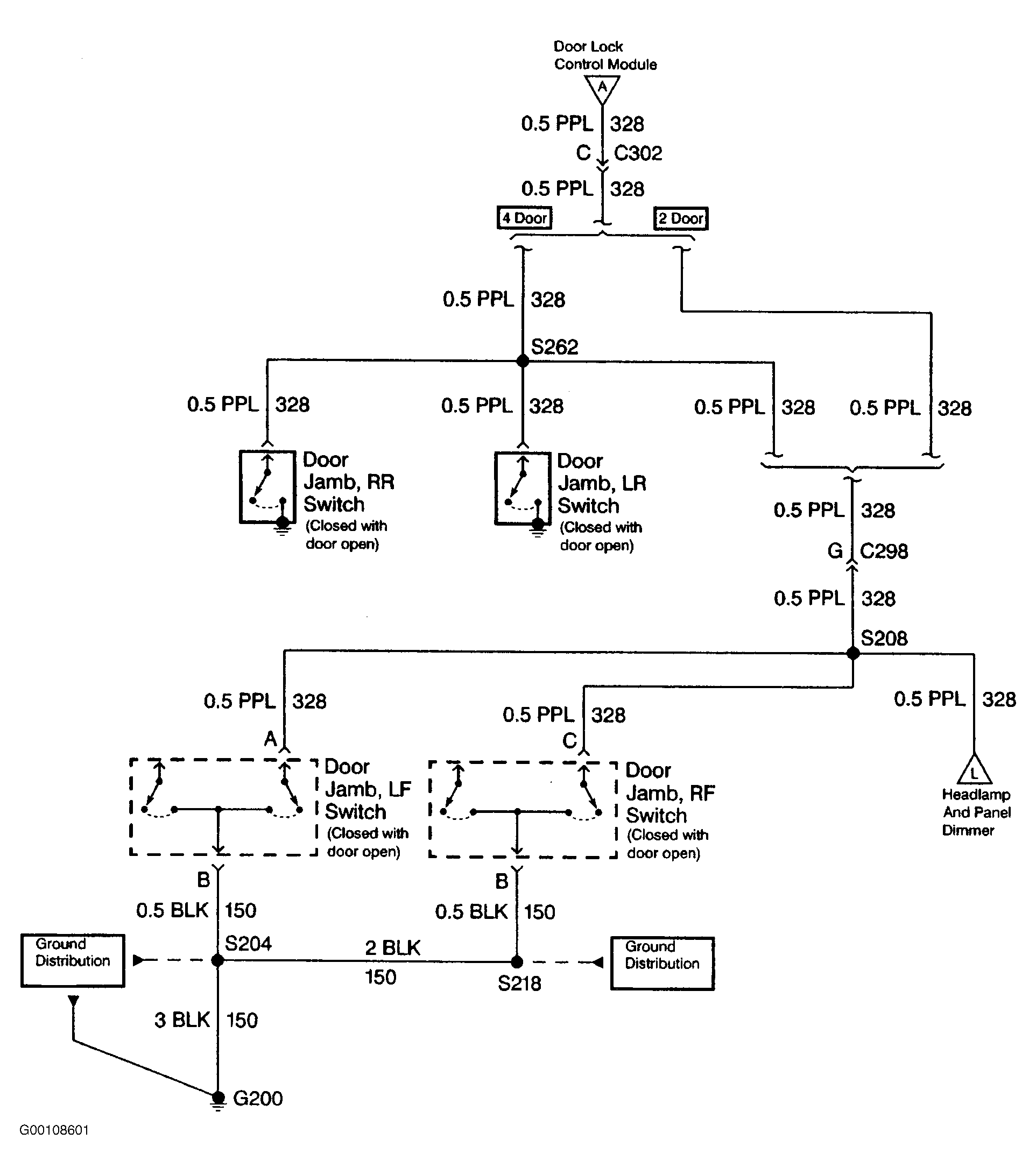

Fig 3: Remote Keyless Entry System (Except Luxury) Wiring Diagram (3 Of 5)
Courtesy of GENERAL MOTORS CORP.

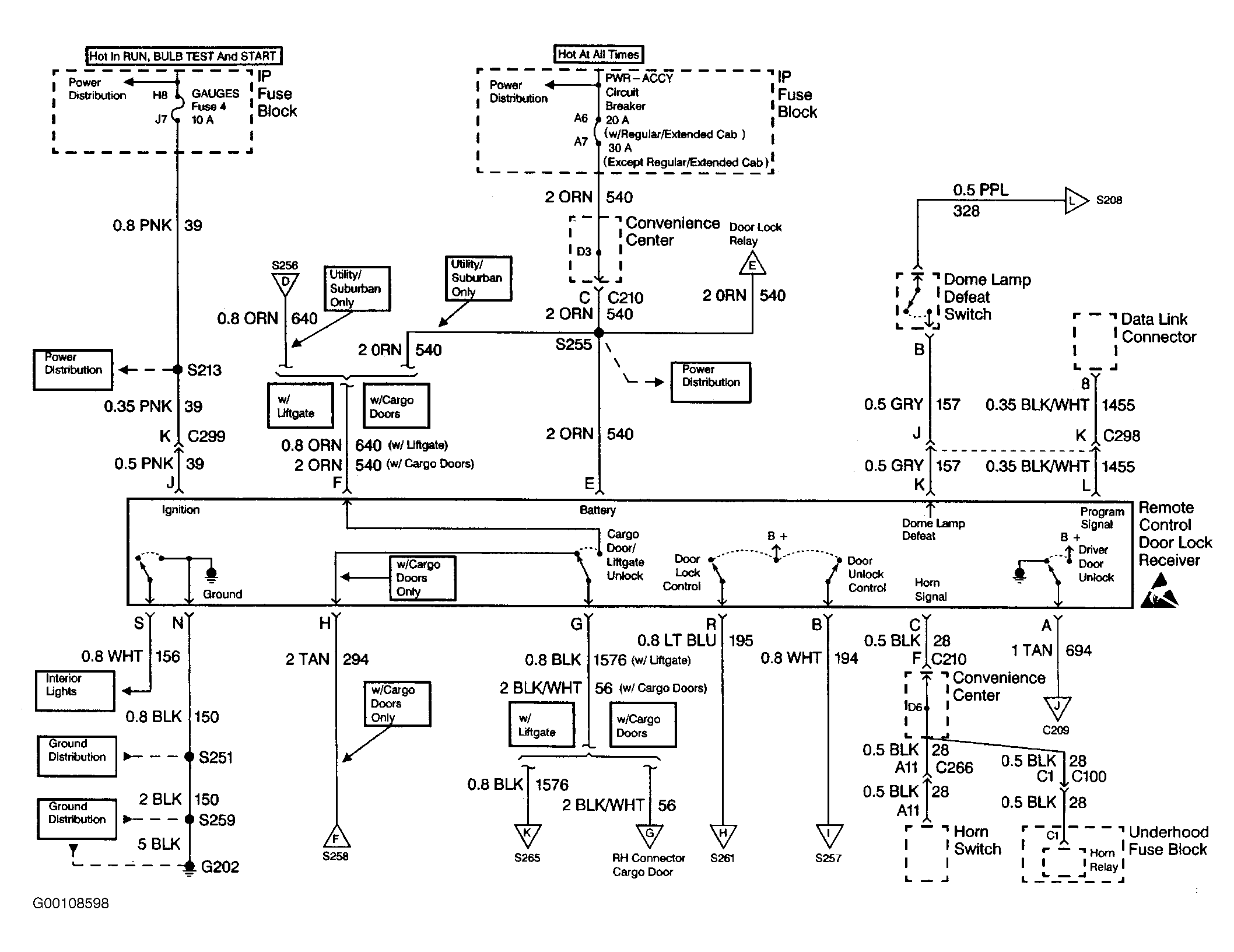

Fig 4: Remote Keyless Entry System (Except Luxury) Wiring Diagram (4 Of 5)
Courtesy of GENERAL MOTORS CORP.

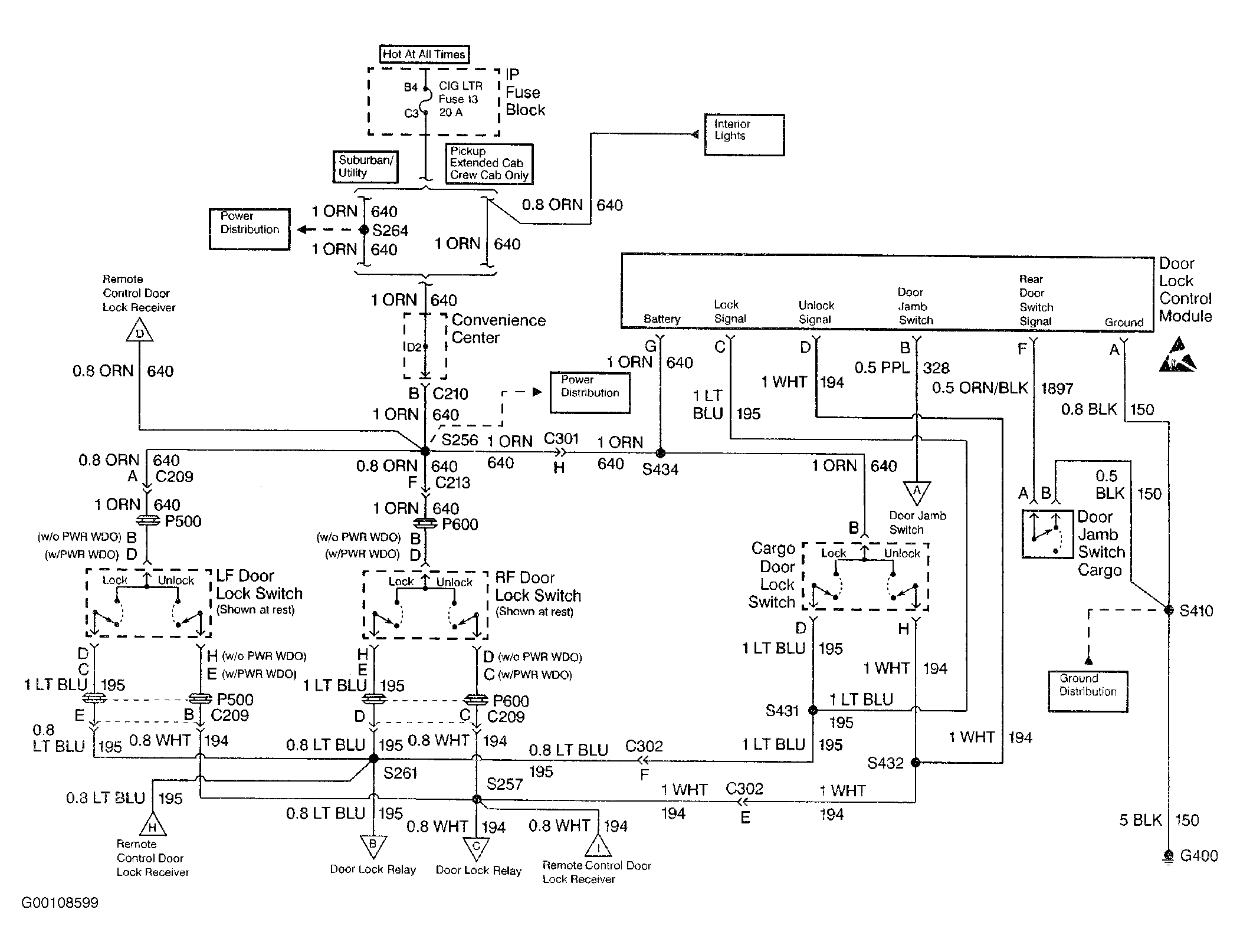

Fig 5: Remote Keyless Entry System (Except Luxury) Wiring Diagram (5 Of 5)
Courtesy of GENERAL MOTORS CORP.

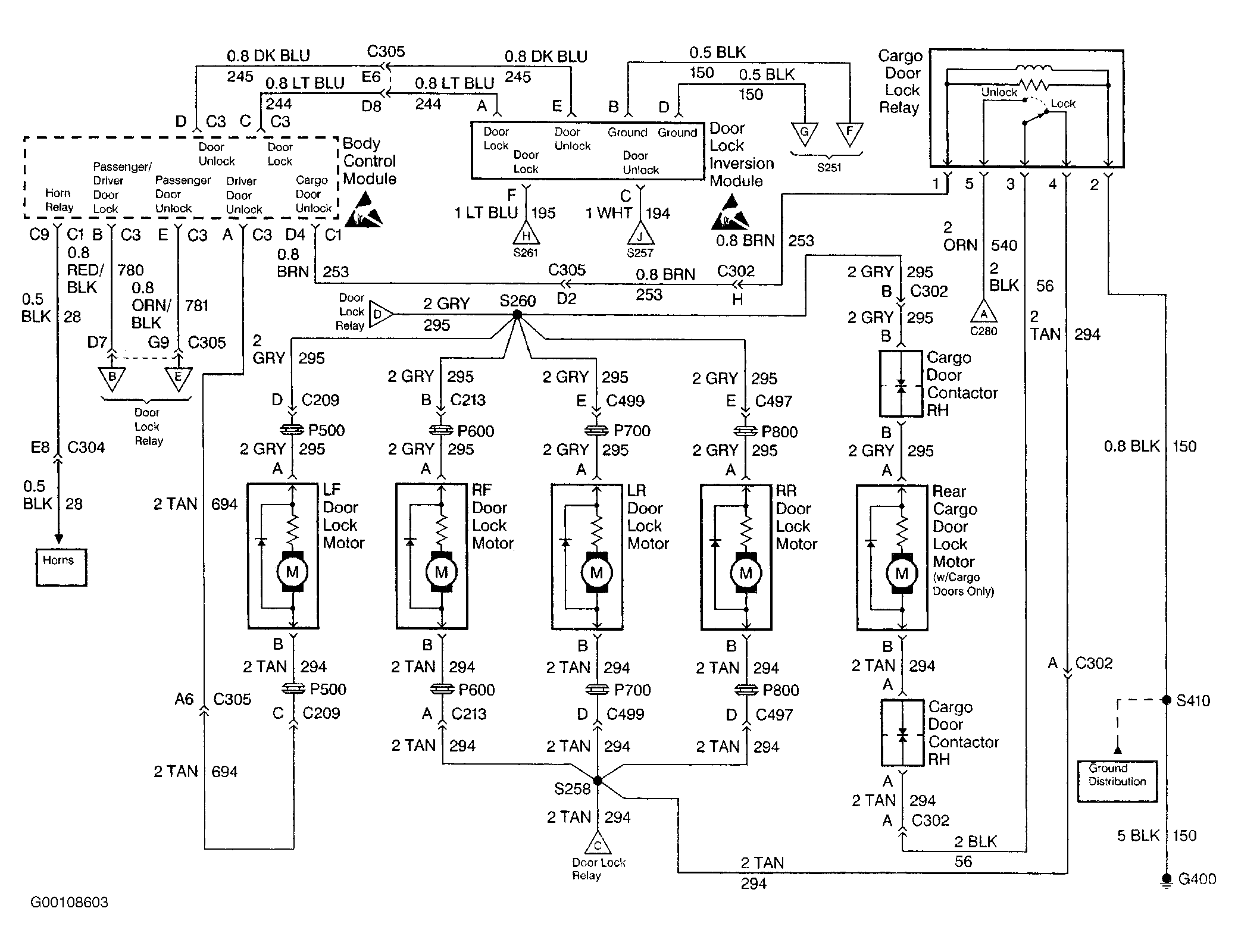

Fig 6: Power Door Locks (Luxury) Wiring Diagram (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

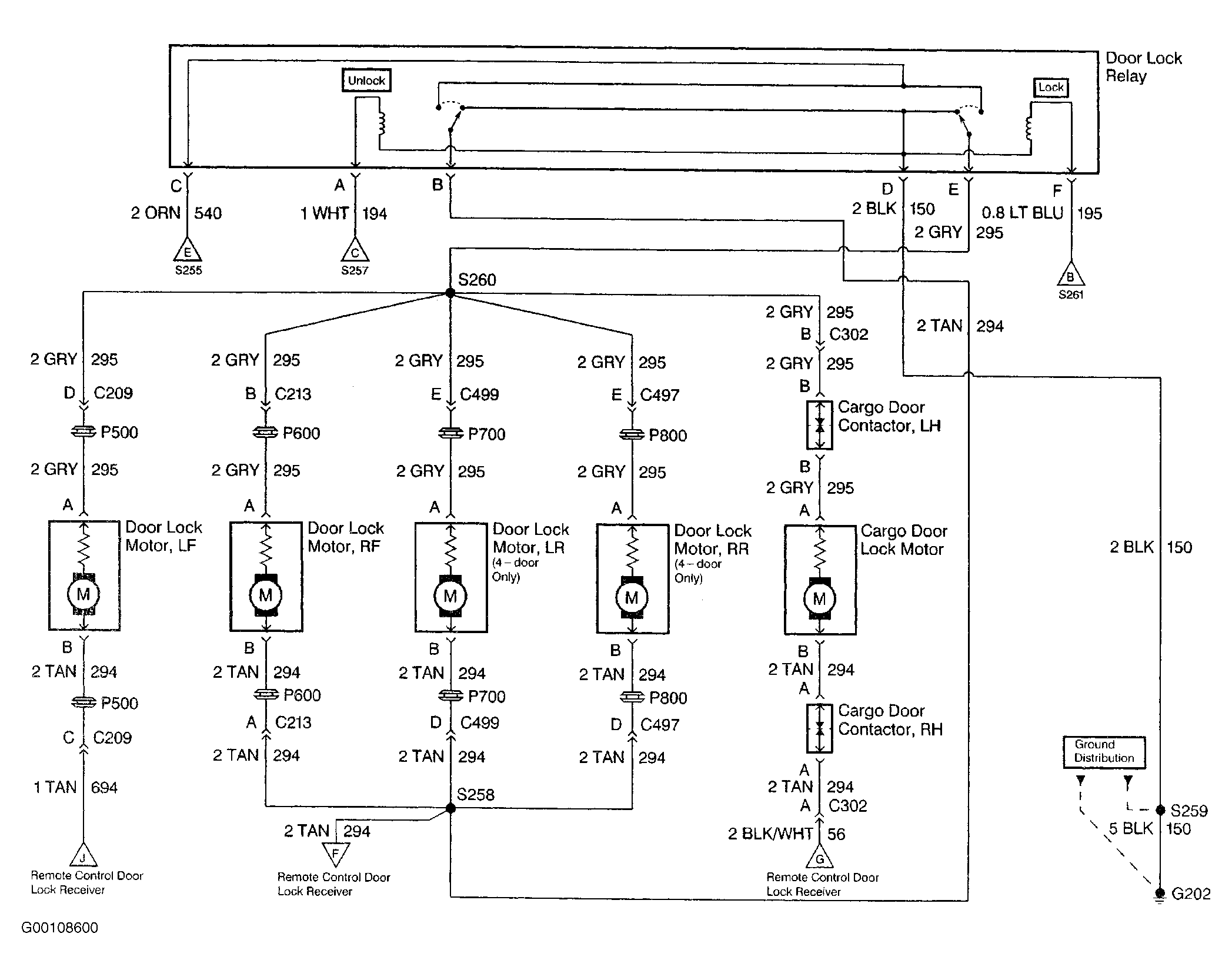

Fig 7: Power Door Locks (Luxury) Wiring Diagram (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
