Power Door Lock System
>>
Connector Identification
>>
Door Lock Control Module
Door Lock Control Module

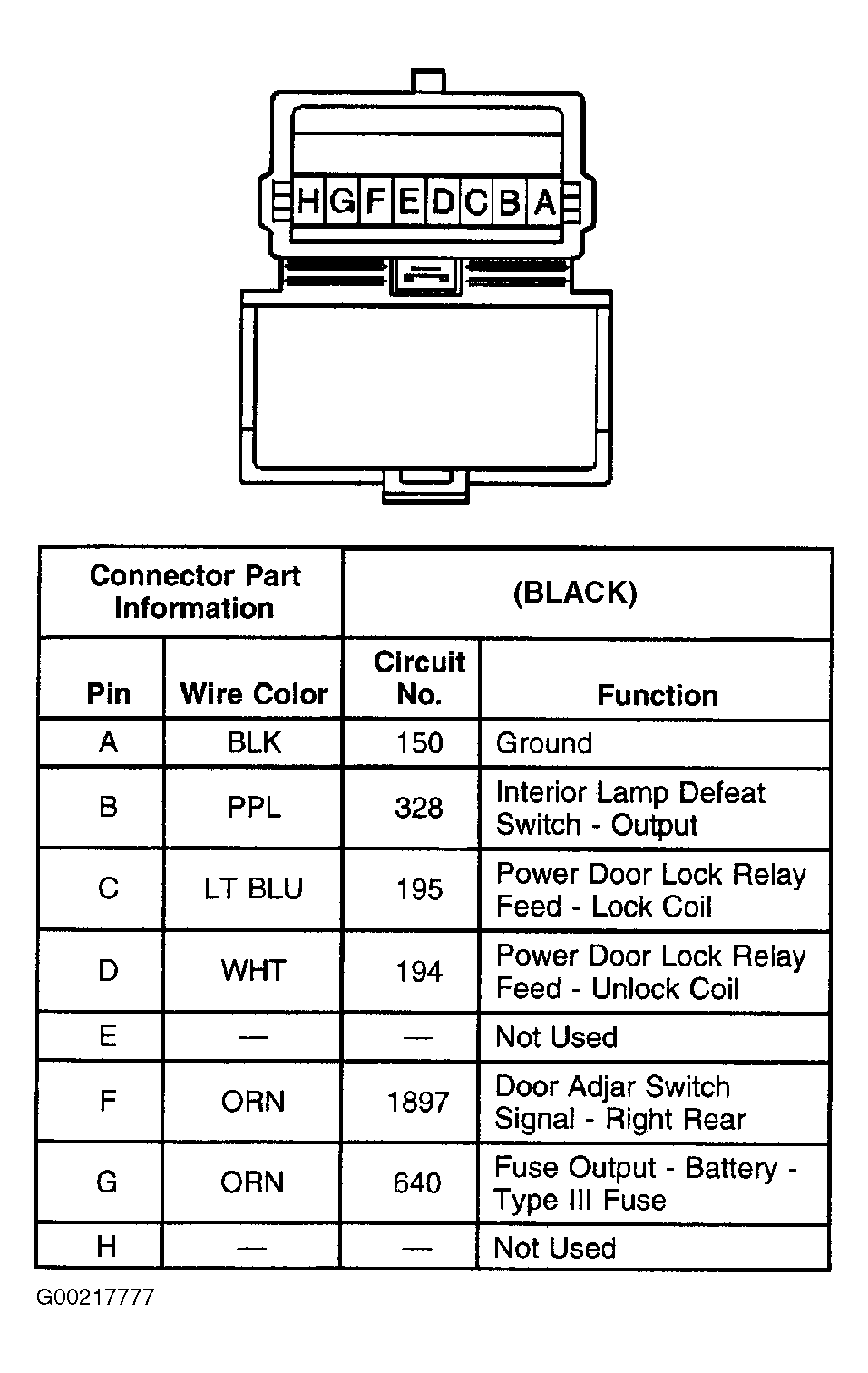

Fig 1: Door Lock Control Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
