Component Locations

PASS-KEY II(R) & UTD SYSTEM COMPONENT LOCATIONS

Component

Location

Body Control Module (BCM)

⁽¹⁾ In Trunk, On Back Of Rear Seat

Park/Neutral Position Switch

On Left Side Of Transaxle, Below Throttle Body

Powertrain Control Module (PCM)

In Left Front Of Engine Compartment

Right Side MAXIFUSE(R) Block

Near Engine Compartment Fuse/Relay Center

Starter Enable Relay

In Engine Compartment, Near Right Side MAXI-Fuse(R) Block

⁽¹⁾	See Fig 1 .

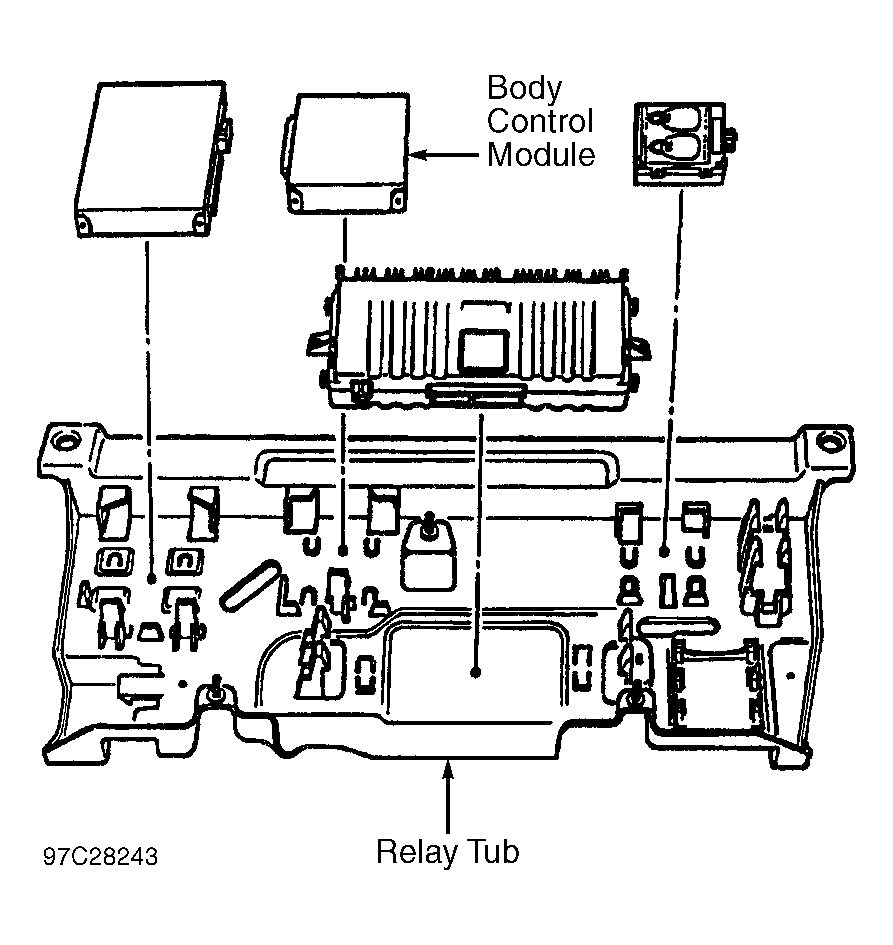

Fig 1: Identifying Body Control Module (BCM) Location

Courtesy of GENERAL MOTORS CORP.
