Installation Procedure

WARNING: This page is about a different car, the 1999 Cadillac Catera. However, it is still accessible from the selected car via links, so may be relevant.

Connect the wiring harness connector (2).

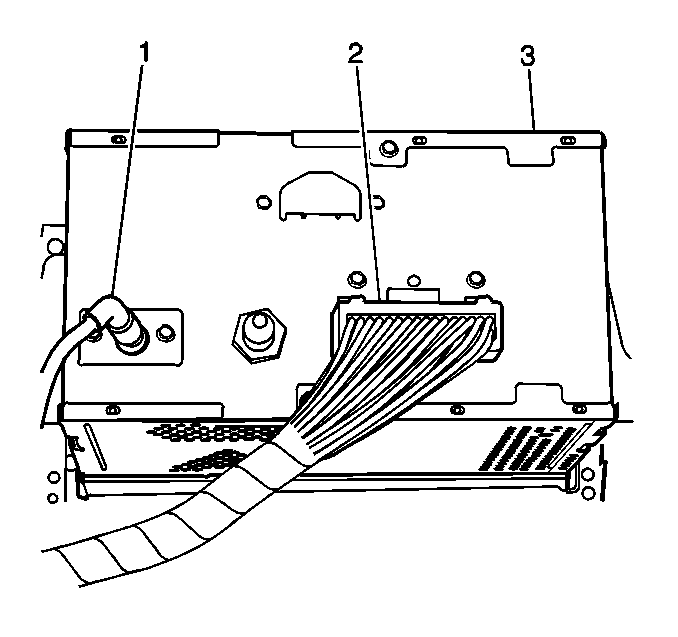

Fig 1: Identifying Harness Connector

Courtesy of GENERAL MOTORS CORP.

Connect the antenna connector (1).

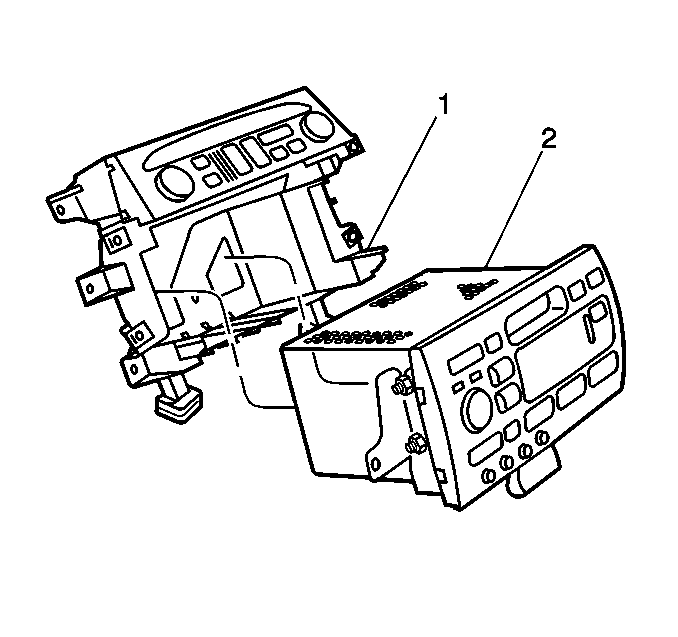

Fig 2: Identifying Radio & HVAC Control Head Mounting Bracket

Courtesy of GENERAL MOTORS CORP.

Install the radio (2) into the HVAC control head mounting bracket (1).

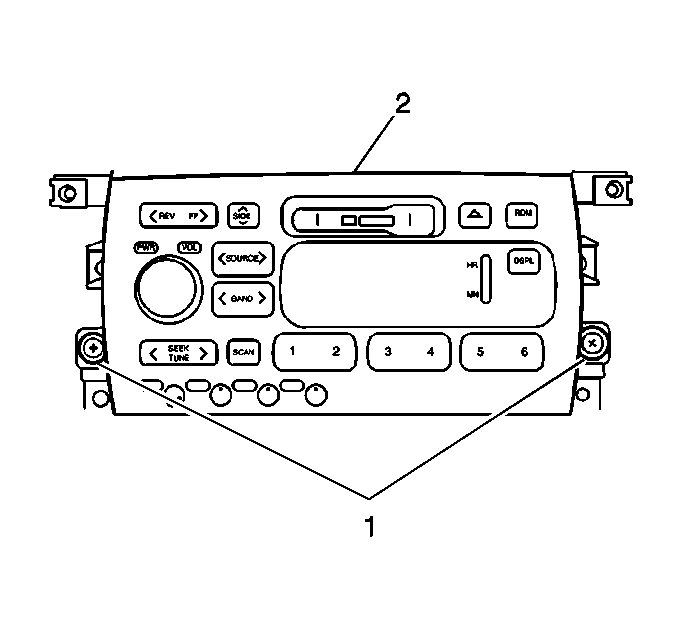

Fig 3: Identifying Radio & Mounting Screws

Courtesy of GENERAL MOTORS CORP.

Install the radio mounting screws (1) until fully seated and not stripped.
Install the I/P bezel.
Install the scan tool.
Select RADIO THEFT from the SPECIAL FUNCTIONS menu.
Follow the instructions on the screen.
