Removal Procedure

WARNING: This page is about a different car, the 1999 Cadillac Catera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat to rear window trim panel.
    2. Fig 1: Identifying Bose Module Harness Connector
    GM394363Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the two wiring harness connectors from the module (radio signal processor).
  3. Remove the radio speaker amplifier bracket (3) bolts from the rear window trim panel.
  4. Lower the amplifier bracket (3) from the rear parcel shelf.

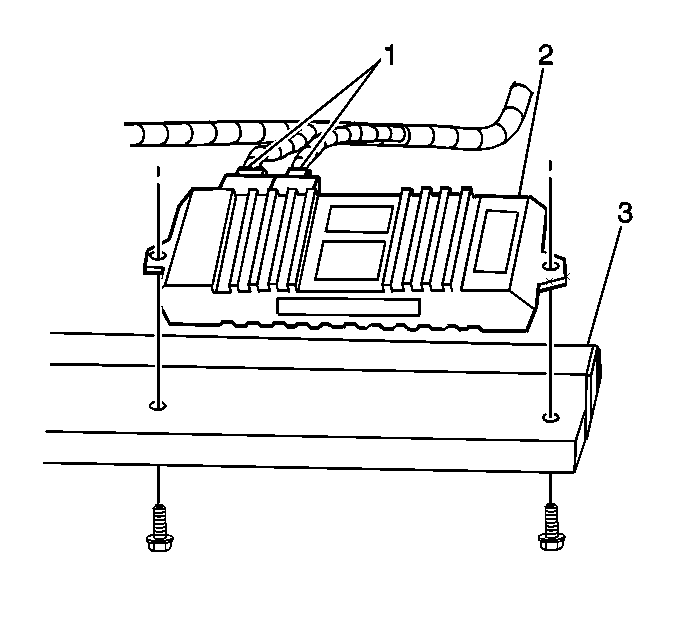

    5. Fig 2: Identifying Bose Processor Bolts
    GM394361Courtesy of GENERAL MOTORS CORP.
  5. Remove the two processor bolts.
  6. Remove the processor (2) from the amplifier bracket (3).
