Entertainment Connector End Views

WARNING: This page is about a different car, the 1999 Cadillac Catera. However, it is still accessible from the selected car via links, so may be relevant.

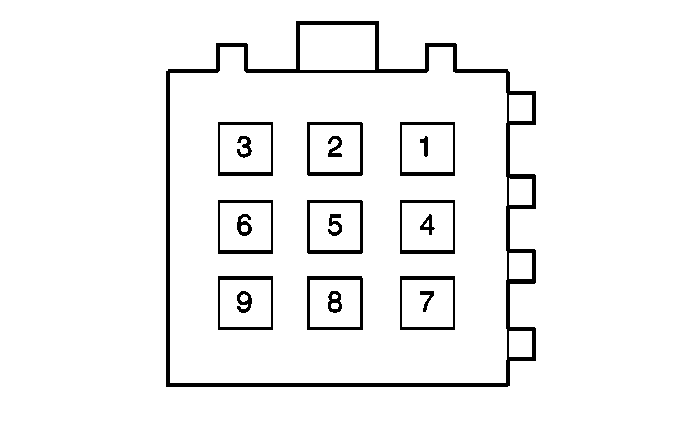

Fig 1: Cellular Telephone (Base System) Connector End View

Courtesy of GENERAL MOTORS CORP.

Cellular Telephone (Base System) Connector Information

Connector Part Information		• ZM 9-3 • 9 Way M
Pin	Wire Color	Circuit No.	Function
1	BRN	X410	B+ from fuse #14
2	BLK	F410	Ground to G201
3	BRN/WHT	XM161	Serial data (Class 2)
4	RED	A411	B+ from multifunction relay K134
5	WHT	M16	Cell phone negative output
6	BRN/WHT	XM16	Cell phone positive output
7-9	-	-	NOT USED

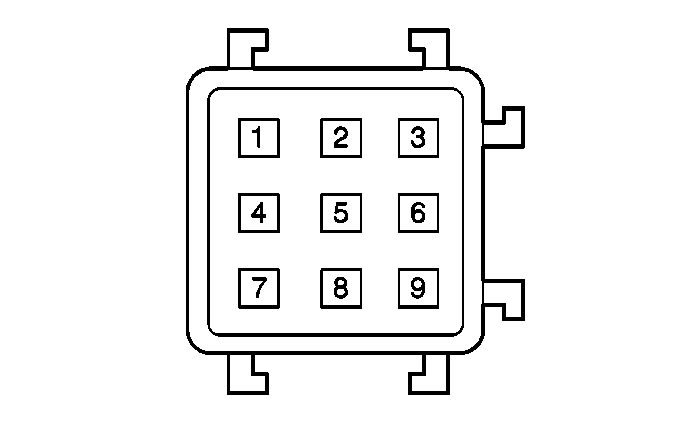

Fig 2: Cellular Telephone (Bose System) Connector End View

Courtesy of GENERAL MOTORS CORP.

Cellular Telephone (Bose System) Connector Part Information

Connector Part Information		• ZM 9-3 • 9 Way M
Pin	Wire Color	Circuit No.	Function
1	BRN	X10	B+ from fuse #14
2	BLK	F10	Ground to G201
3	BRN/WHT	XM15	Serial data (Class 2)
4	RED	A411	B+ from multifunction relay K134
5	WHT	M16	Cell phone negative output
6	BRN/WHT	XM16	Cell phone positive output
7-9	-	-	NOT USED

Fig 3: Compact Disk Changer (Base System) Connector End View

Courtesy of GENERAL MOTORS CORP.

Compact Disk Changer (Base System) Connector Part Information

Connector Part Information		• ZF 9-21 • 9 Way F
Pin	Wire Color	Circuit No.	Function
1	BLK	F10	CD common
2	WHT	M17	LH CD output signal
3	BLU	P15	RH CD output signal
4	-	S2	Shield Wire
5	RED	A211	B+ from fuse #8
6	BLK	F111	Ground to G201
7	YEL	B220	CD data bus
8-9	-	-	NOT USED

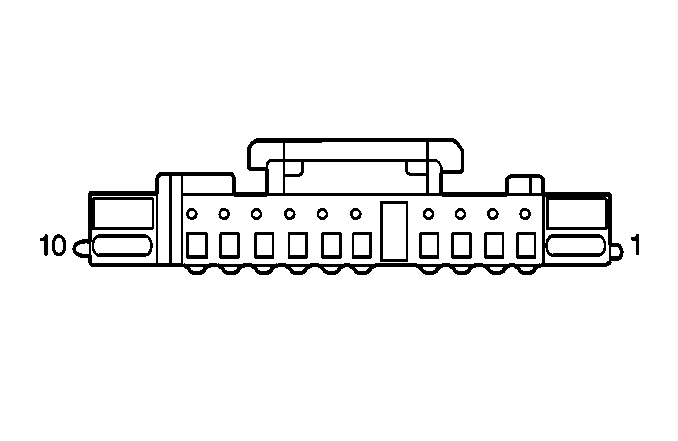

Fig 4: Compact Disk Changer (Bose System) Connector End View

Courtesy of GENERAL MOTORS CORP.

Compact Disk Changer (Bose System) Connector Part Information

Connector Part Information		• 12047531 • ASM 10F M/P 100 (BLK)
Pin	Wire Color	Circuit No.	Function
1	WHT	M45	LH CD output signal
2	BLU	P45	RH CD output signal
3	BLK	F45	CD common
4	-	S5	Shield Wire
5	RED	A201	B+ from fuse #8
6	-	-	NOT USED
7	BLK	F101	Ground to G201
8-9	-	-	NOT USED
10	YEL	B20	CD data bus

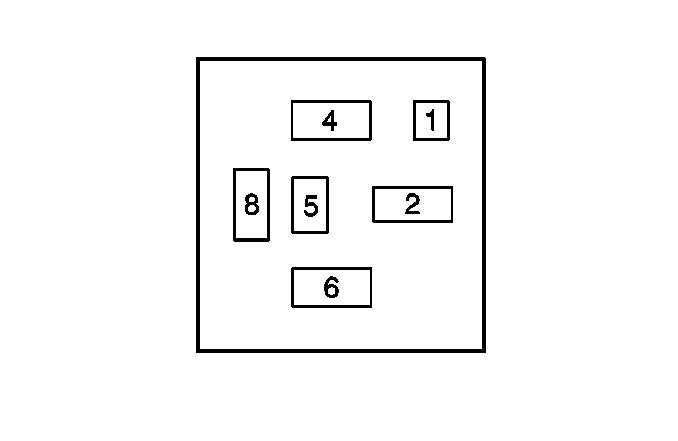

Fig 5: Heated Outside Rear View Mirror & Rear Window Defogger Relay K35 Connector End View

Courtesy of GENERAL MOTORS CORP.

Heated Outside Rear View Mirror & Rear Window Defogger Relay K35 Connector Part Information

Connector Part Information		• ZF 6-14 • 6 Way F
Pin	Wire Color	Circuit No.	Function
1	BRN	X84	B+ from Fuse #14
2	RED	A18	B+ from Fuse #34
3	-	-	NOT USED
4	BLK/WHT	FM14	Defogger Switch Input
5	BLK/WHT	FM10	Heated Mirrors On Signal
6	BLK	F84	Ground to G103
7	-	-	NOT USED
8	BRN	X15	Rear Defogger On Signal

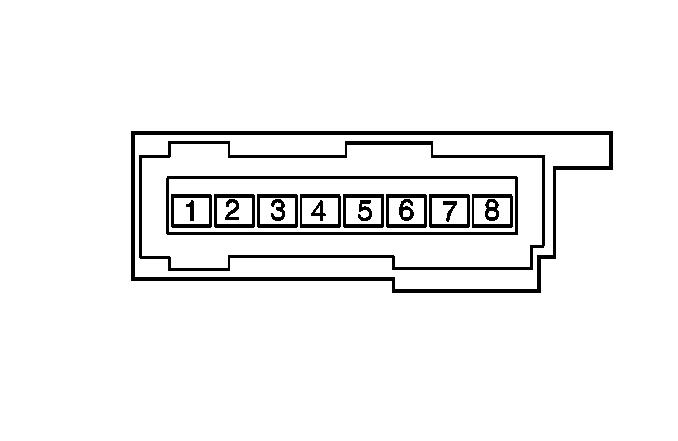

Fig 6: Inflatable Restraint Steering Wheel Module Coil Connector End View

Courtesy of GENERAL MOTORS CORP.

Inflatable Restraint Steering Wheel Module Coil Connector Part Information

Connector Part Information		• ZF 8-5 • 8 Way F
Pin	Wire Color	Circuit No.	Function
1	BLK	F122	Ground to G201
2	BRN/WHT	XM1	Horn relay control signal
3	RED/WHT	AM116	LED control signal
4	BLU/RED	PA101	Steering wheel switch signal
5-6	-	-	NOT USED
7	YEL/WHT	BM 30	Driver front airbag high signal
8	YEL	B30	Driver front airbag low signal

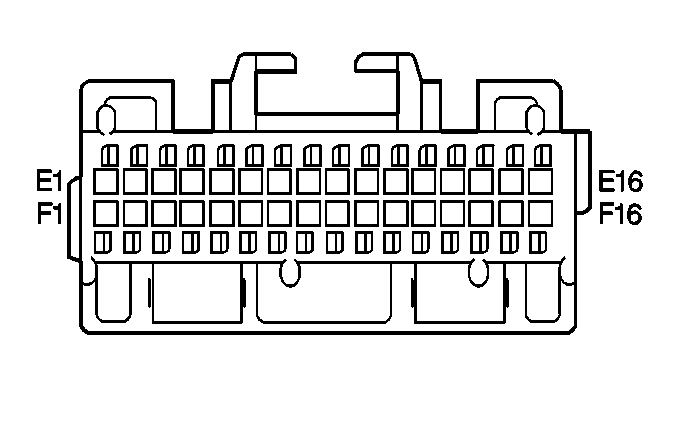

Fig 7: Radio AM/FM Stereo & Clock & Tape Player & Compact Disk Player (Base System) Connector End View

Courtesy of GENERAL MOTORS CORP.

Radio AM/FM Stereo & Clock & Tape Player & Compact Disk Player (Base System) Connector Part Information

Connector Part Information		• 12047531 • ASM 10F M/P 100 (BLK)
Pin	Wire Color	Circuit No.	Function
E1	YEL	B220	CD data bus
E2-E4	-	-	Not used
E5	GRY/YEL	RB40	Illumination signal
E6	-	-	Not used
E7	WHT	M16	Cellular phone negative input
E8	GRN/WHT	XM16	Cellular phone positive input
E9	-	-	Not used
E10	BLK	F10	CD Common
E11	WHT	M17	LH CD input signal
E12	GRN	U41	LH rear positive output
E13	BRN/GRN	XU42	LH rear negative output
E14	BRN/YEL	XB10	RH front negative output
E15	YEL	B8	RH front positive output
E16	BLK	F40 F49	Ground to G201
F1	RED	A52	B+ from multifunction relay K134
F2	-	-	Not used
F3	RED/WHT	AM110 AM116	Radio ON signal output
F4	GRY/GRN	RU72	B+ from fuse #26
F5	BLK	F49	Ground to G201
F6	BRN/WHT	XM830	Serial Data (Class 2)
F7	-	-	Not used
F8	BLU/RED	PA101	Steering wheel switch input
F9	BLK	B899	Ground to G201
F10	-	-	Not used
F11	BLU	P15	RH CD input signal
F12	BLU	P1	LH front positive output
F13	BRN/BLU	XP4	LH front negative output
F14	BRN/WHT	XM42	RH rear negative output
F15	WHT	M42	RH rear positive output
F16	-	-	Not used

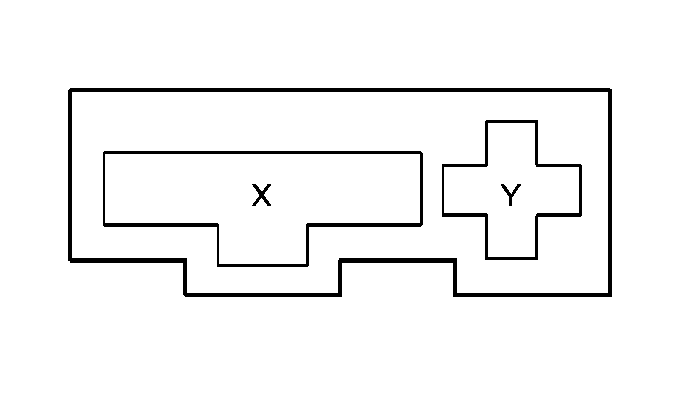

Fig 8: Radio, Antenna Amplifier Connector End View

Courtesy of GENERAL MOTORS CORP.

Radio, Antenna Amplifier Connector Part Information

Connector Part Information		• F 2-33 • 2 Way Female
Pin	Wire Color	Circuit No.	Function
X	BRN	X16	B+ When Defogger is ON
Y	RED/WHT	AM42	Radio ON Signal

Fig 9: Radio AM/FM Stereo & Clock & Tape Player & Compact Disk Player (Bose System) Connector End View

Courtesy of GENERAL MOTORS CORP.

Radio AM/FM Stereo & Clock & Tape Player & Compact Disk Player (Bose System) Connector Part Information

Connector Part Information		• 12110115 • ASM 32F M/P 100 (DK BLU)
Pin	Wire Color	Circuit No.	Function
E1	YEL	B20	Sound processor signal
E2-E4	-	-	Not used
E5	GRY/YEL	RB40	Illumination signal
E6-E11	-	-	Not used
E12	GRN	M92	LH negative output
E13	BRN/GRN	XM92	LH positive output
E14	BLK	S47	Shield wire
E15	BLK	S46	Shield wire
E16	BLK	F40 F49	Ground to G201
F1	RED	A52	B+ from multifunction relay K134
F2	-	-	Not used
F3	RED/WHT	AM110 AM116	Radio ON signal
F4	GRY/GRN	RU72	B+ from fuse #26
F5	BLK	F49	Ground to G201
F6	BRN/WHT	XM45	Serial Data (Class 2)
F7	-	-	Not used
F8	BLU/RED	PA101	Remote control signal
F9	BLK	B899	Remote control signal
F10	-	-	Not used
F11	BLK	S45	Shield wire
F12	WHT	M90	Chime positive output (not used)
F13	BRN/WHT	XM93	Chime negative output (not used)
F14	WHT	M91	RH negative output
F15	BRN/WHT	XM91	RH rear positive output
F16	-	-	Not used

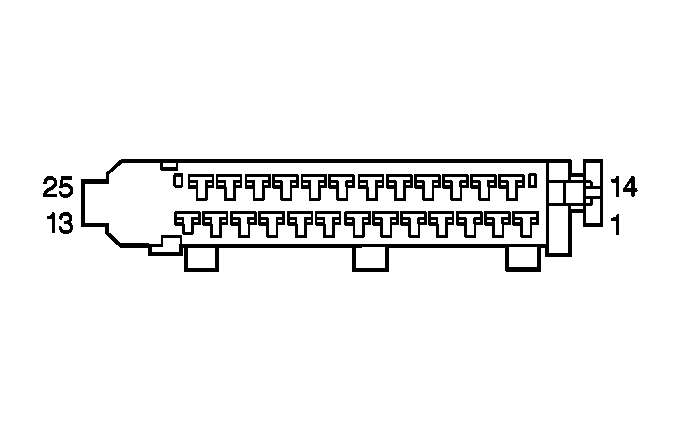

Fig 10: Radio Speaker Amplifier (Bose System) Connector End View

Courtesy of GENERAL MOTORS CORP.

Radio Speaker Amplifier (Bose System) Connector Part Information

Connector Part Information		• ZF 25-1 • 25 Way
Pin	Wire Color	Circuit No.	Function
1	GRN	U3	RH rear speaker signal output
2	BRN/GRN	XU3	RH rear speaker signal output
3	BRN/BLU	XP12	LH front negative input
4	BRN/YEL	XB12	RH front negative input
5	BRN/GRN	XU12	LH rear negative input
6	BRN/WHT	XM10	RH rear negative input
7	WHT	M9	RH rear positive input
8	GRN	U11	LH rear positive input
9	YEL	B11	RH front positive input
10	BLU	P11	LH front positive input
11-12	-	-	Not Used
13	RED	A200	B+ from fuse #6
14	WHT	M3	LH rear speaker signal output
15	BRN/WHT	XM3	LH rear speaker signal output
16	BRN/BLU	XP2	LH front door speaker output
17	BLU	P2	LH front door speaker output
18	YEL	B4	RH front door speaker output
19	BRN/YEL	XB11	RH front door speaker output
20	GRN	U43	LH rear door speaker output
21	BRN/GRN	XU43	LH rear door speaker output
22	WHT	M43	RH rear door speaker output
23	BRN/WHT	XM43	RH rear door speaker output
24	BLK	F90	Ground
25	RED	A150	Amp enable input

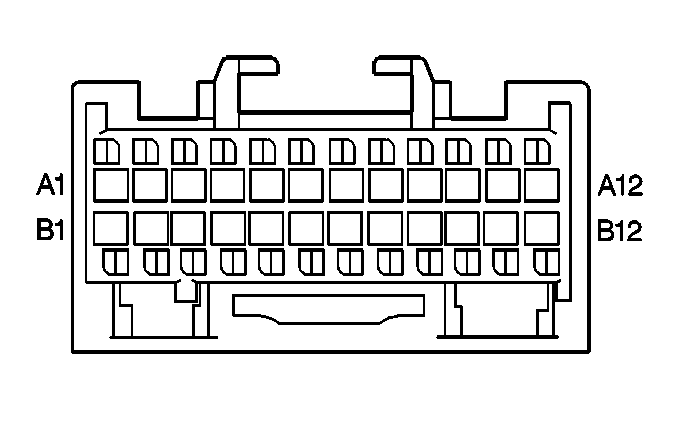

Fig 11: Sound Processor Interface Connector C1 Connector End View

Courtesy of GENERAL MOTORS CORP.

Sound Processor Interface Connector C1 Connector Part Information

Connector Part Information		• 12110206 • ASM 32F M/P 100 (LT BLU)
Pin	Wire Color	Circuit No.	Function
A1	BLK	F151	Ground
A2	BRN/WHT-	XM10	RH rear negative output
A3	WHT	M9	RH rear positive output
A4	BLK	SO3	Shield wire
A5	BRN/GRN	XU12	LH rear negative output
A6	GRN	U11	LH rear positive output
A7	BLK	SO4	Shield wire
A8	BRN/YEL	XM12	RH front negative output
A9	YEL	B11	RH front positive output
A10	BLK	SO1	Shield wire
A11	BRN.BLU	XP12	LH front negative output
A12	BLU	P11	LH front positive output
B1	RED	A205	B+ from multifunction relay K134
B2	-	-	Not used
B3	BRN/WHT	XM45	Serail data (Class 2)
B4	BRN/WHT	XM92	LH positive input
B5	WHT	M92	LH negative input
B6	WHT	M91	RH negative input
B7	BRN/WHT	XM91	RH positive input
B8	WHT	M45	LH CD positive input
B9	BLK	F45	CD common
B10	-	-	Not used
B11	BLU	P45	RH CD positive input
B12	BLK	SO2	Shield wire

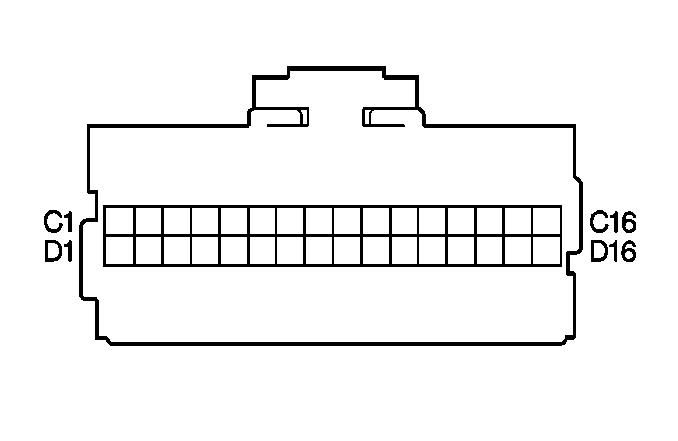

Fig 12: Sound Processor Interface Connector C2 Connector End View

Courtesy of GENERAL MOTORS CORP.

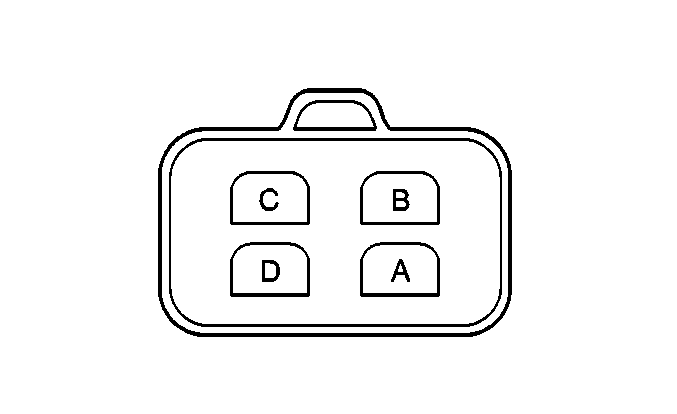

Fig 13: Steering Wheel Radio Control Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

Sound Processor Interface Connector C2 Connector Part Information

Connector Part Information		• ZPF 4-50 • 4 Way Female
Pin	Wire Color	Circuit No.	Function
A	GRY	R1	LED Output Control
B	BLU/RED	PA101	Steering Wheel Switch Input
C	-	-	Not Used
D	BRN	X1	Ground
