PCM Connector C1

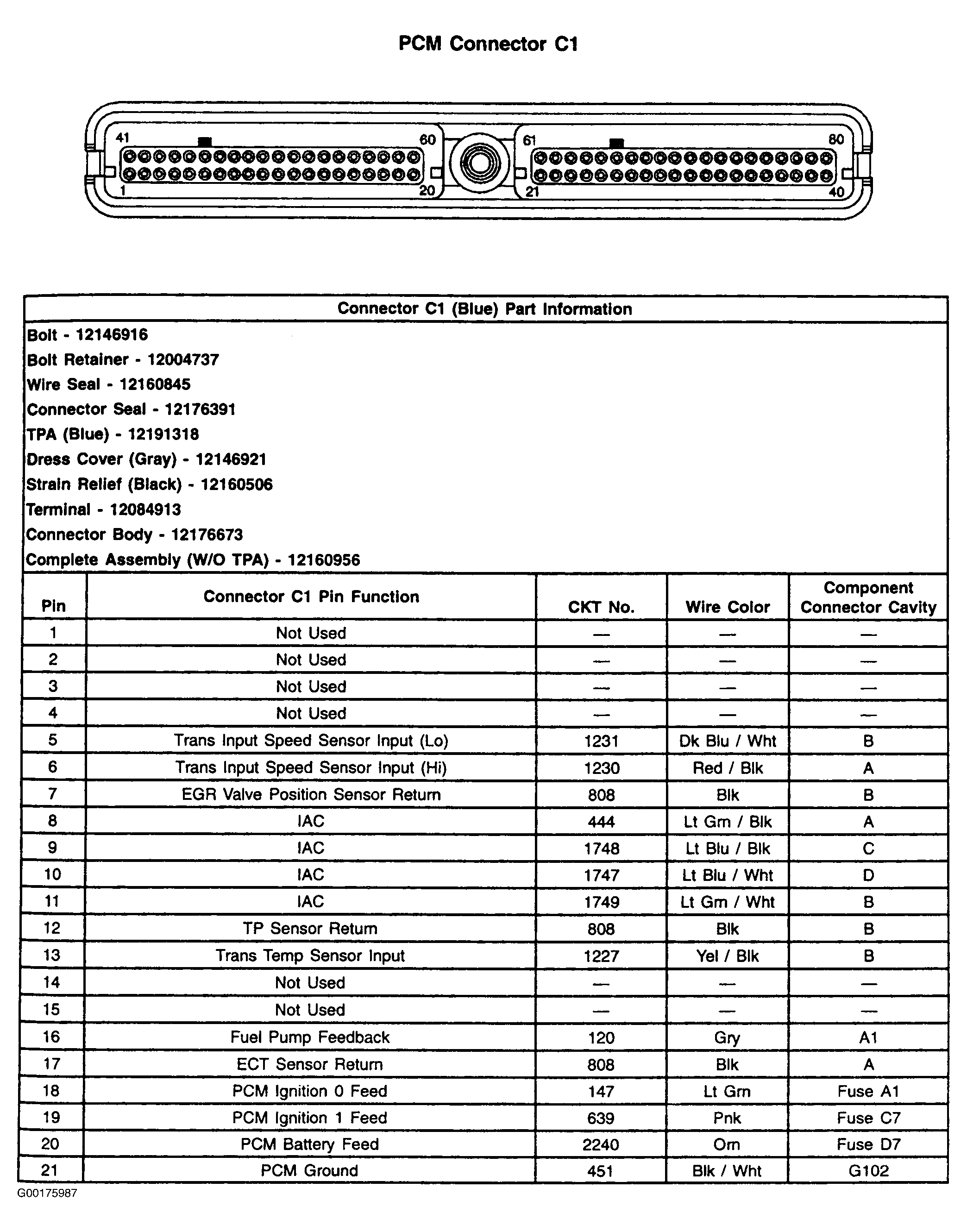

Fig 1: PCM C1 80-Pin Connector (Blue) - Terminal Identification & Legend (1 Of 3)
G00175987Courtesy of GENERAL MOTORS CORP.

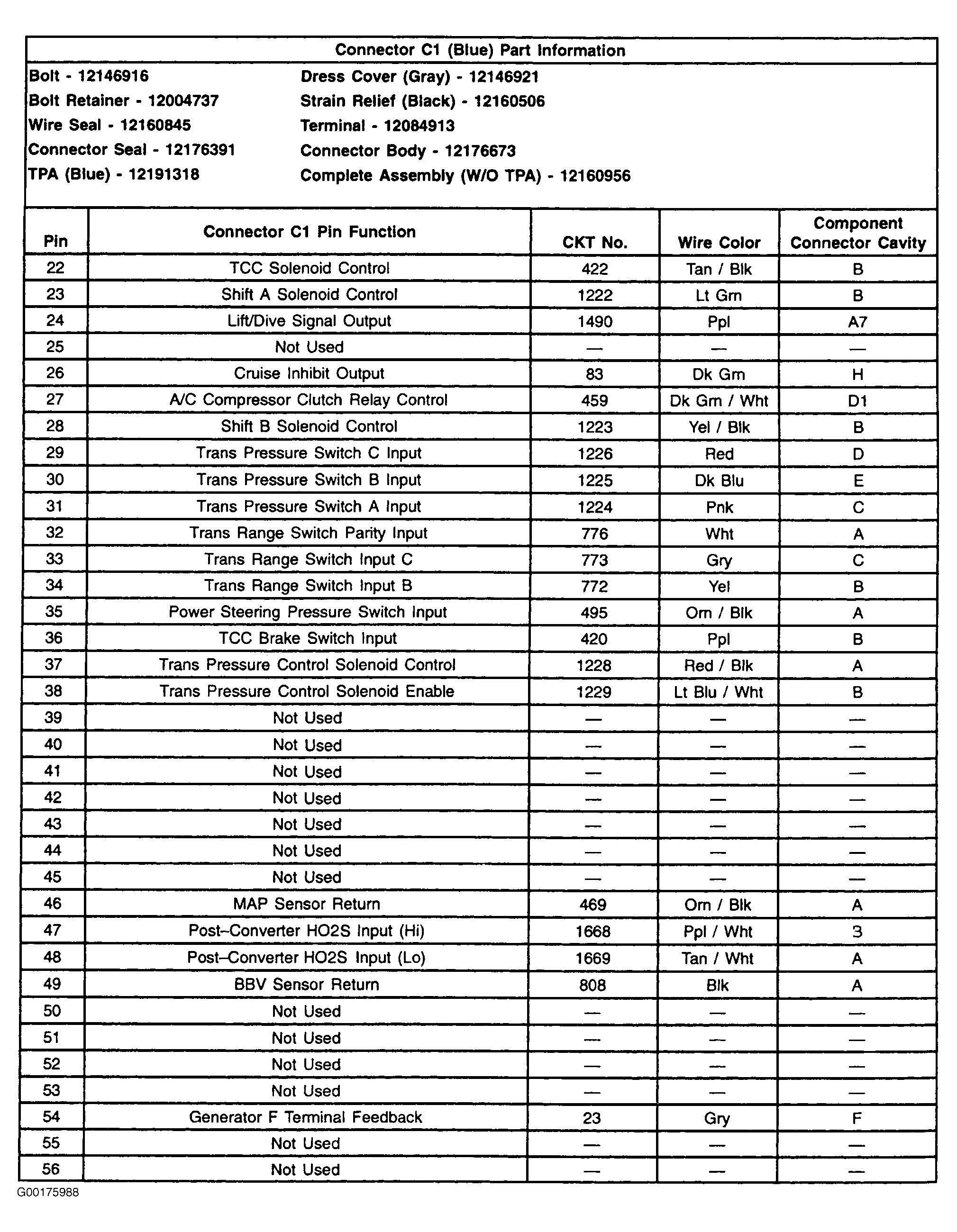

Fig 2: PCM C1 80-Pin Connector (Blue) - Legend (2 Of 3)
G00175988Courtesy of GENERAL MOTORS CORP.

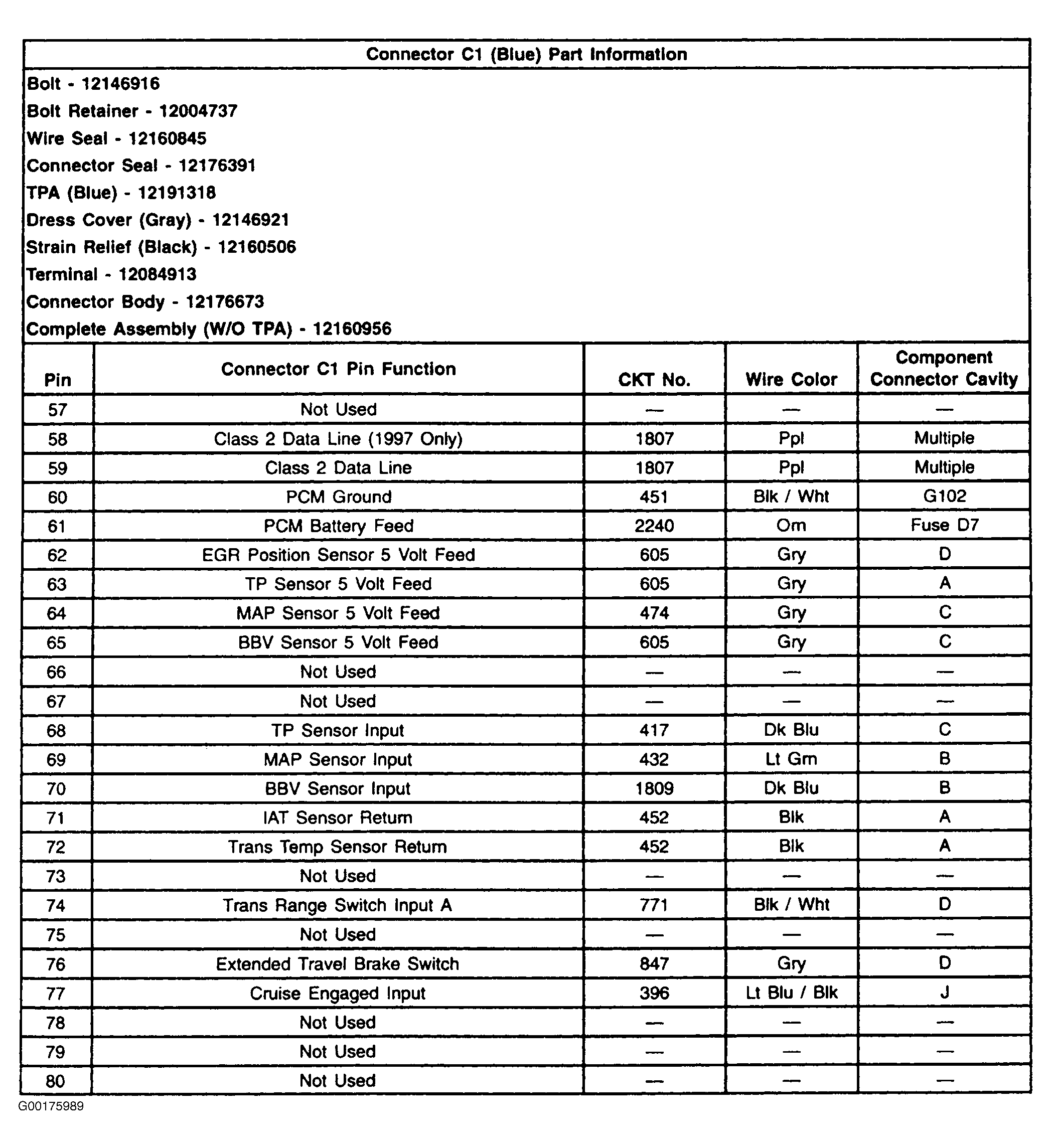

Fig 3: PCM C1 80-Pin Connector (Blue) - Legend (3 Of 3)
G00175989Courtesy of GENERAL MOTORS CORP.
