Connector Identification

WARNING: This page is about a different car, the 1998 Cadillac Eldorado and 1998 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to illustrations to identify SIR connector terminals. See Fig 1 -Fig 6 .

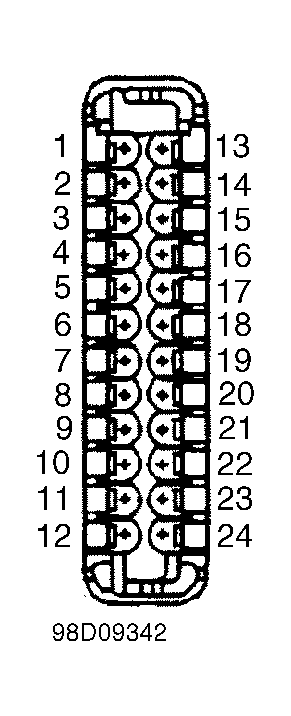

Fig 1: Identifying SDM Connector Terminals

G98D09342

Courtesy of GENERAL MOTORS CORP.

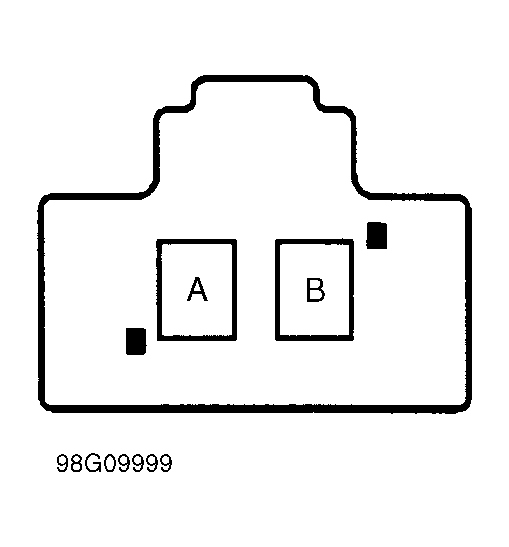

Fig 2: Identifying Front-End Discriminating Sensor Connector Terminals

G98G09999

Courtesy of GENERAL MOTORS CORP.

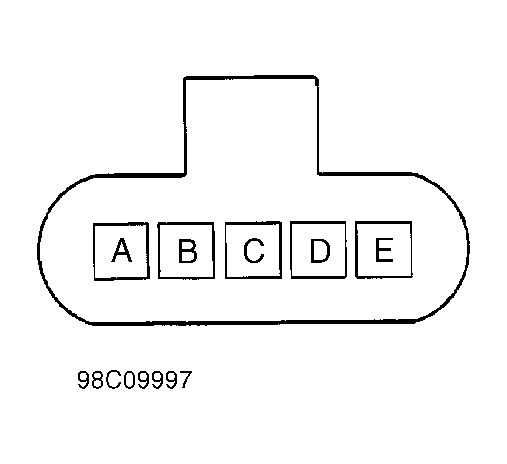

Fig 3: Identifying Side Impact Sensing Module Connector Terminals

G98C09997

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying SIR Coil Connector Terminals

G98D09276

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Passenger-Side Air Bag Connector Terminals

G98H09278

Courtesy of GENERAL MOTORS CORP.

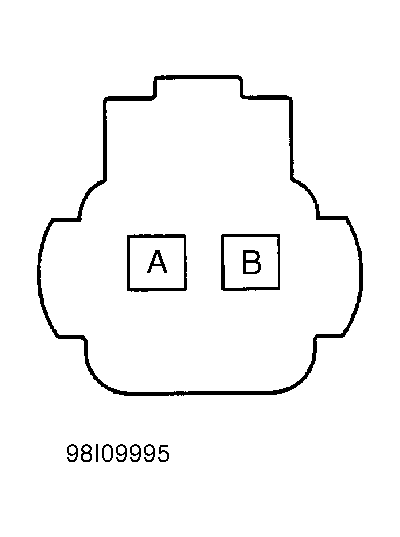

Fig 6: Identifying Side Impact Air Bag Connector Terminals

G98I09995

Courtesy of GENERAL MOTORS CORP.
