Radio Amplifier - C1

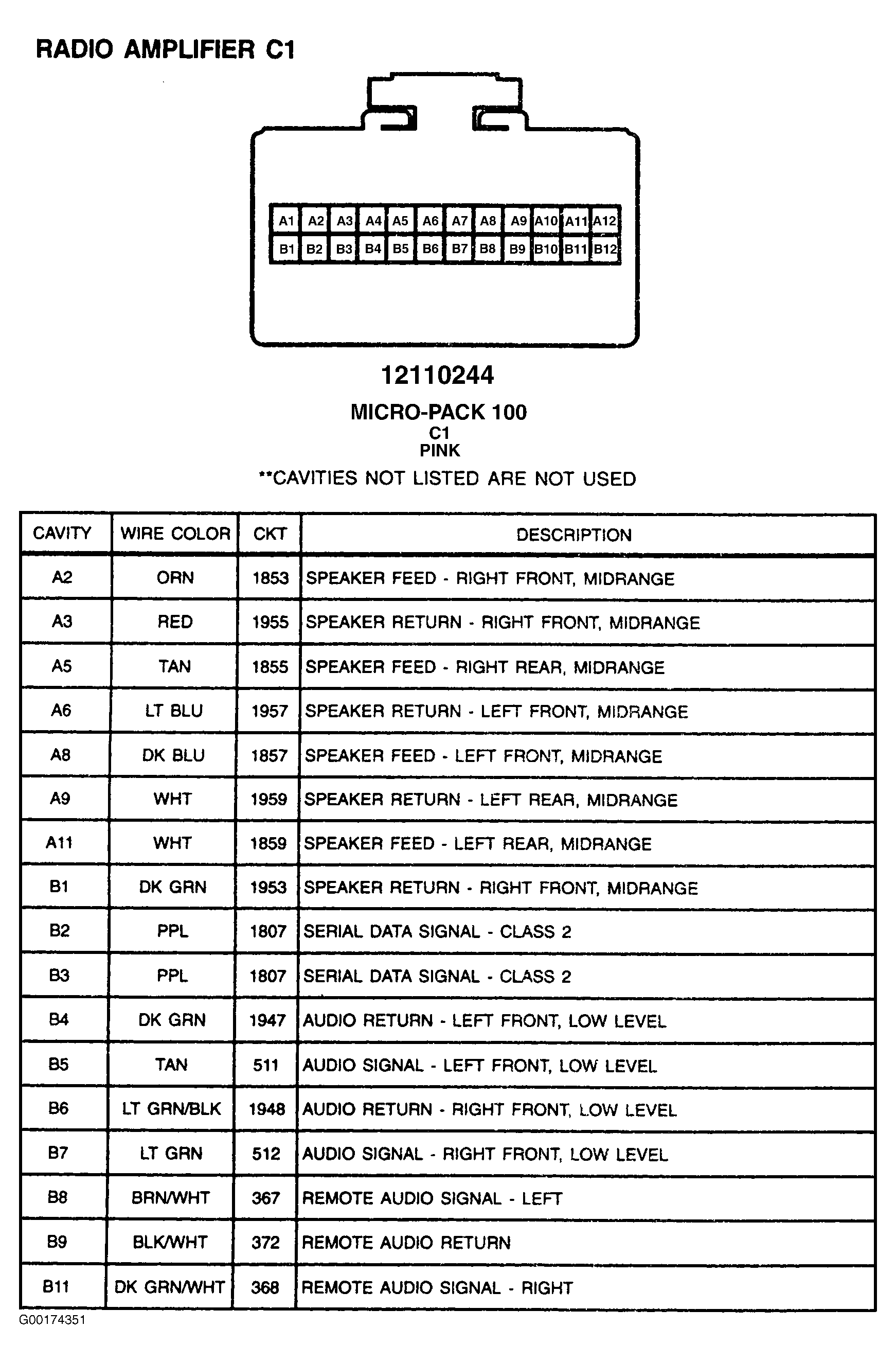

Fig 1: Radio Amplifier (C1) - 24-Pin Connector (Pink)

G00174351

Courtesy of GENERAL MOTORS CORP.
