Heater & A/C Programmer - C1

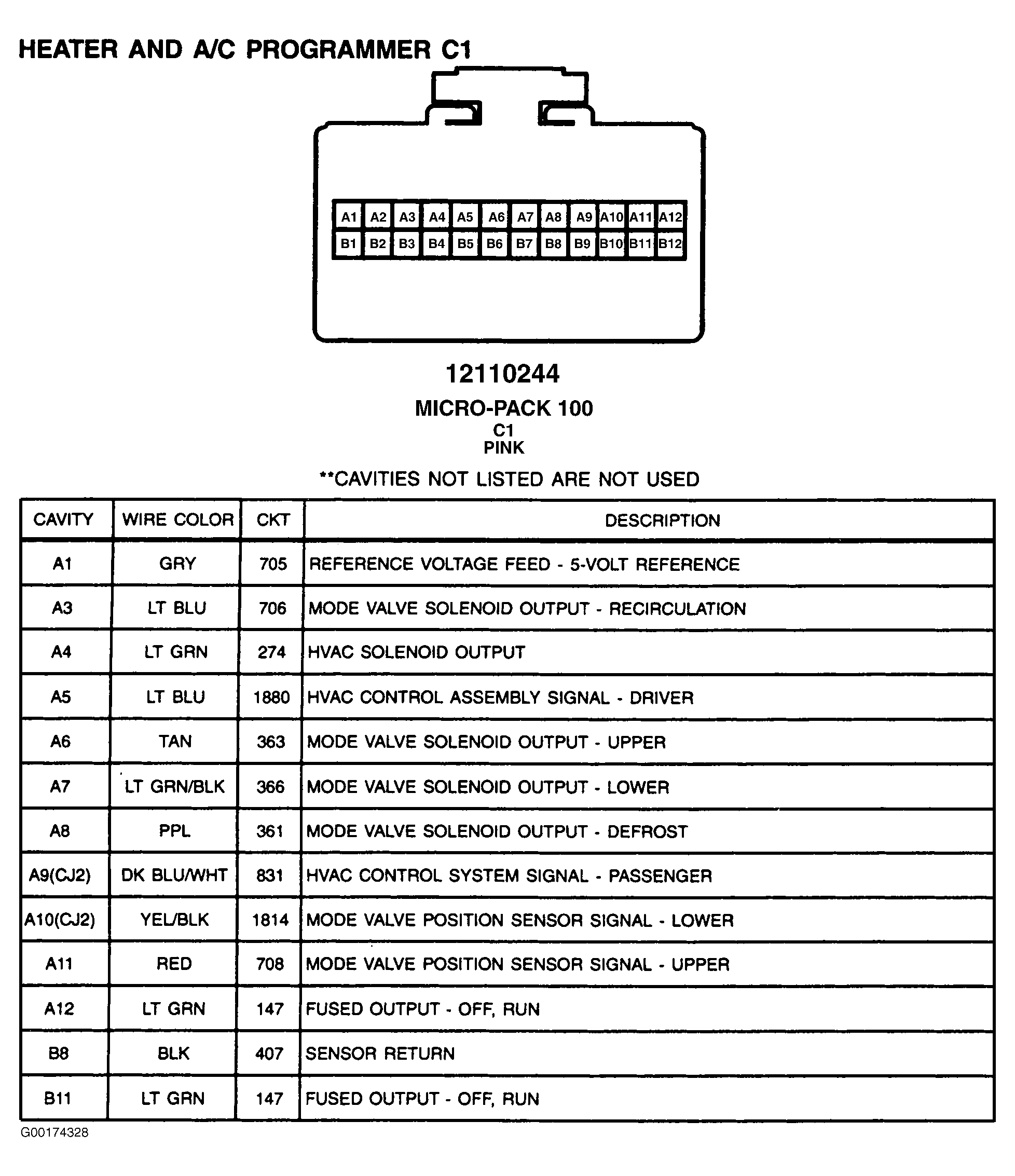

Fig 1: Heater & A/C Programmer C1 - 24-Pin Connector (Pink)

G00174328

Courtesy of GENERAL MOTORS CORP.
