Headlamp Switch - C2

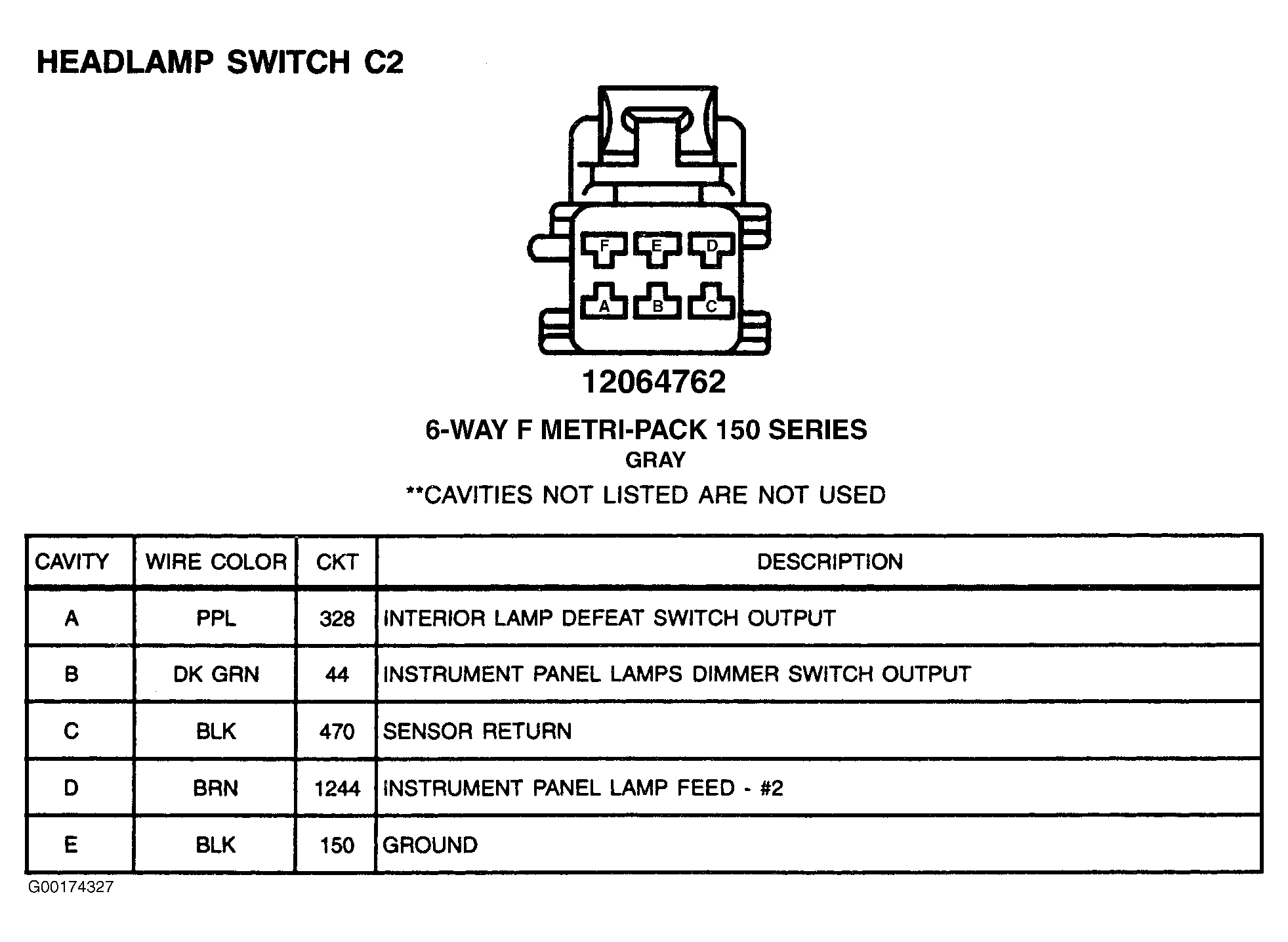

Fig 1: Headlamp Switch C2 - 6-Pin Connector (Gray)

G00174327

Courtesy of GENERAL MOTORS CORP.
