Connector Identification

WARNING: This page is about a different car, the 1998 Cadillac Catera. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to illustrations to identify SIR connector terminals. See Fig 1 -Fig 4 .

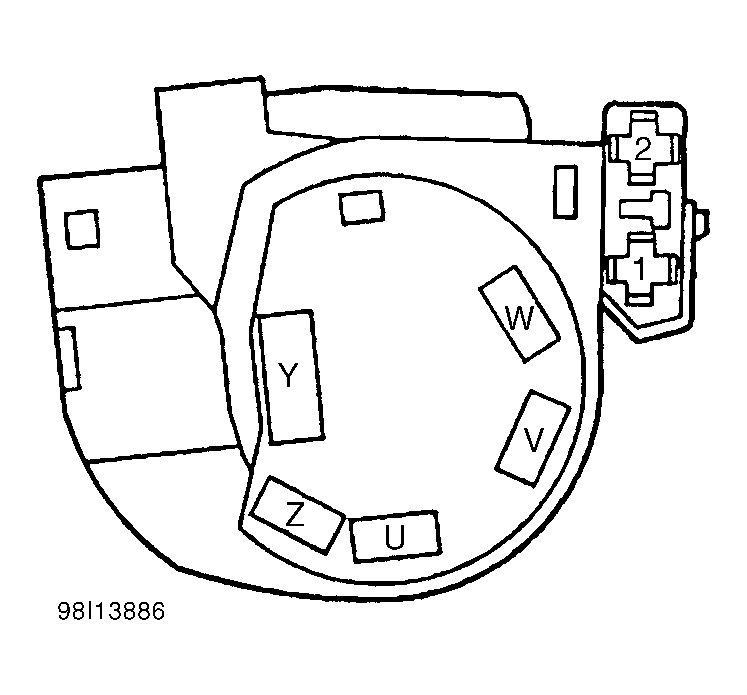

Fig 1: Identifying Ignition Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.

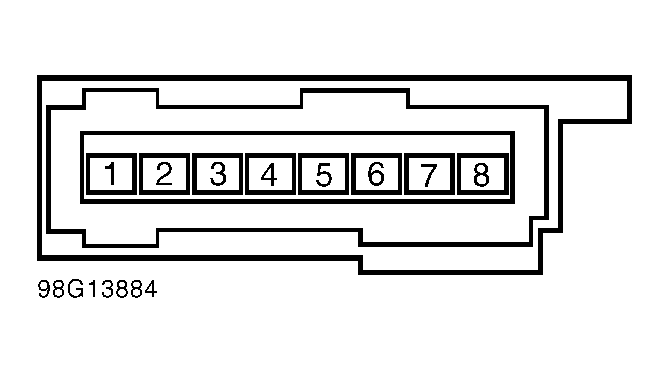

Fig 2: Identifying Sensing & Diagnostic Module (SDM) Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying SIR Coil Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Passenger-Side Air Bag Connector Terminals

Courtesy of GENERAL MOTORS CORP.
