Camber Adjustment (Rear)

Loosen bolts securing front and rear ends of lower control arm to frame. See Fig 1 . Move lower control arm inward or outward as necessary to adjust camber. Tighten bolts to specification. See TORQUE SPECIFICATIONS  .

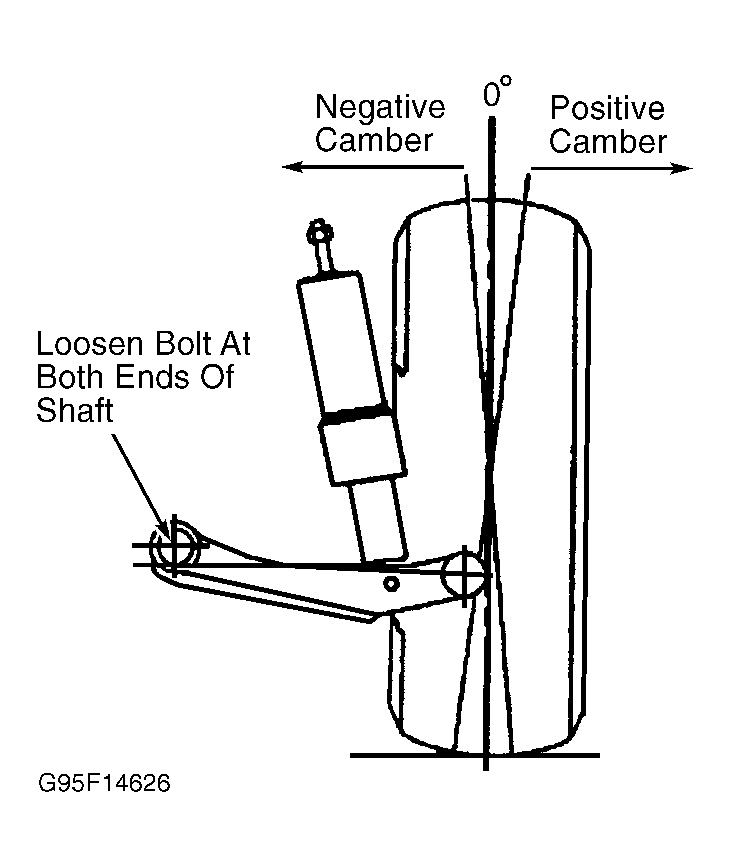

Fig 1: Adjusting Rear Camber

Courtesy of GENERAL MOTORS CORP.
