Side Impact Sensing Module (SISM): Installation
WARNING: This page is about a different car, the 1997 Cadillac Seville, 1997 Cadillac Eldorado, and 1997 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

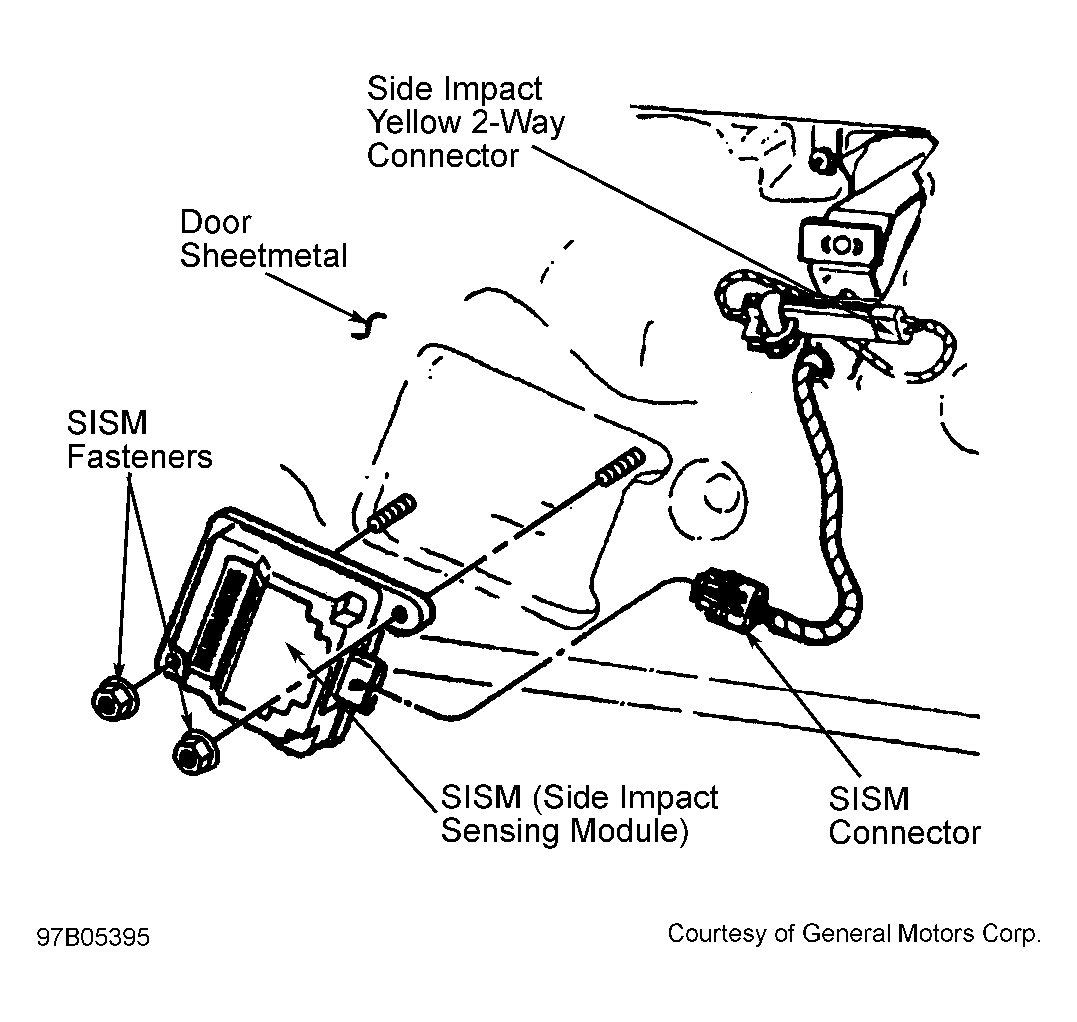

- Mount module on vehicle, ensuring connector is toward rear of vehicle. Install SDM fasteners. See Figure . Tighten to specification. See TORQUE SPECIFICATIONS . Reconnect electrical connector and CPA.
- Reactivate air bag system. See ACTIVATING SYSTEM . Ensure system is functioning properly. See SYSTEM OPERATION CHECK .
