Front End Discriminating Sensor: Removal
WARNING: This page is about a different car, the 1997 Cadillac Seville, 1997 Cadillac Eldorado, and 1997 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, read air bag service precautions section. See SERVICE PRECAUTIONS . Disable air bag system. See DISABLING SYSTEM .

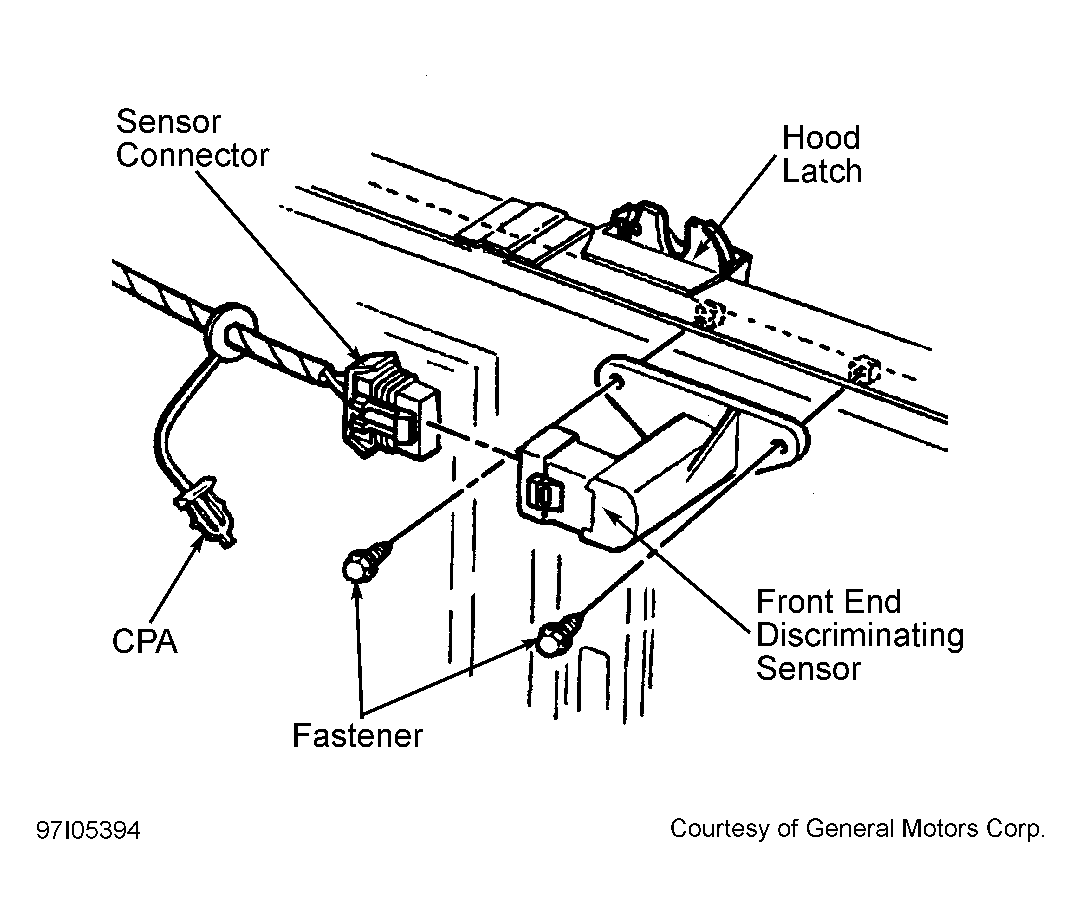

- Remove underhood fuse block cover. Remove CPA clip and disconnect electrical connector. Remove plastic radiator support cover and air cleaner housing cover. Remove sensor pigtail clips and sensor fasteners. Remove sensor. See Fig 1 .
