Driver-Side Air Bag Module: Removal

WARNING: This page is about a different car, the 1997 Cadillac Seville, 1997 Cadillac Eldorado, and 1997 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, read air bag service precautions section. See SERVICE PRECAUTIONS . Disable air bag system. See DISABLING SYSTEM .
Loosen 4 screws from back of steering wheel until back of air bag module can be accessed. See Fig 1 . Disconnect horn contact by pushing slightly and twisting counterclockwise. Disconnect CPA and coil assembly connector from air bag module. Remove air bag module.

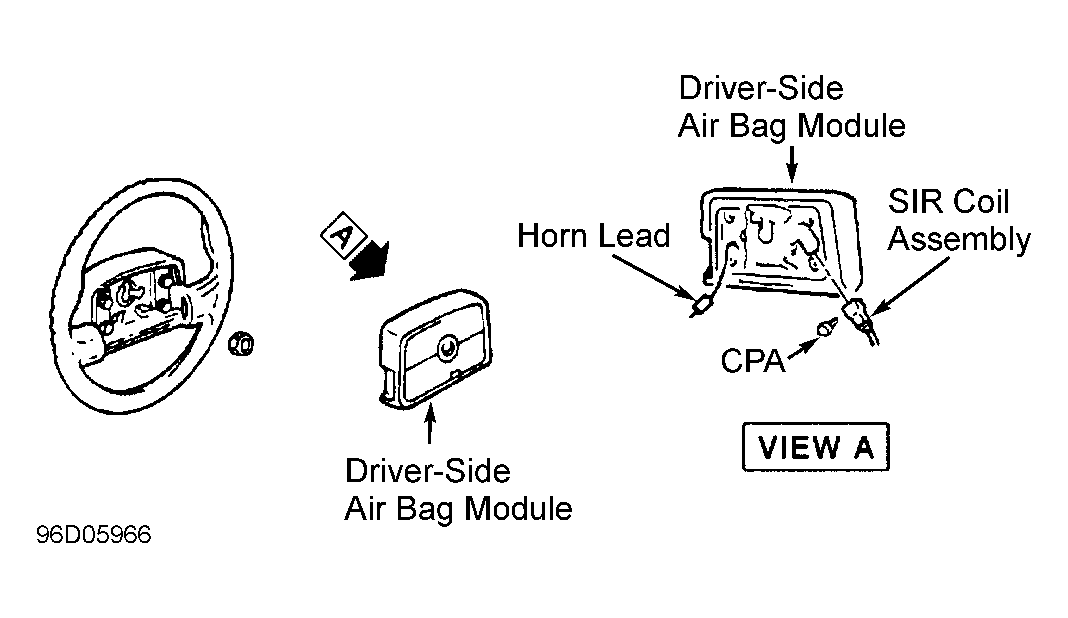

Fig 1: Removing Driver-Side Air Bag Module

Courtesy of GENERAL MOTORS CORP.
