Trunk Compartment Micro Relay Center

NOTE: Trunk compartment relay center is located in trunk, behind rear seat. See Figure.

Fig 1: Locating Trunk Compartment Micro Relay Center

Courtesy of GENERAL MOTORS CORP.

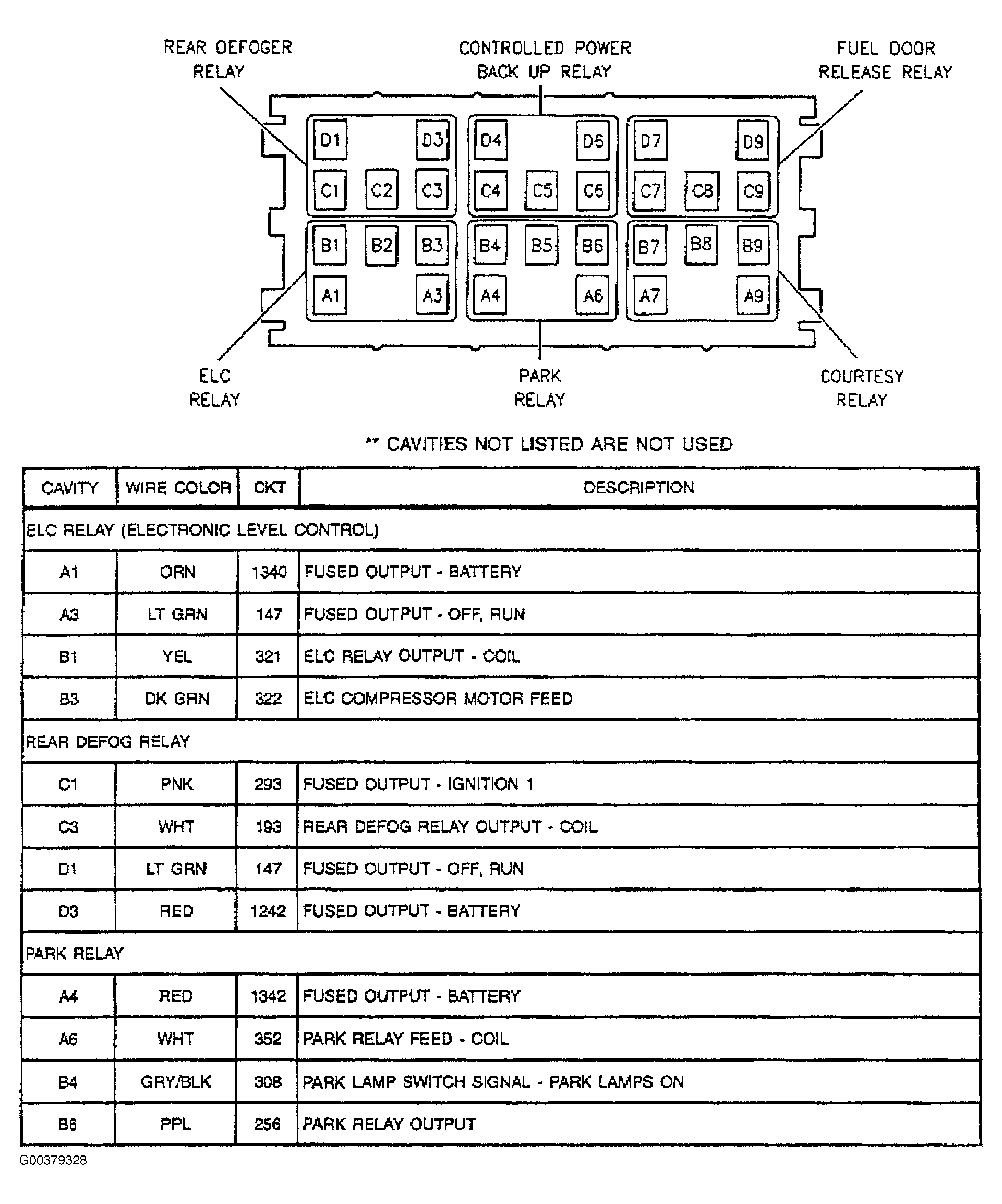

Fig 2: Identifying Trunk Compartment Micro Relay Center No. 1 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

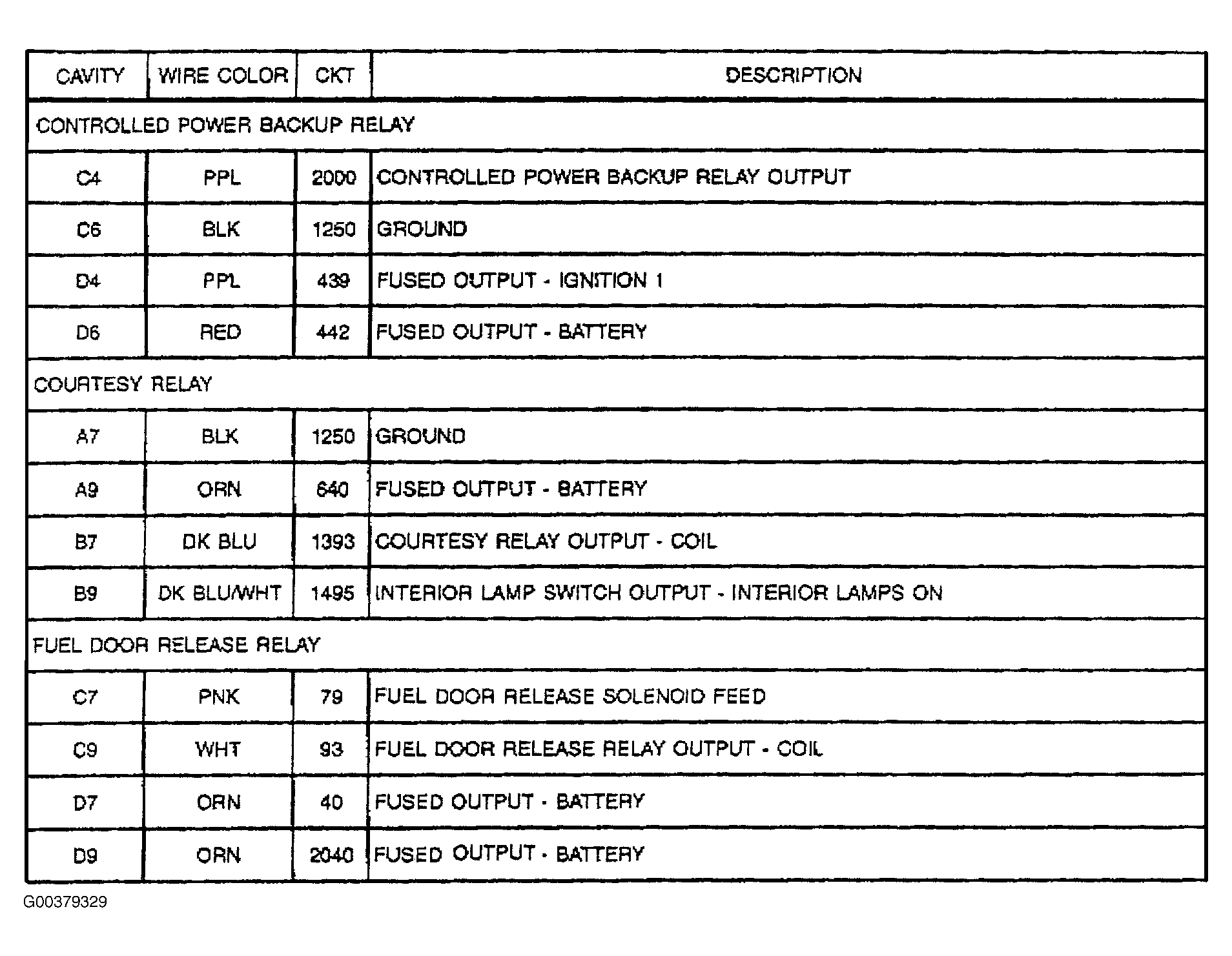

Fig 3: Identifying Trunk Compartment Micro Relay Center No. 1 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

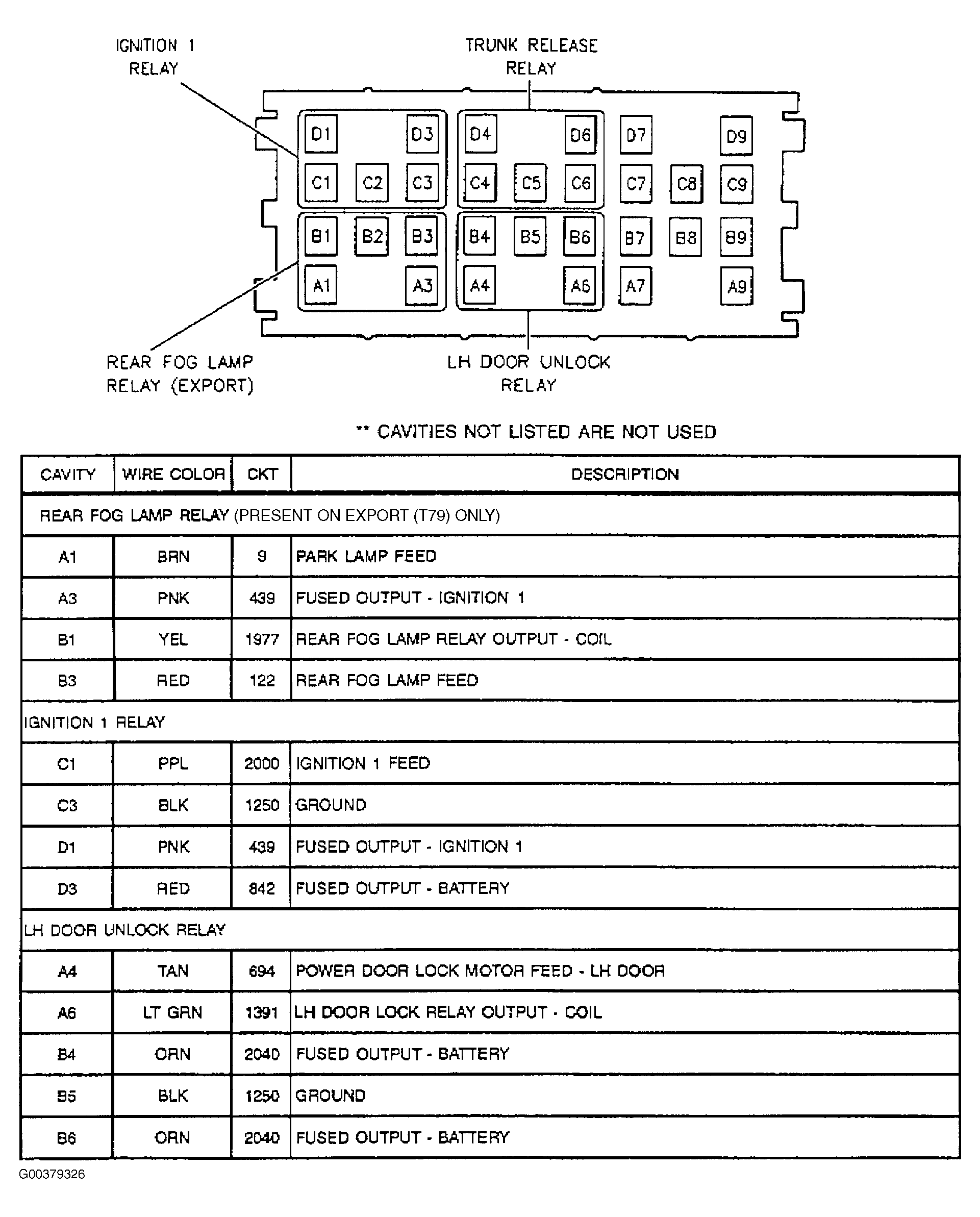

Fig 4: Identifying Trunk Compartment Micro Relay Center No. 2 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

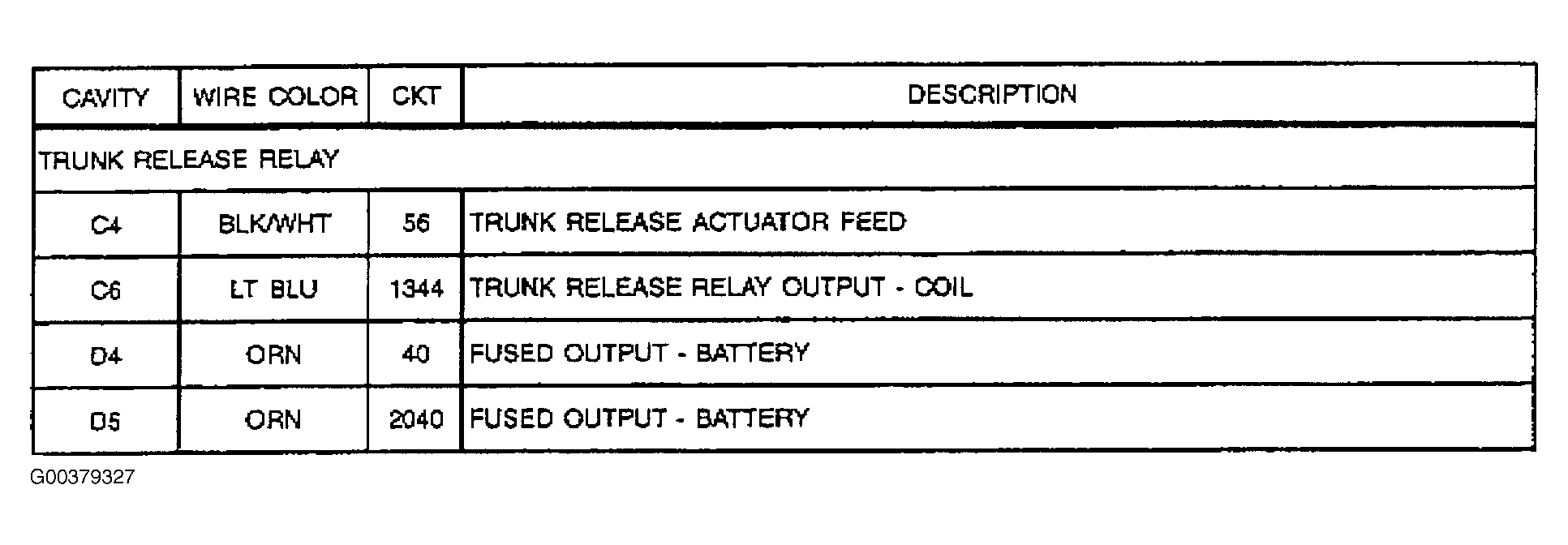

Fig 5: Identifying Trunk Compartment Micro Relay Center No. 2 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

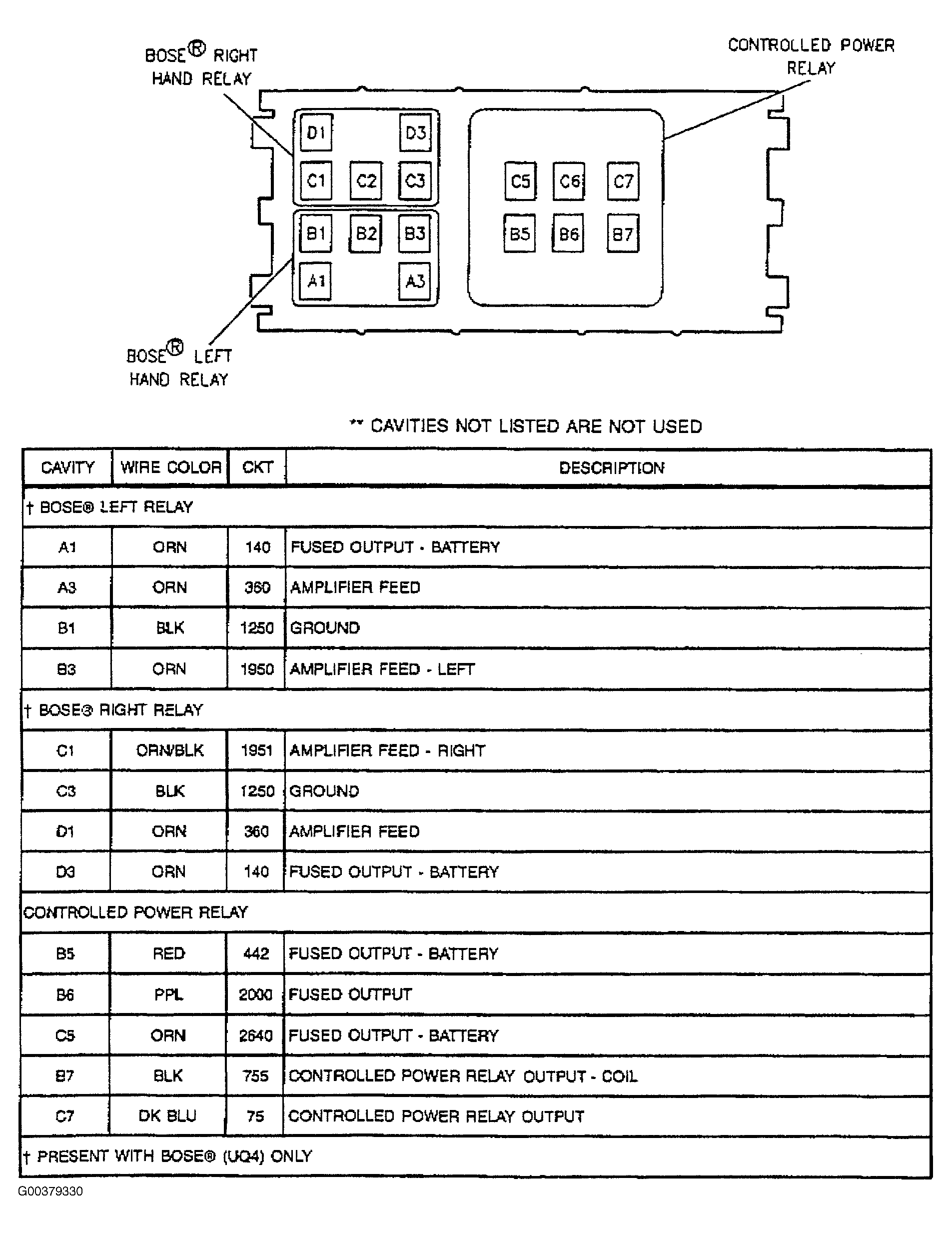

Fig 6: Identifying Trunk Compartment Micro Relay Center No. 3

Courtesy of GENERAL MOTORS CORP.
