Trunk Compartment Fuse Block

NOTE: Trunk compartment fuse block is located in trunk, behind rear seat. See Fig 1.

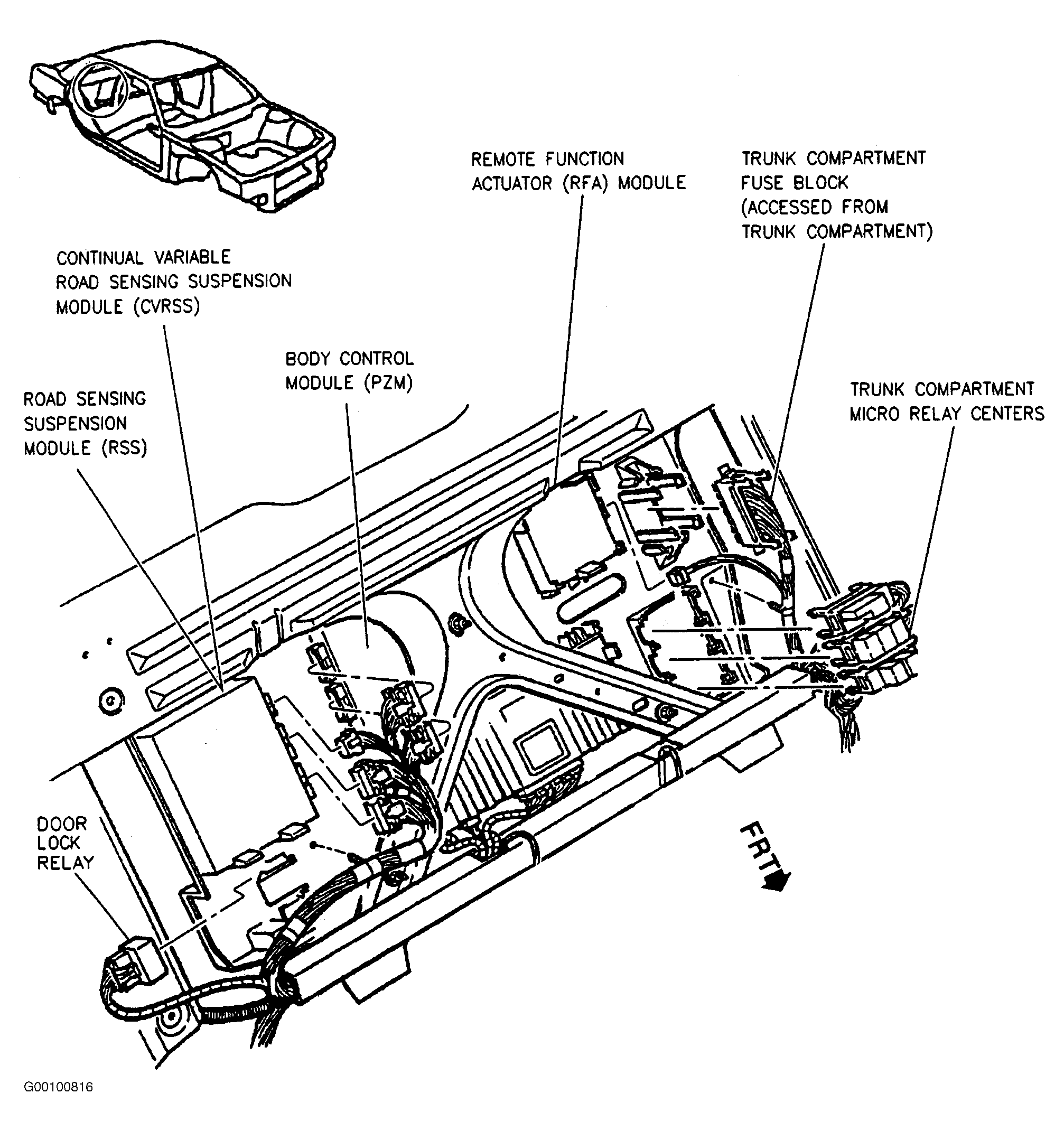

Fig 1: Locating Trunk Compartment Fuse Block

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Trunk Compartment Fuse Block Components

Courtesy of GENERAL MOTORS CORP.
