Engine Compartment Maxi Fuse Block

NOTE: Maxi fuse blocks are located forward of left front strut tower, near engine compartment fuse/relay center. See Figure.

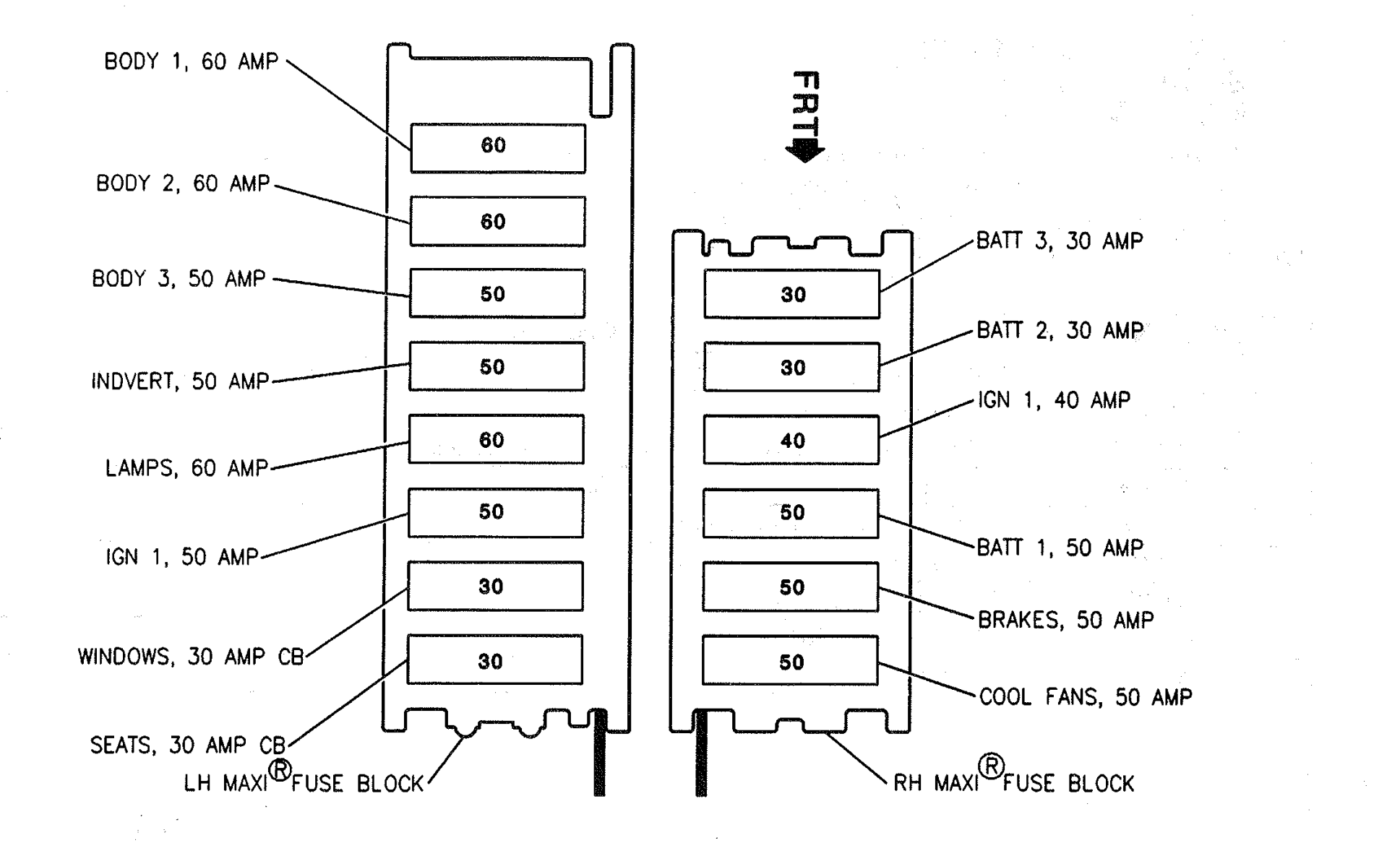

Fig 1: Identifying Maxi Fuse Block Components
G00525409Courtesy of GENERAL MOTORS CORP.
