Engine Compartment Fuse/Relay Center

NOTE: Engine compartment fuse/relay center is located on driver's side of engine compartment, next to strut tower. See Fig 1.

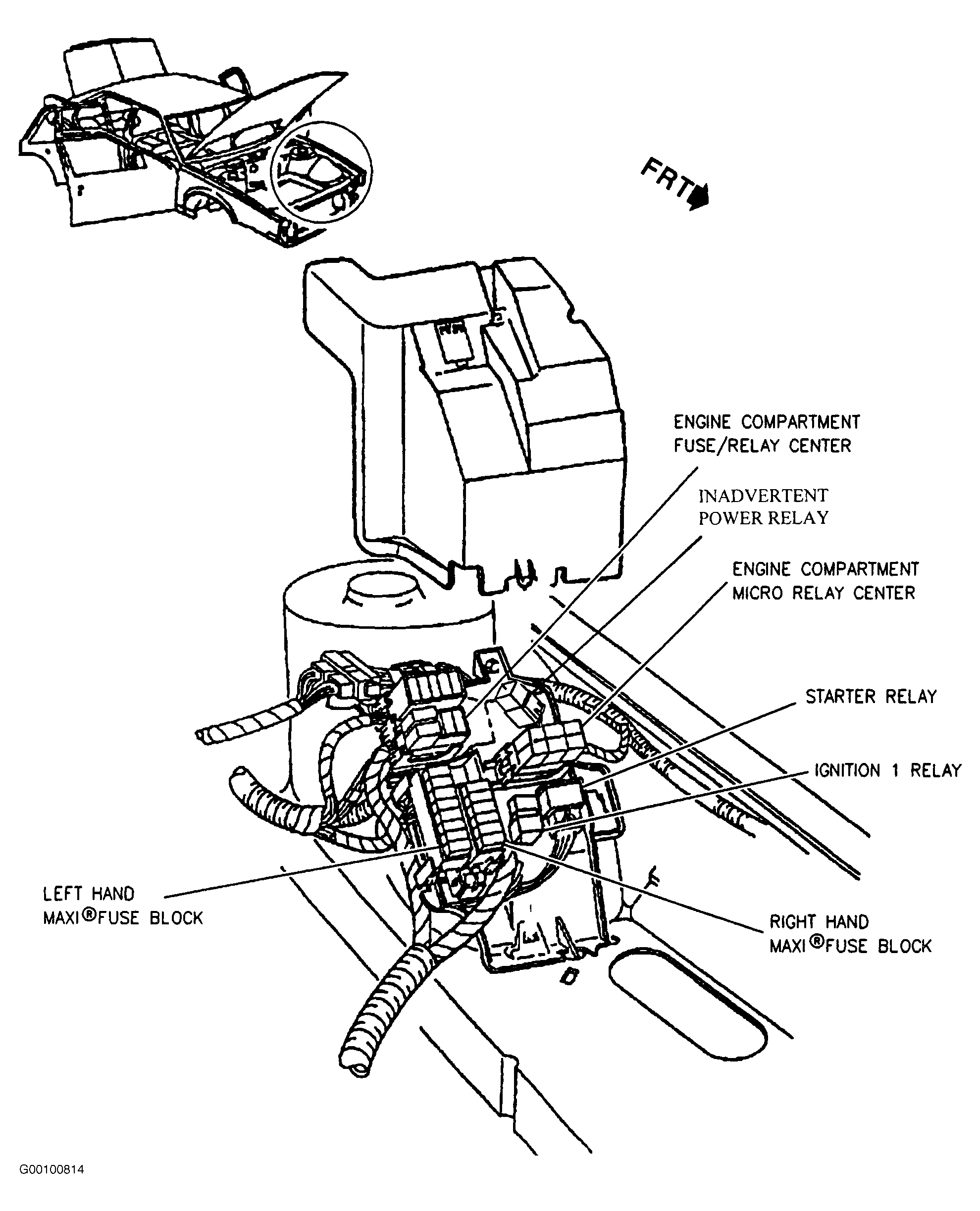

Fig 1: Locating Engine Compartment Fuse/Relay Center

Courtesy of GENERAL MOTORS CORP.

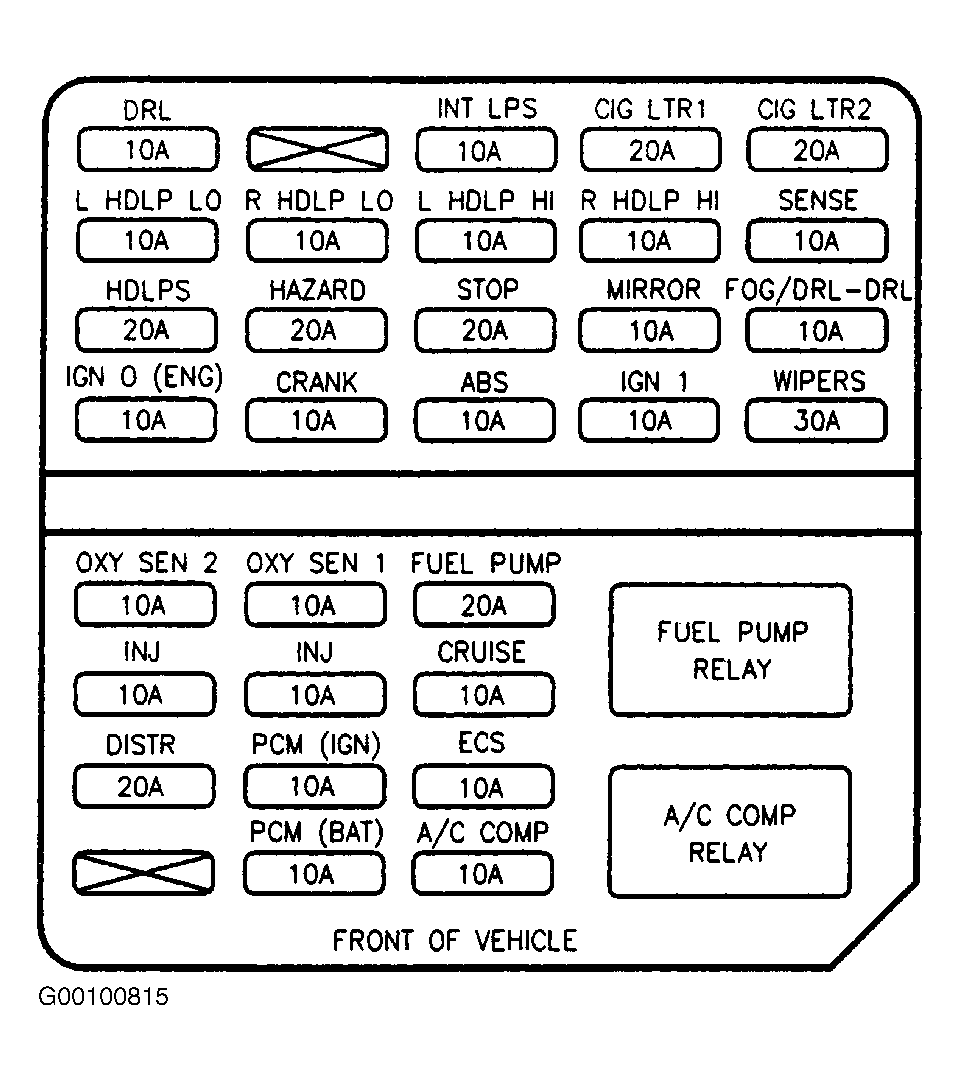

Fig 2: Identifying Engine Compartment Fuse/Relay Center Components

Courtesy of GENERAL MOTORS CORP.
