Component Locations

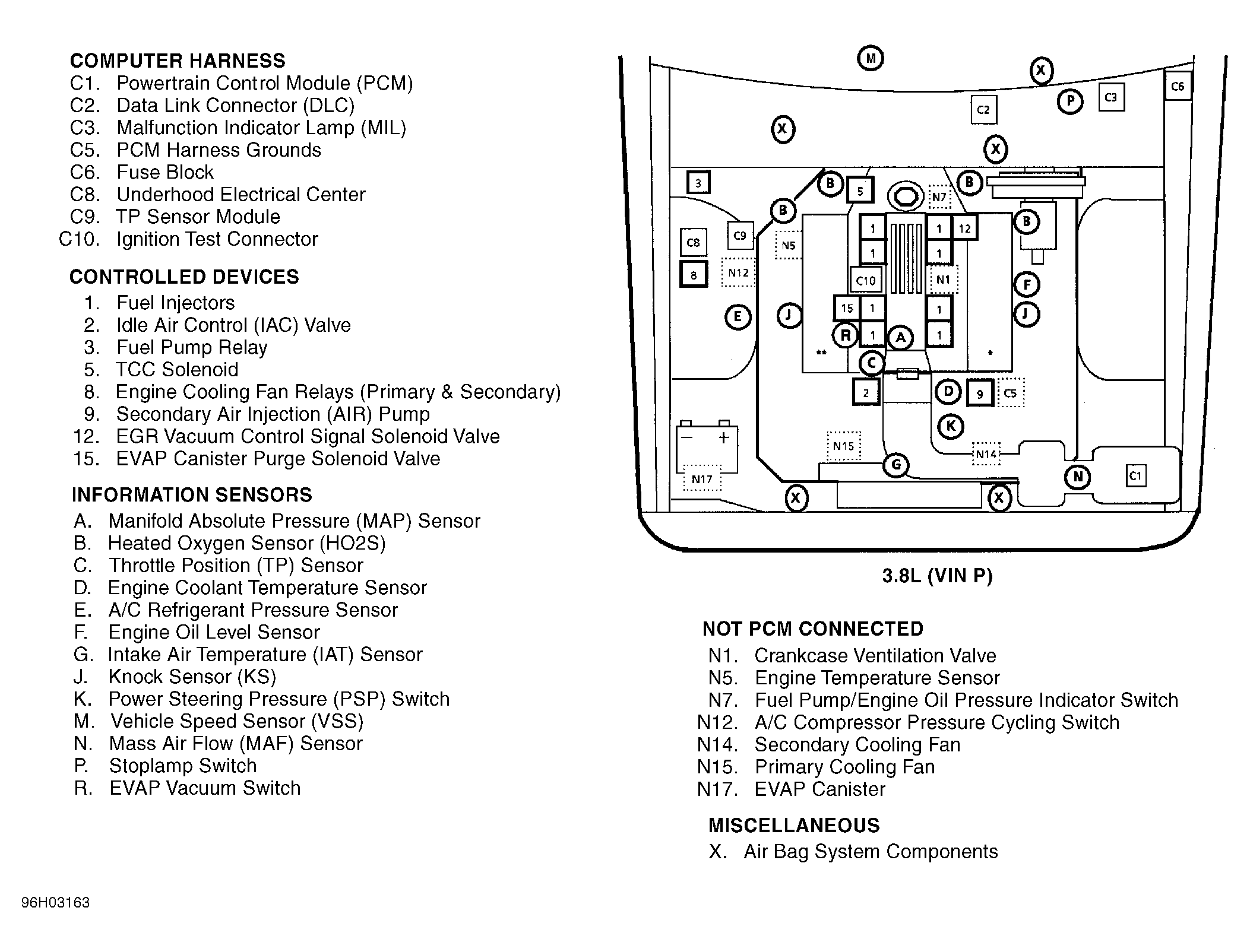

COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Data Link Connector | Under Left Side Of Dash, To Right Of Steering Column. See Fig 1 . |

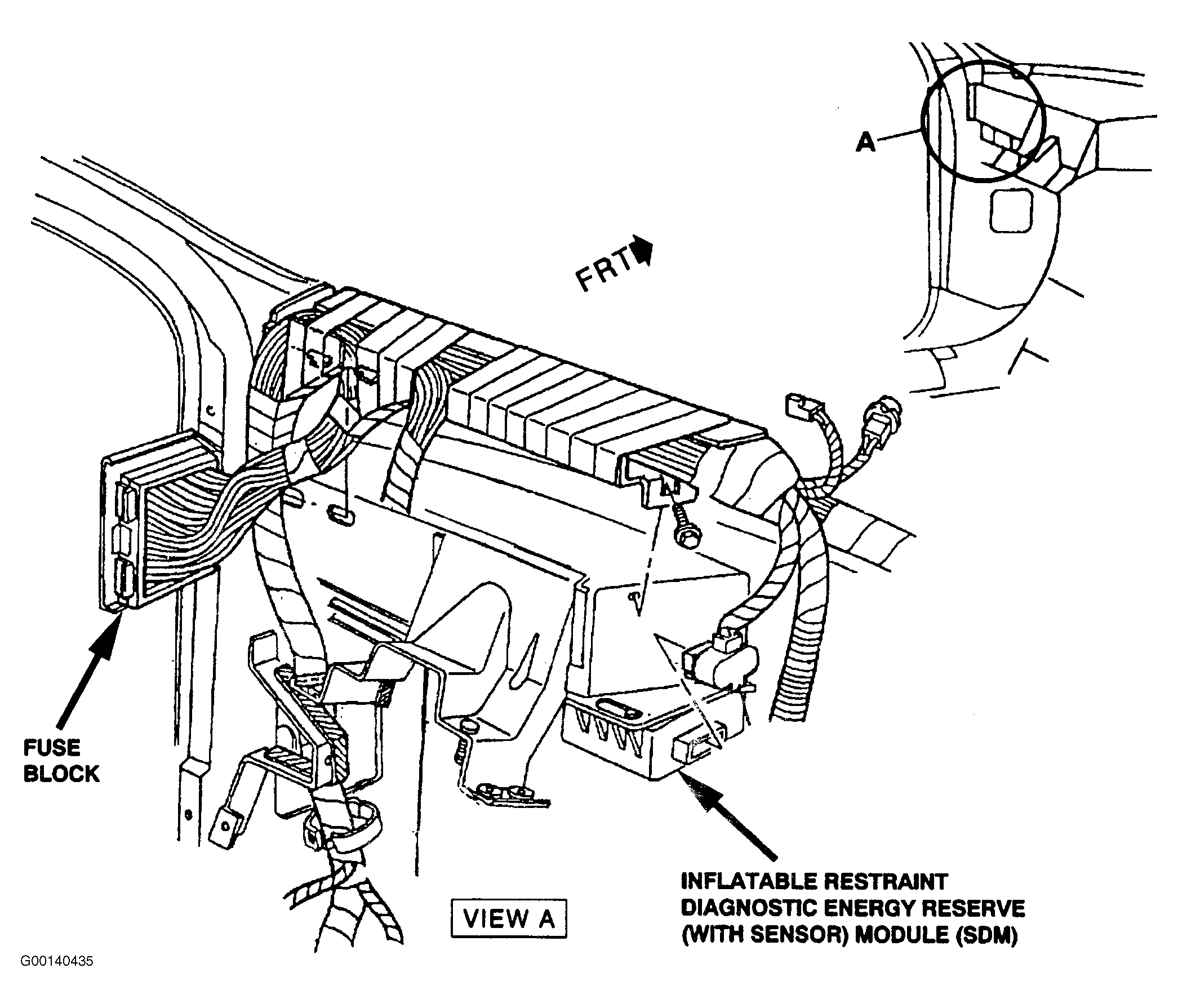

| Instrument Panel Fuse Block | Mounted In Left Of Instrument Panel, Accessible With Left Door Open. See Fig 2 |

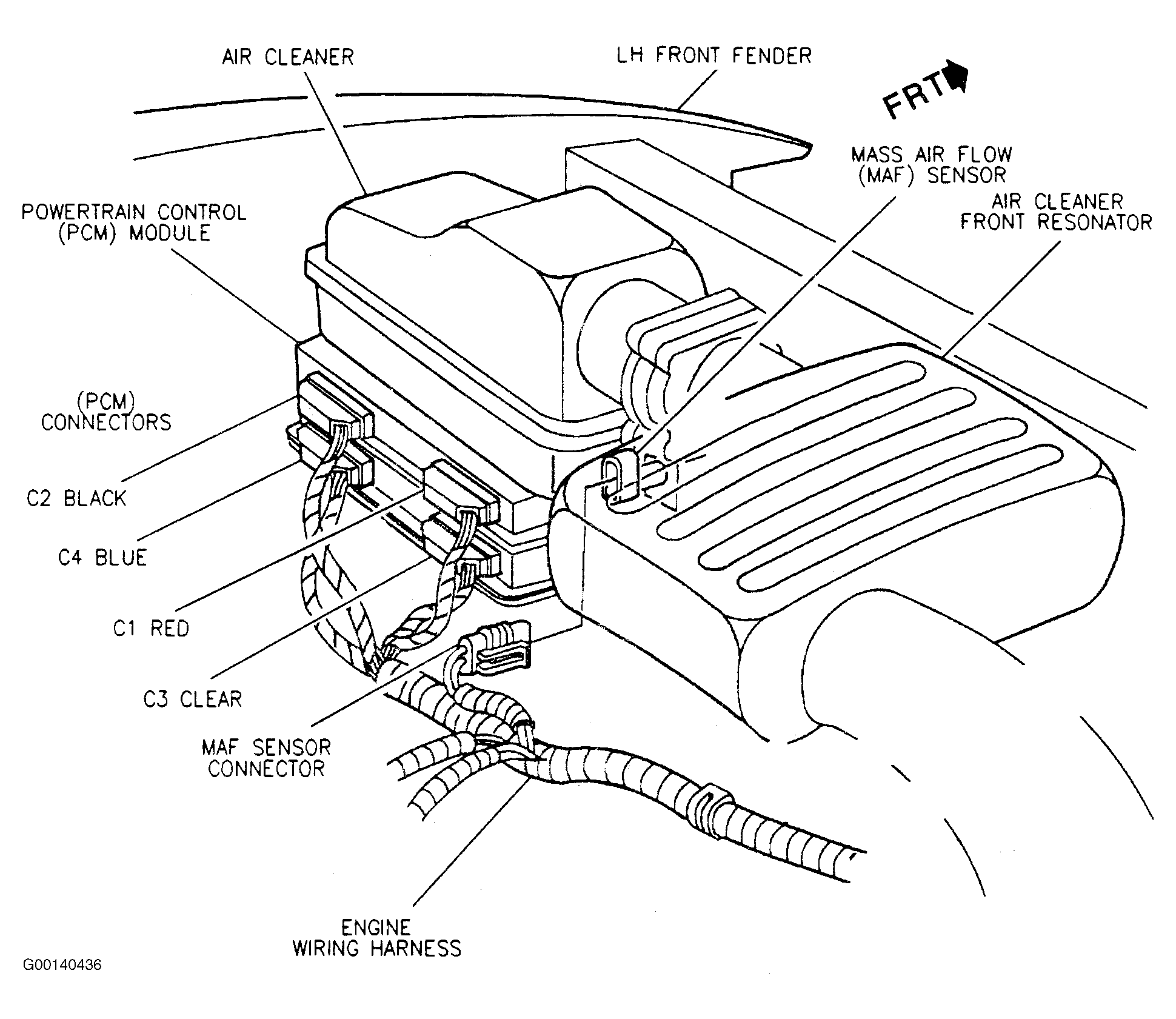

| Powertrain Control Module (PCM) | In Engine Compartment, Forward Of Left Wheelhouse, Under Air Cleaner. See Fig 3 |

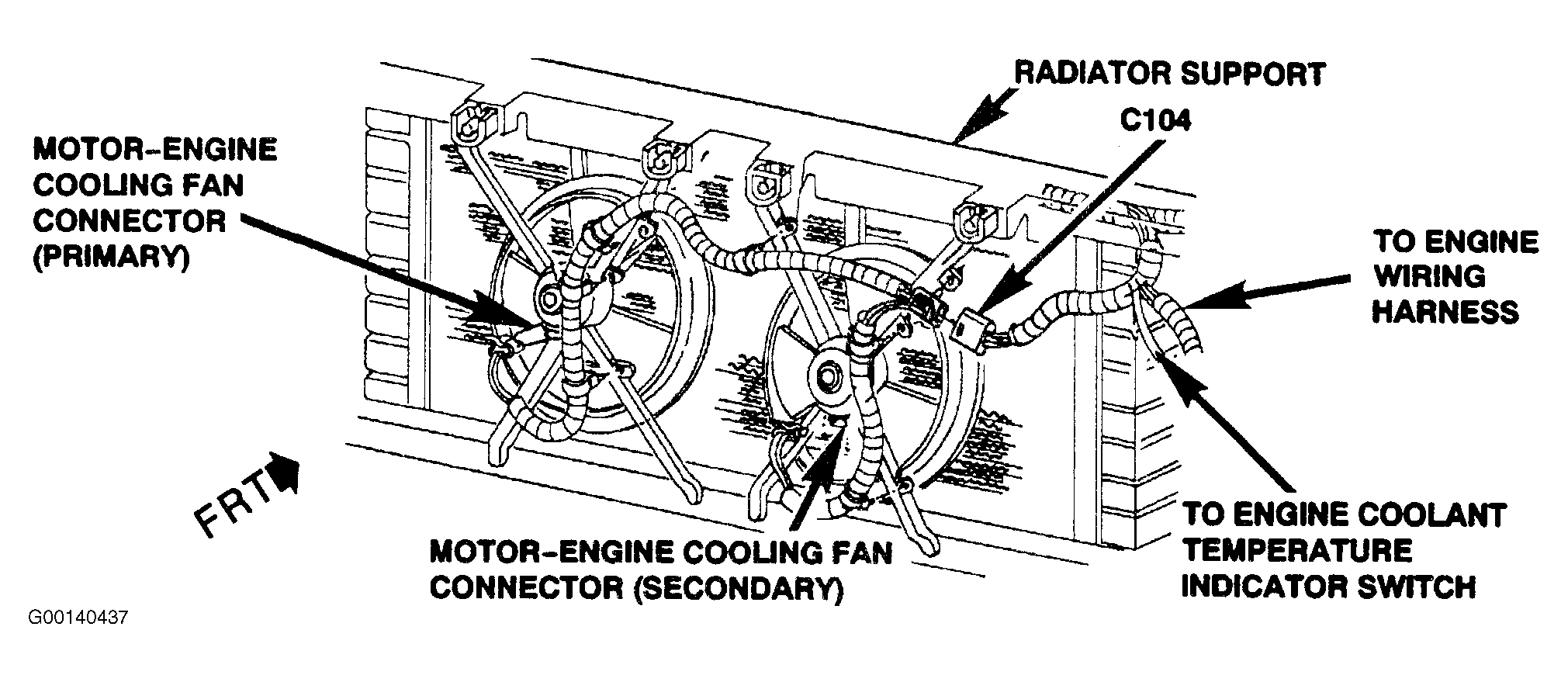

| Right Primary Engine Cooling Fan Electric Motor | Attached To Primary Cooling fan, Right Rear Side Of Radiator. See Fig 4 |

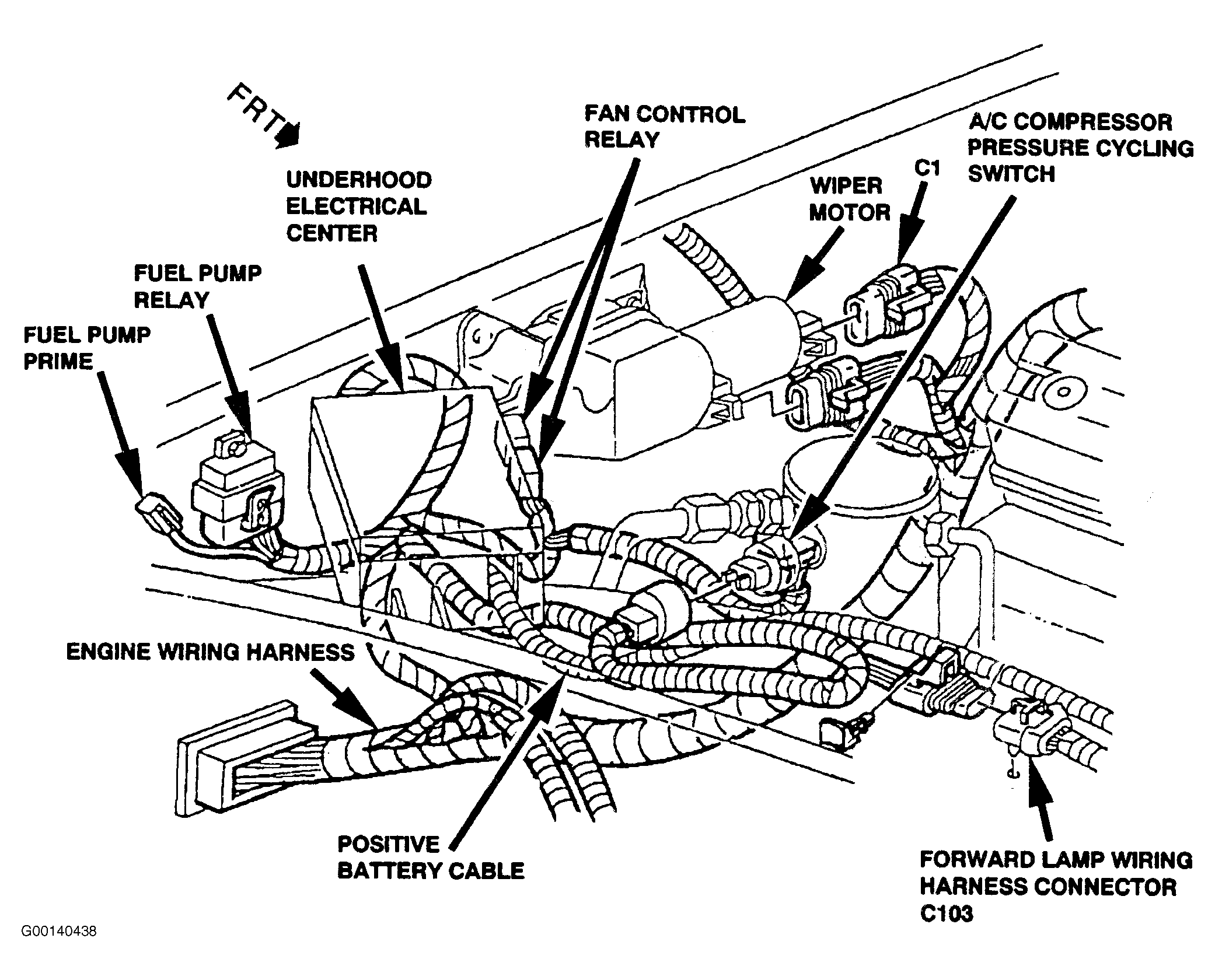

| Primary Cooling Fan Relay | Attached To Underhood Electrical Center. See Fig 5 |
| Secondary Cooling Fan Motor | Attached To Secondary Cooling Fan, Left Rear Side Of Radiator. See Fig 4 |
| Secondary Cooling Fan Relay | Attached To Underhood Electrical Center. See Fig 5 |
| Underhood Electrical Center | Right Side Of Engine Compartment, Mounted To Right Wheel House. See Fig 5 |
| C103 | F/L Harness To Engine Harness, Near Underhood Electrical Center. See Fig 5 |
| C104 | F/L Harness To Cooling Fans Jumper, Near Battery. See Fig 4 |
| C106 | F/L Harness To Cooling Fan Jumper Harness Approximately 44 cm From Connector C102 |

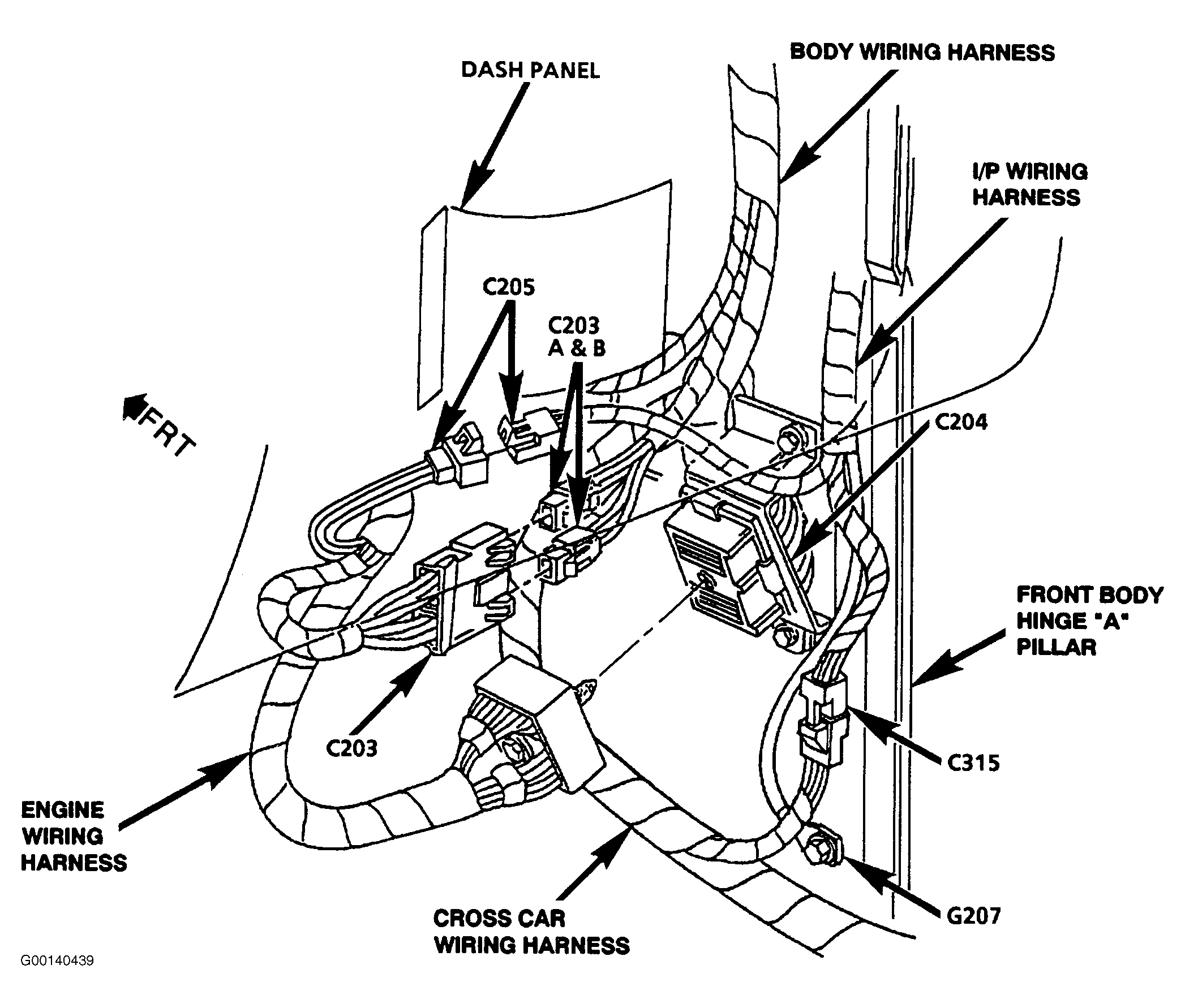

| C204 | Engine Harness To body Harness Behind Right Instrument Panel, Between Blower Motor & Instrument Panel Compartment. See Fig 6 |

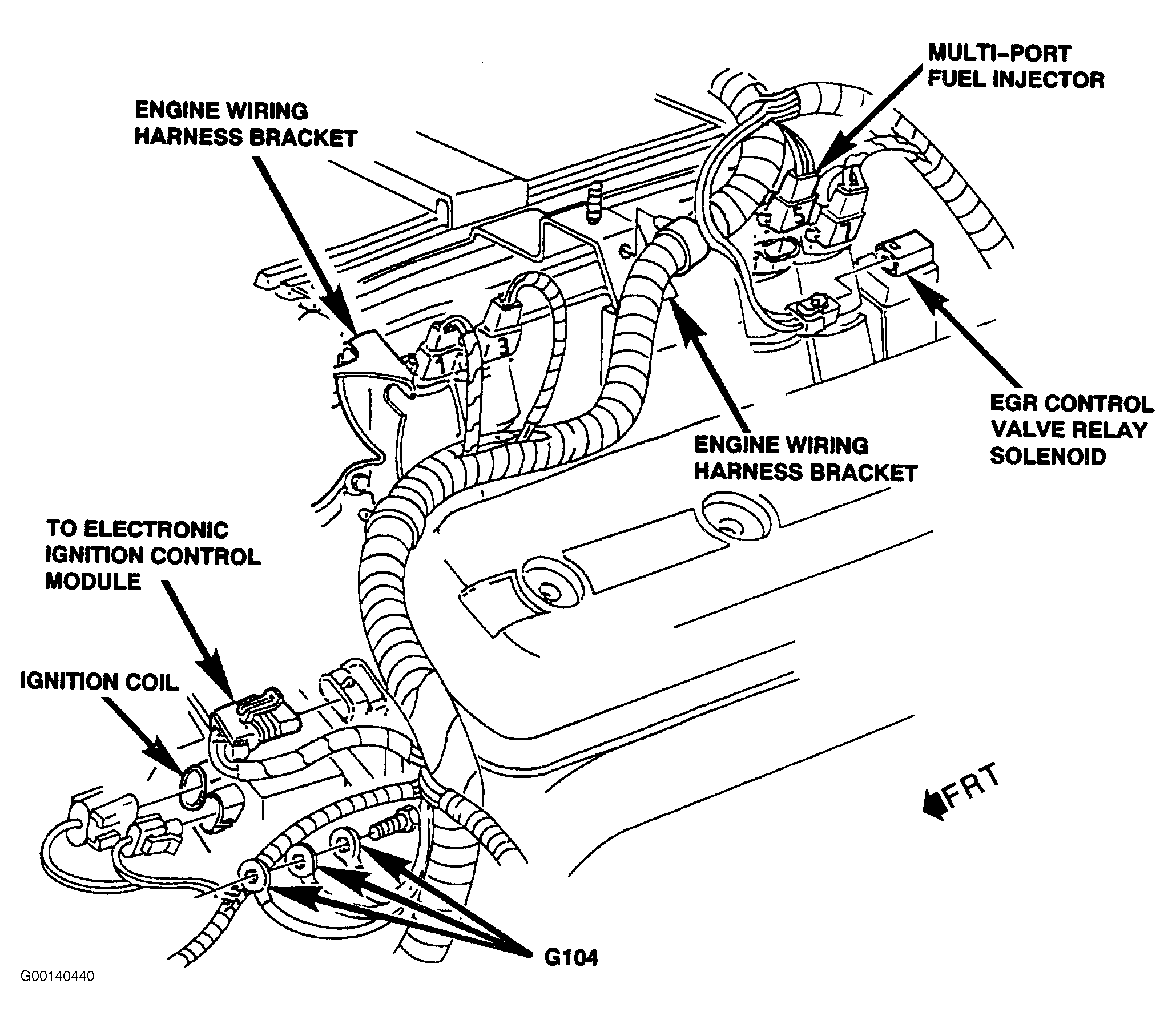

| G104 | Front Of Left Cylinder Head. See Fig 7 |
| G106 | Behind Right Headlamp, Attached To Radiator Support |

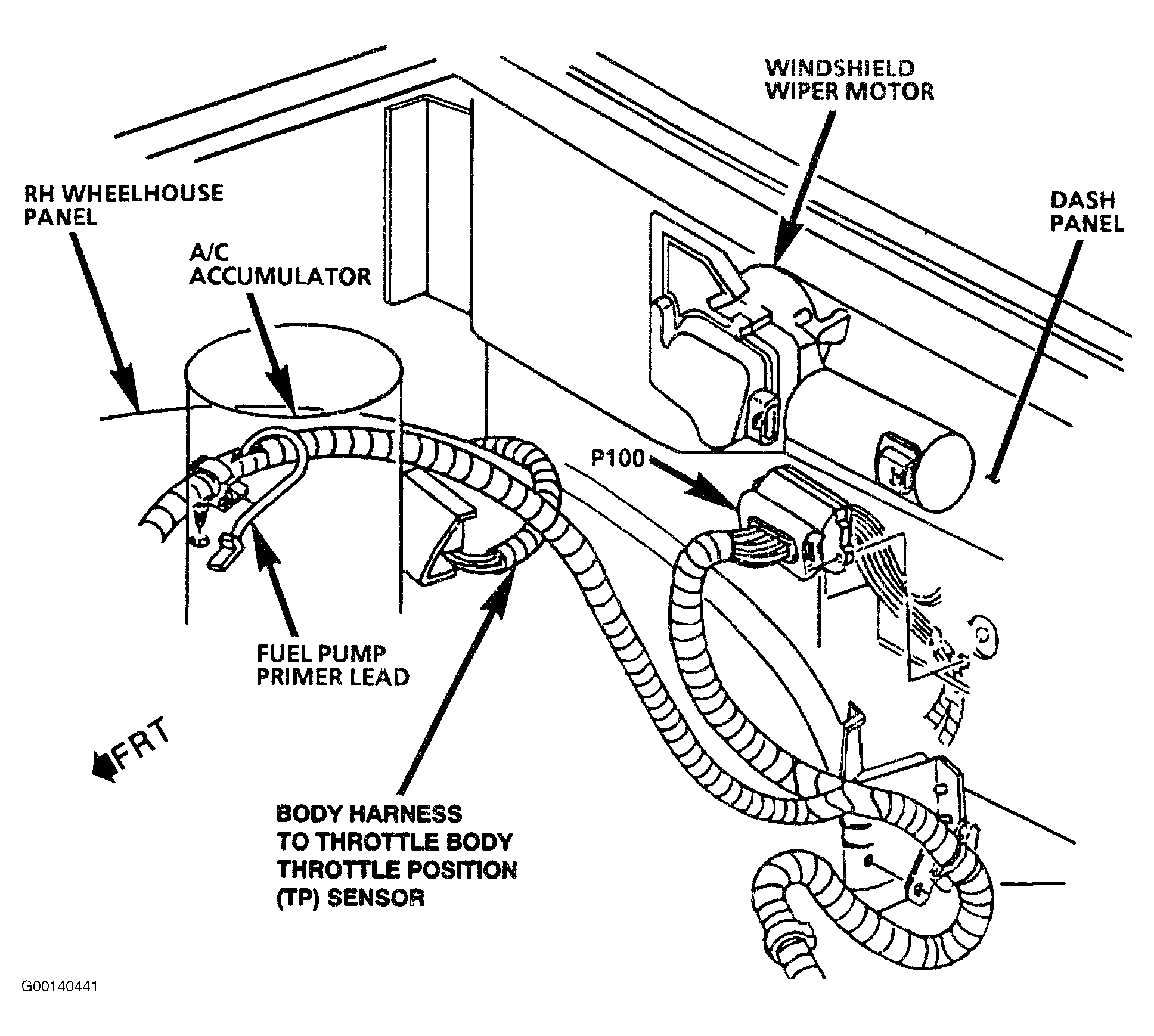

| P100 | Right Rear Of engine Compartment, through Dash Panel, Below Windshield Wiper Motor. See Fig 8 |
| S131 | Engine Harness, Approximately 7 cm From Underhood Electrical Center |
| S268 | Engine Harness Approximately 15 cm From C204, Before P100 |
