Charging Systems: Overhaul

NOTE: CS144 generator is serviced by replacement only.

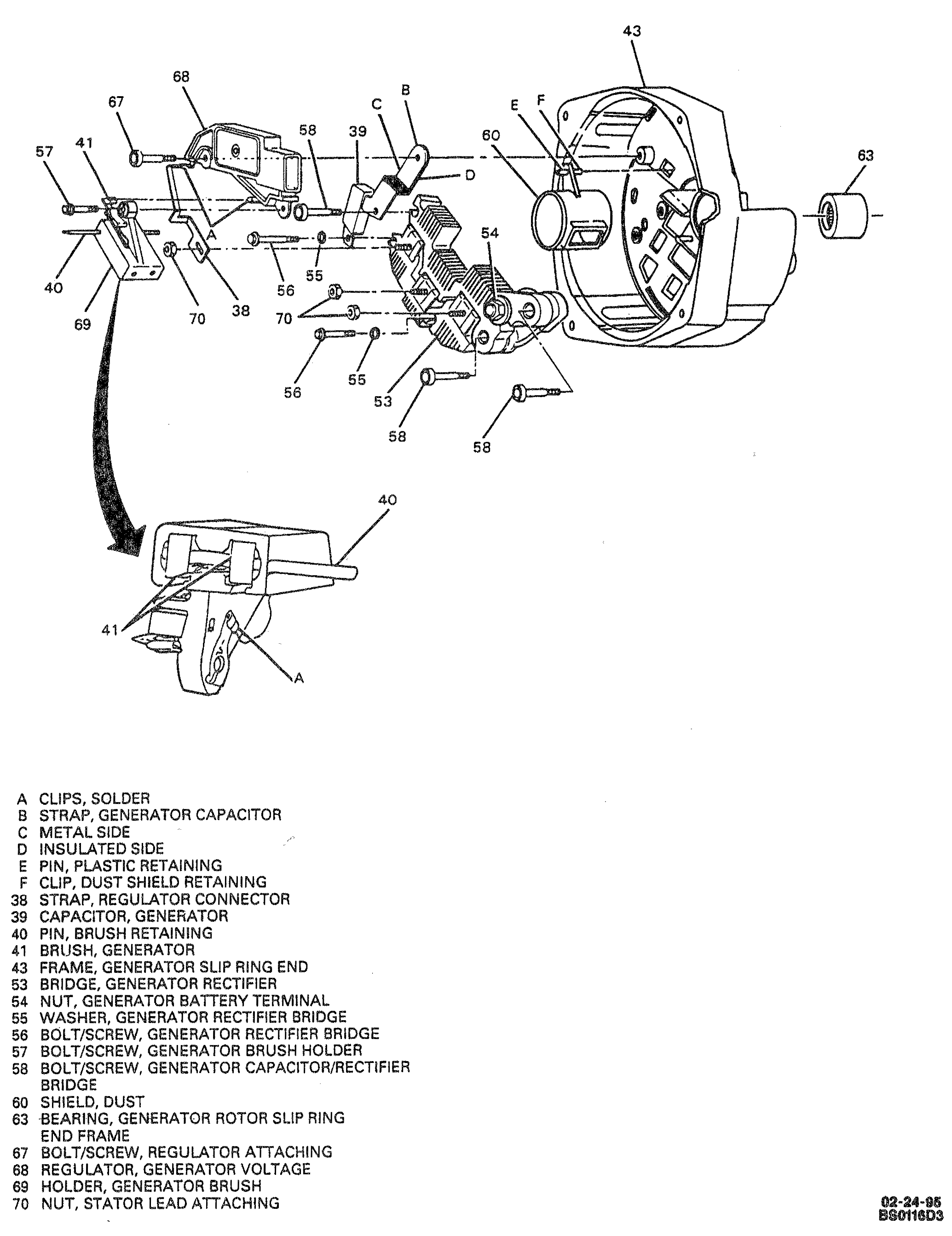

Fig 1: Exploded View Of Generator

G00403526

Courtesy of GENERAL MOTORS CORP.
