Brake Pressure Modulator Valve Assembly: Installation

To install, reverse removal procedure. Tighten BPMV assembly mounting nuts to specification. See TORQUE SPECIFICATIONS  . Refill brake master cylinder, bleed brakes and check for leaks. See BLEEDING BRAKE SYSTEM  . Refill cooling system.

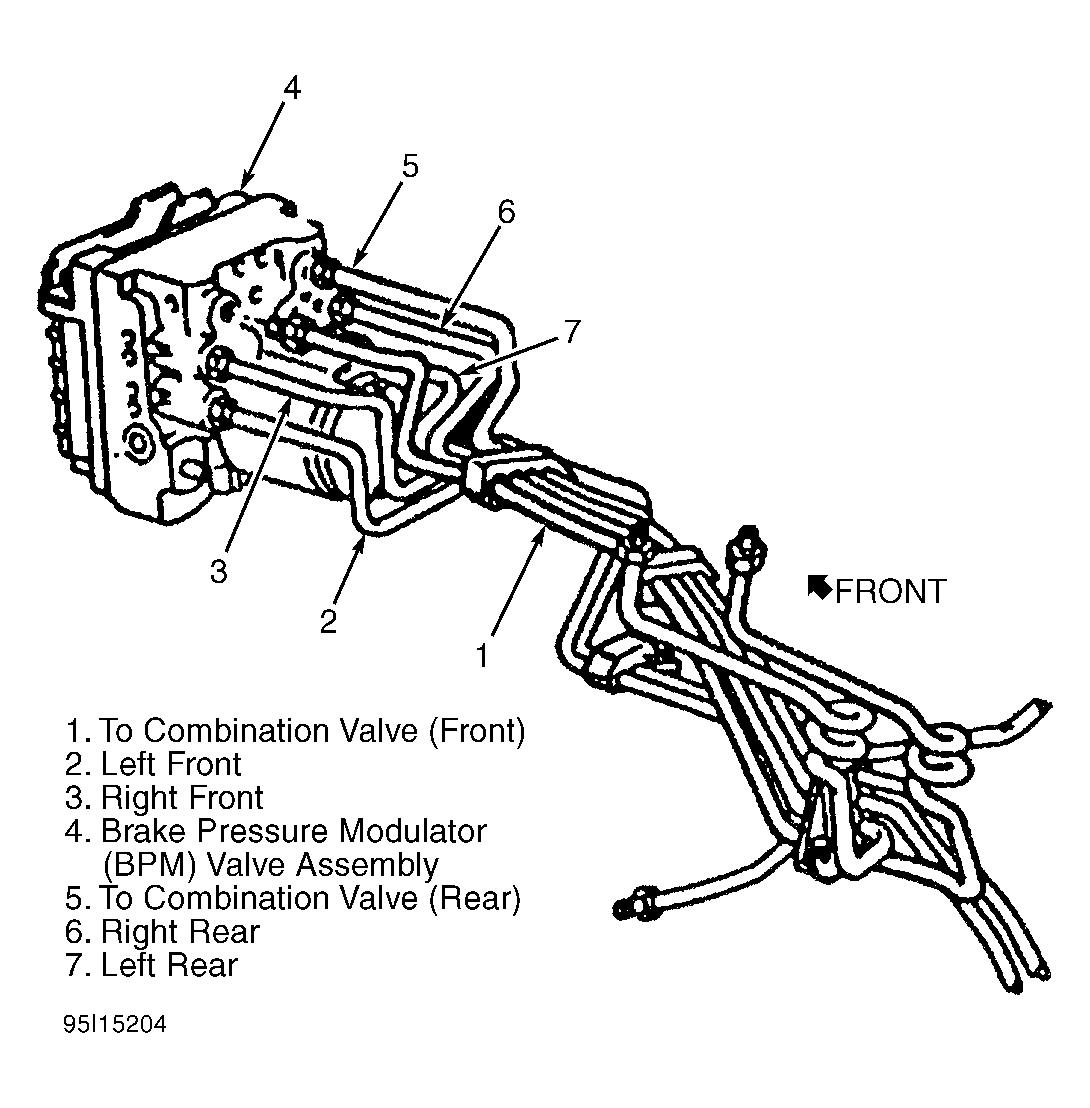

Fig 1: Identifying Brakeline Positions
G95I15204Courtesy of GENERAL MOTORS CORP.
