Cruise Control Cable
NOTE:
Throttle cable must be adjusted before adjusting cruise control cable.

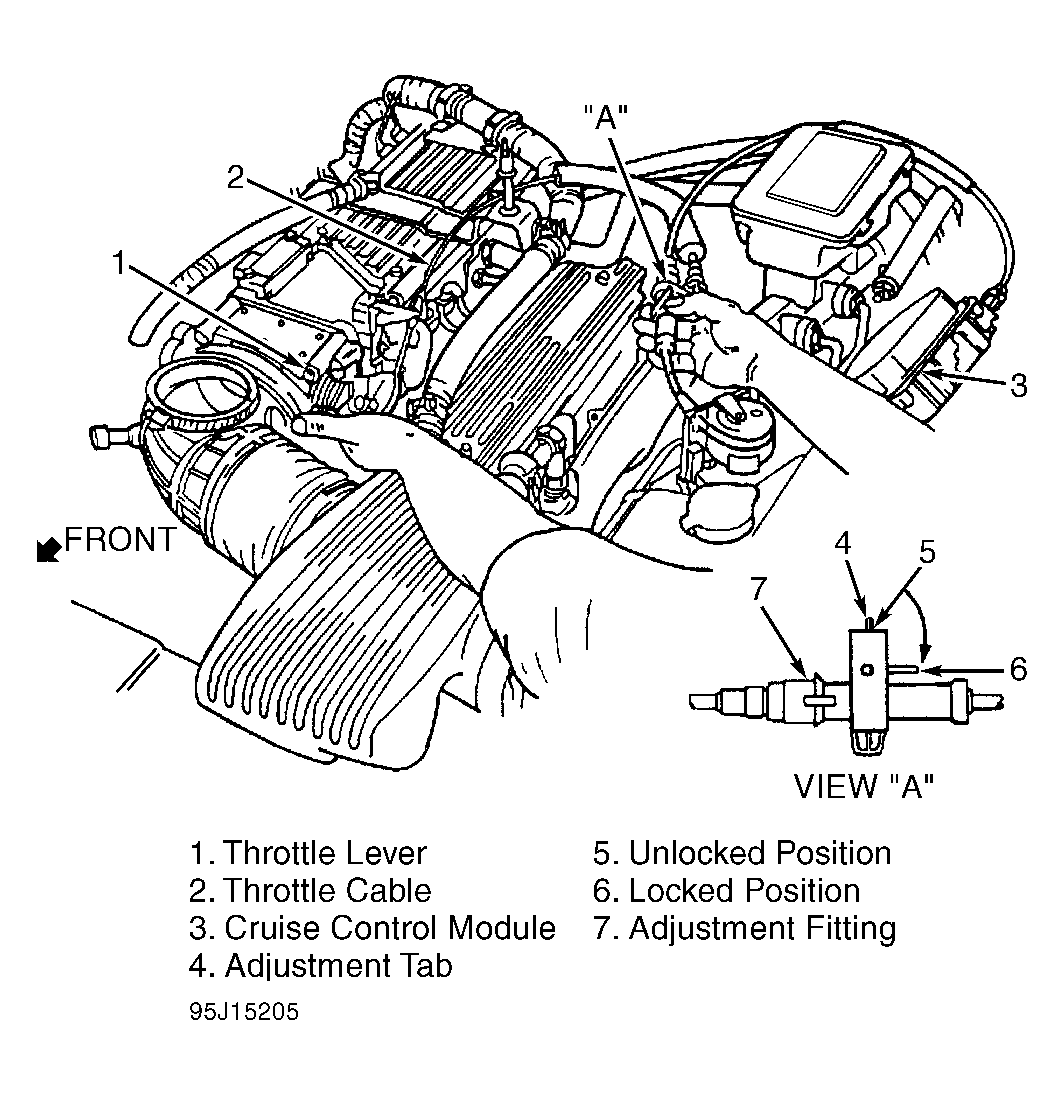

Flip adjustment tab up, to unlocked position. See Fig 1 . Hold throttle lever, and move adjustment fitting away from adjuster until all slack is removed (before throttle moves). Flip adjustment tab down, to locked position. If cable is adjusted properly, cable free play should be 0-.078" (0-2 mm). If cable free play is not 0-.078" (0-2 mm), repeat adjustment procedure.
