Brake Pressure Modulator Valve: Installation

1. To install, reverse removal procedure. Ensure EBTCM electrical connector tab is locked down. Tighten components to specification. See TORQUE SPECIFICATIONS . Refill brake master cylinder, bleed brakes and check for leaks. See AUTO BLEED PROCEDURE  under BLEEDING BRAKE SYSTEM.
2. Using Tech 1, select F4: MISC TESTS and then F1: AUTO TEST. Check if any Diagnostic Trouble Code(s) (DTCs) have set, and repair as necessary.

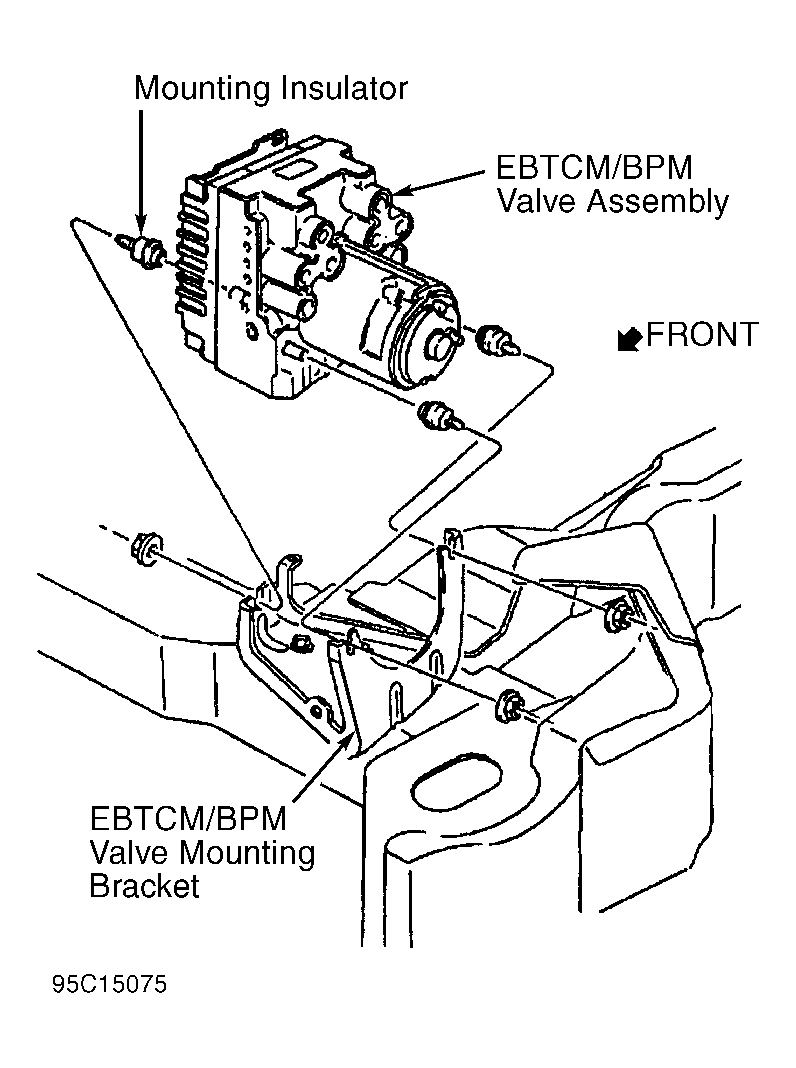

Fig 1: Removing Brake Pressure Modulator (BPM) Valve

Courtesy of GENERAL MOTORS CORP.
