Test G - Motor Position Sensor PINOUT

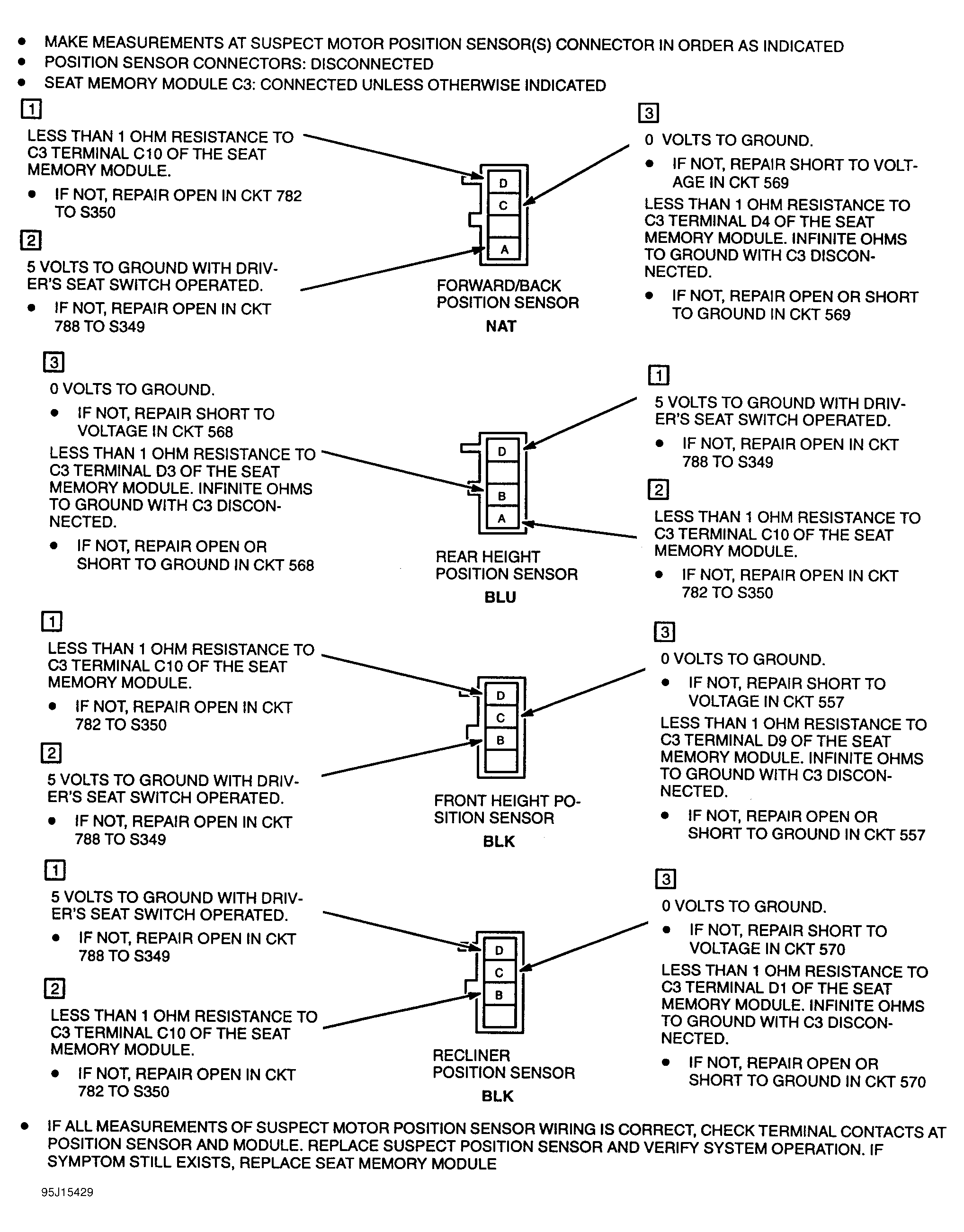

Fig 1: Test G - Motor Position Sensor Pinout

G95J15429

Courtesy of GENERAL MOTORS CORP.
