Test C - Memory Seat Module C3 PINOUT

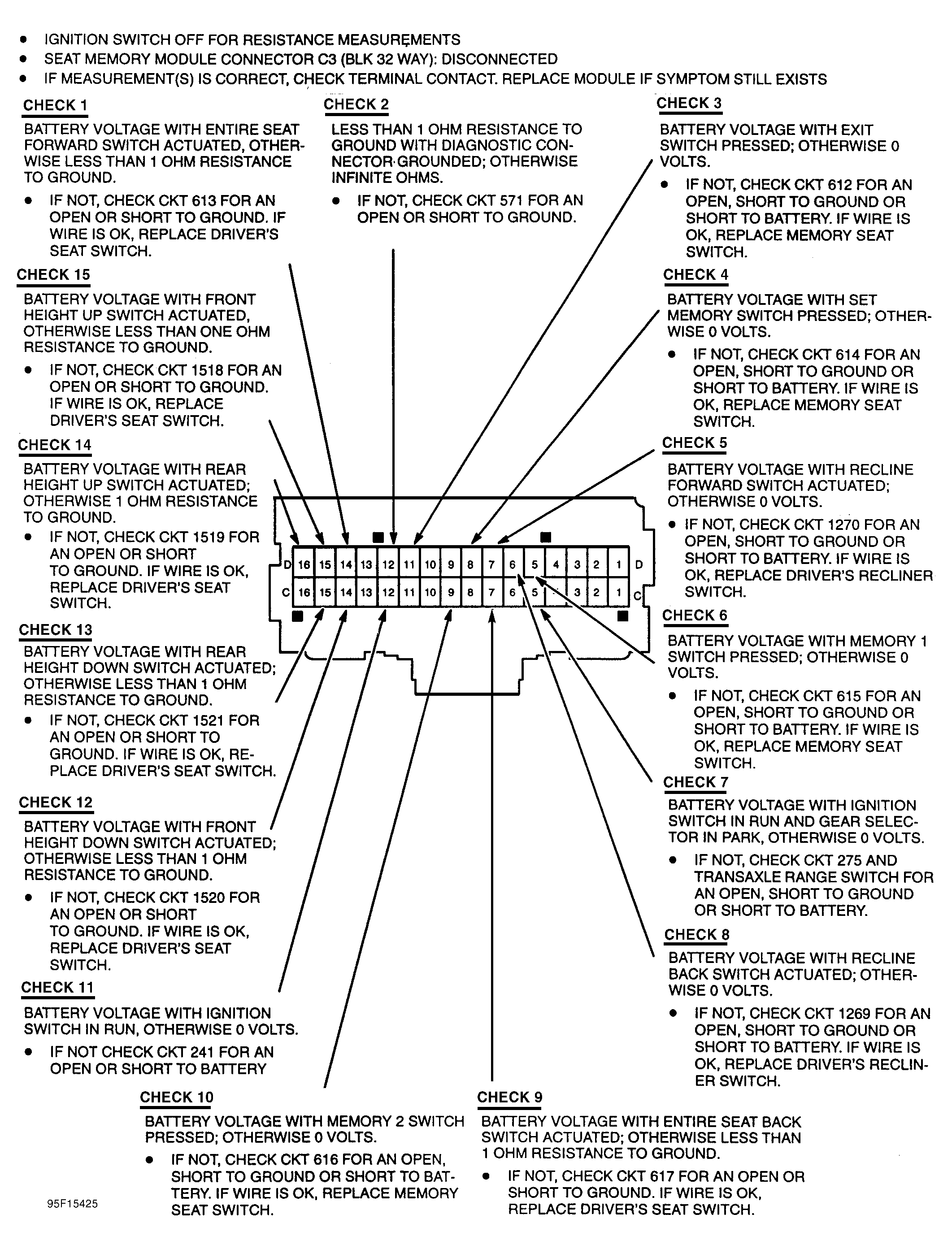

Fig 1: Test C - Memory Seat Module C3 Pinout
G95F15425Courtesy of GENERAL MOTORS CORP.
