Test B - Memory Seat Switch Isolation

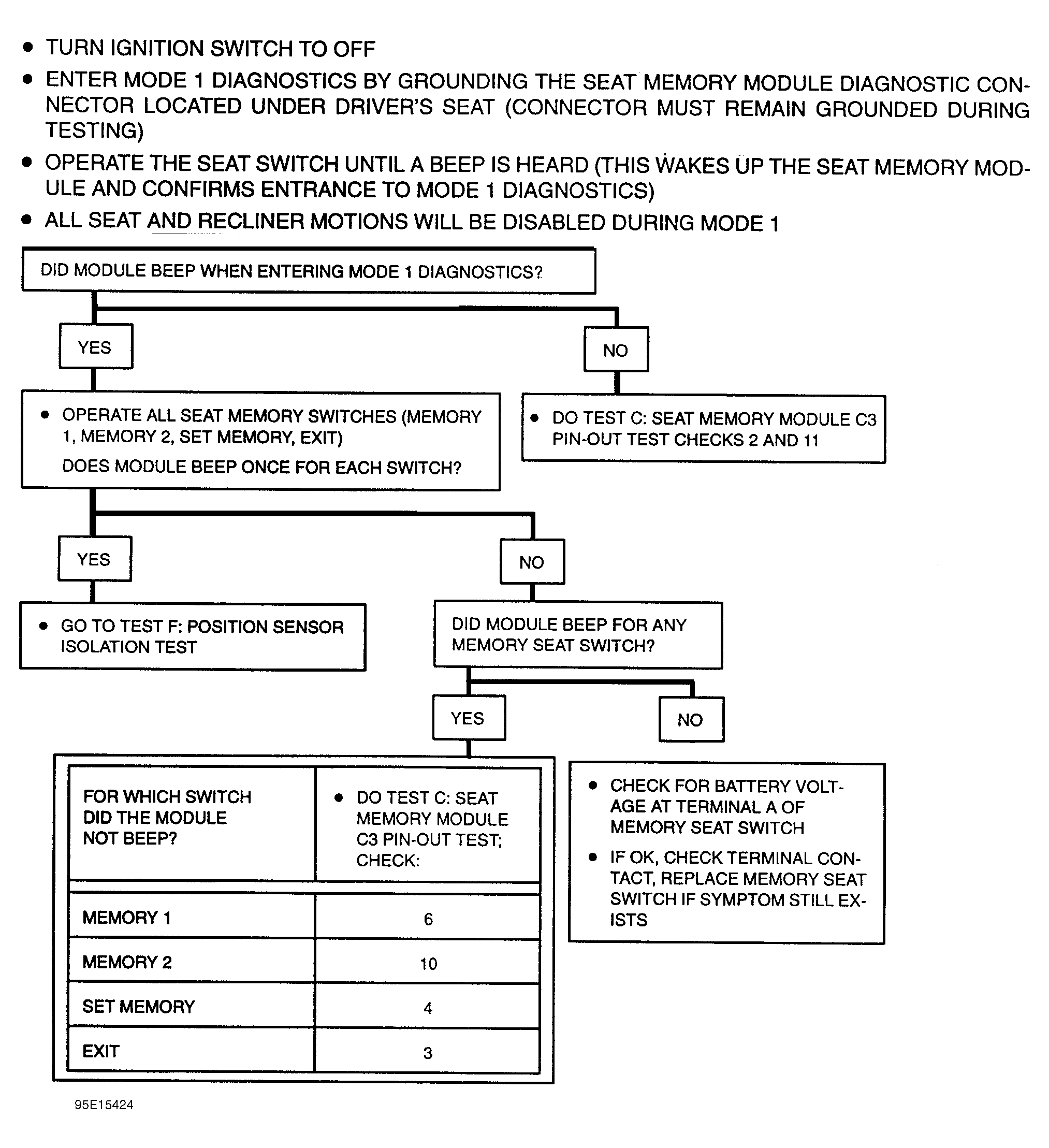

Fig 1: Test B - Memory Seat Switch Isolation

G95E15424

Courtesy of GENERAL MOTORS CORP.
