Test F - Position Sensor Isolation

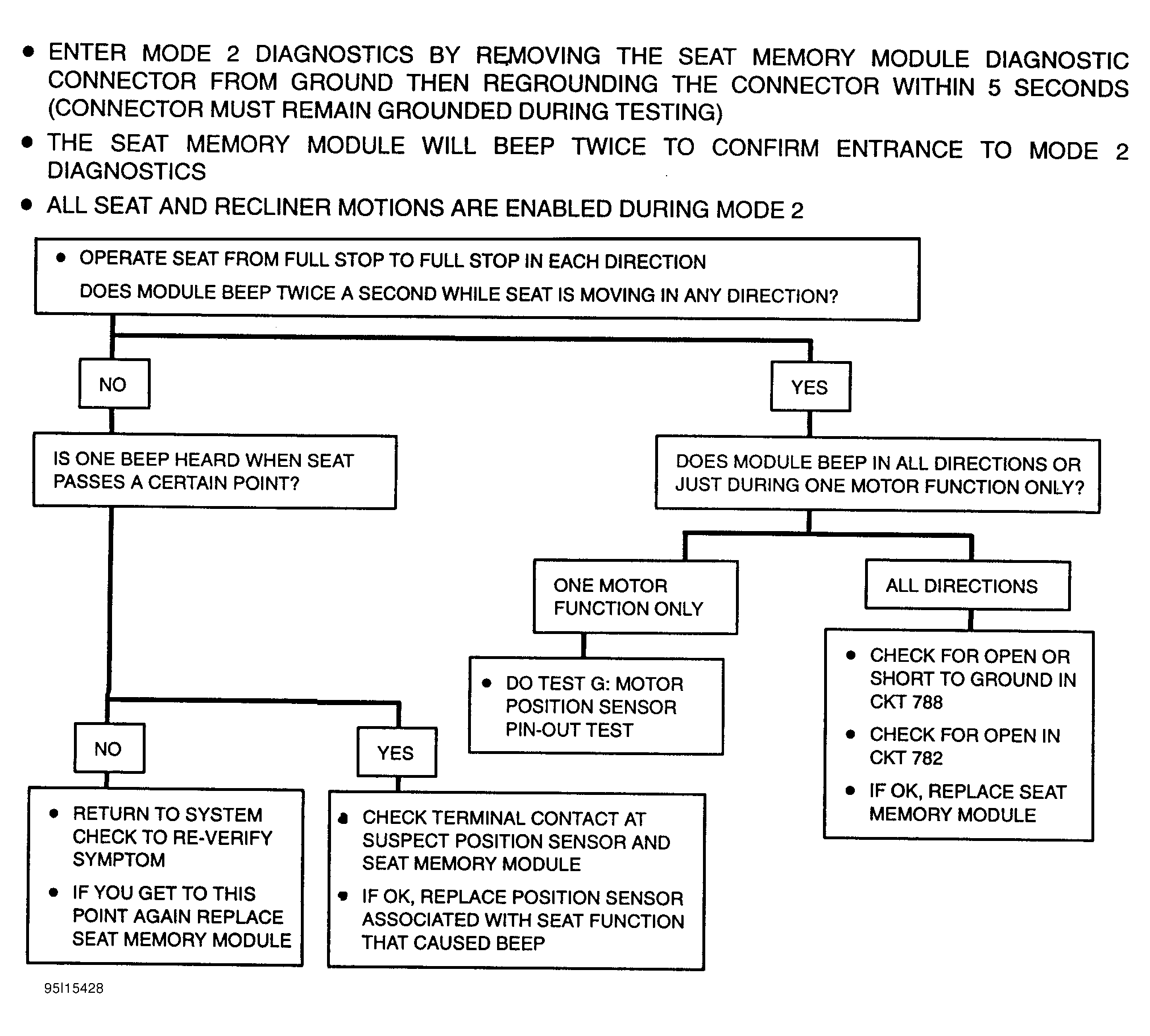

Fig 1: Test F - Position Sensor Isolation

G95I15428

Courtesy of GENERAL MOTORS CORP.
