Diagnostic Aids

Code will set if PCM detects one of 2 illegal combinations. Check all connections for good contact.

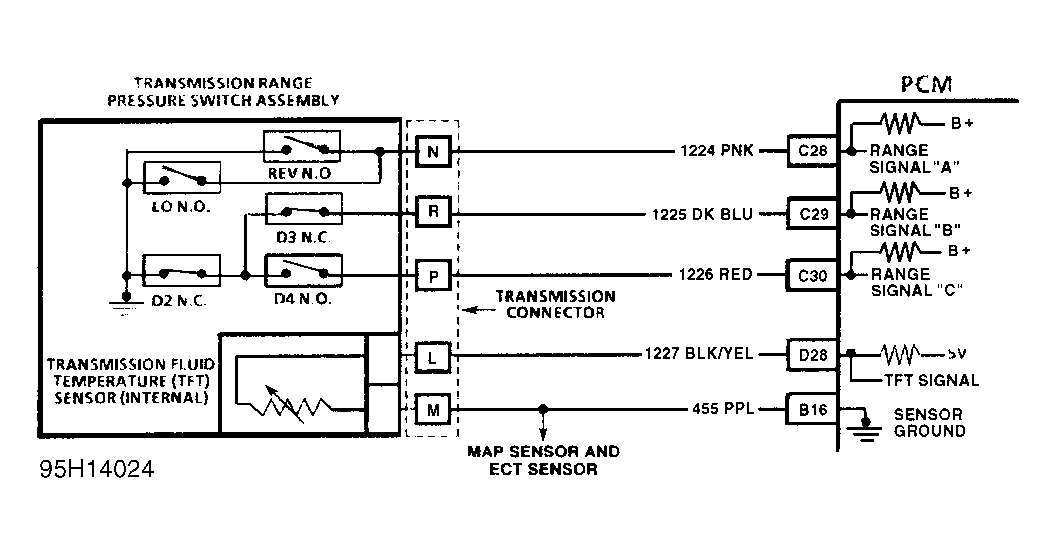

Fig 1: Code 28 Schematic (Fleetwood) Transmission Range Pressure Switch

Fig 2: Code 28 Diagnostic Flow Chart (Fleetwood) Transmission Range Pressure Switch
