Diagnostic Aids

Check related harness connectors, including PCM harness. Check for damaged or pushed out terminals.

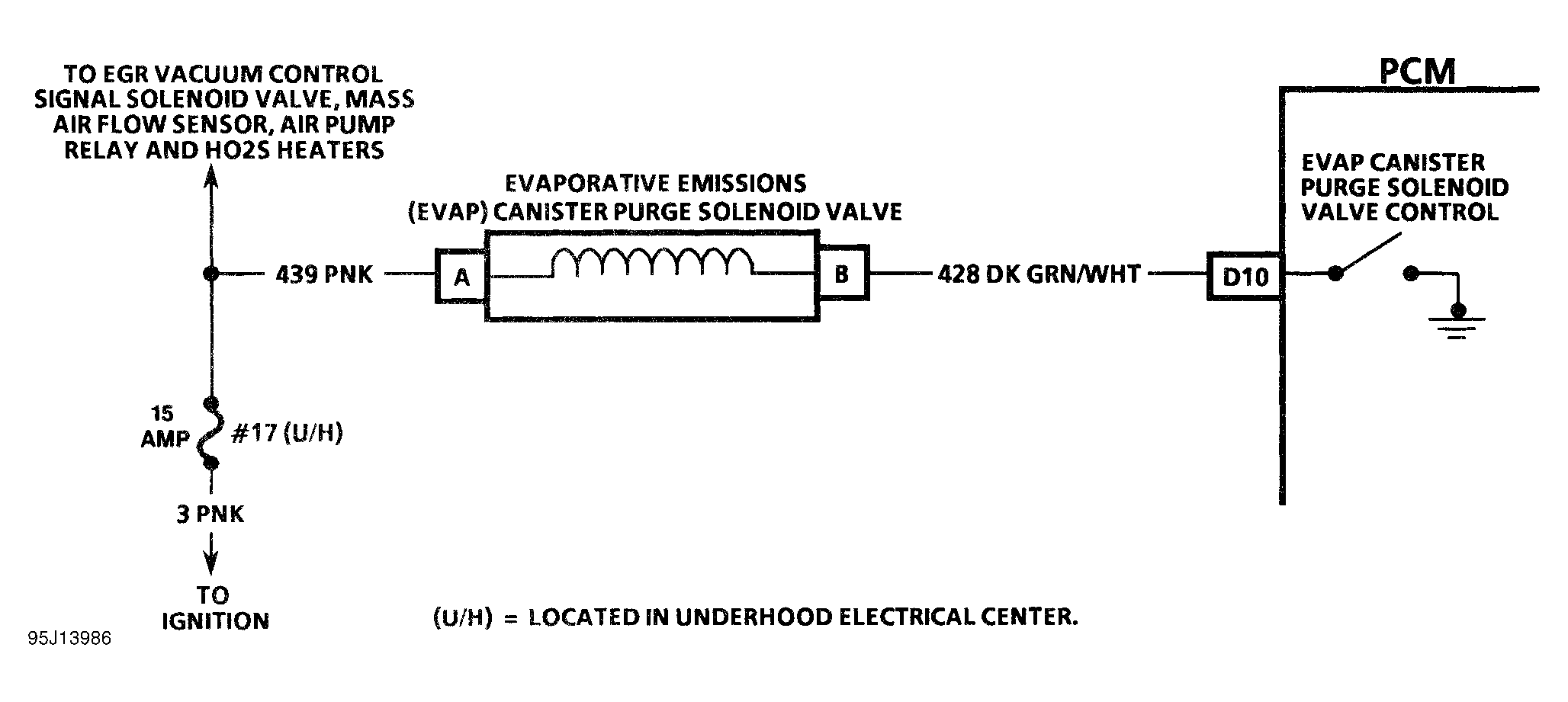

Fig 1: Code 26 Schematic (Fleetwood) Canister Purge Solenoid
G95J13986
Fig 2: Code 26 Diagnostic Flow Chart (Fleetwood) Canister Purge Solenoid
G95G13983
