Wiring Diagrams

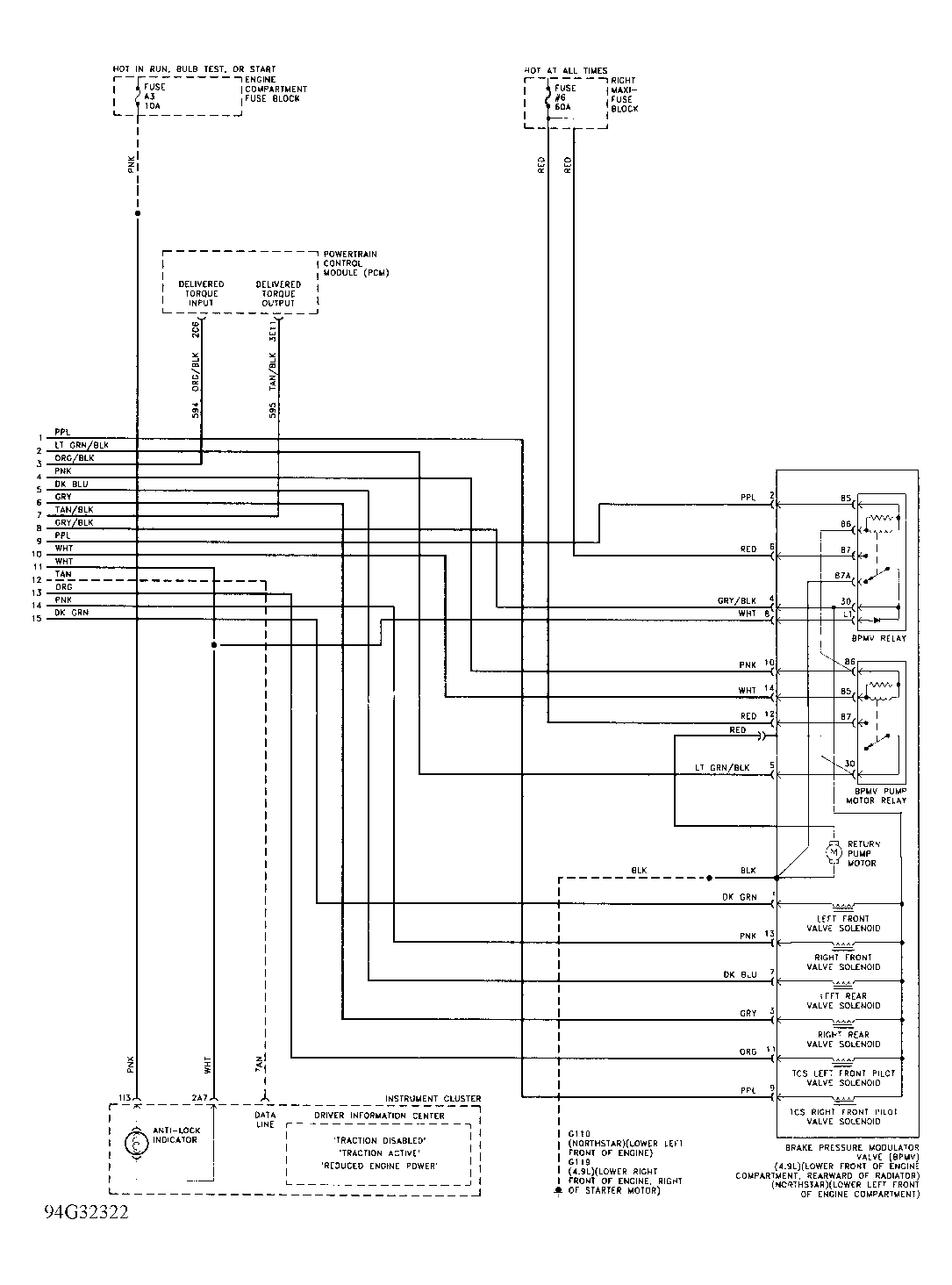

Fig 1: Anti-Lock Brake System Wiring Diagram (4.6L - 1 Of 2)
Fig 2: Anti-Lock Brake System Wiring Diagram (4.6L - 2 Of 2)
Fig 3: Anti-Lock Brake System Wiring Diagram (4.9L)
